Siemens SIPROTEC 5 V8.83 User Manual

Input Module IO216
Description
The terminals for the following are located on the input and output module IO216:
•
16 special binary inputs with maximized robustness against electrical disturbances and failures
The connections are distributed over:
•
3 x 14-pole voltage terminal
Terminals

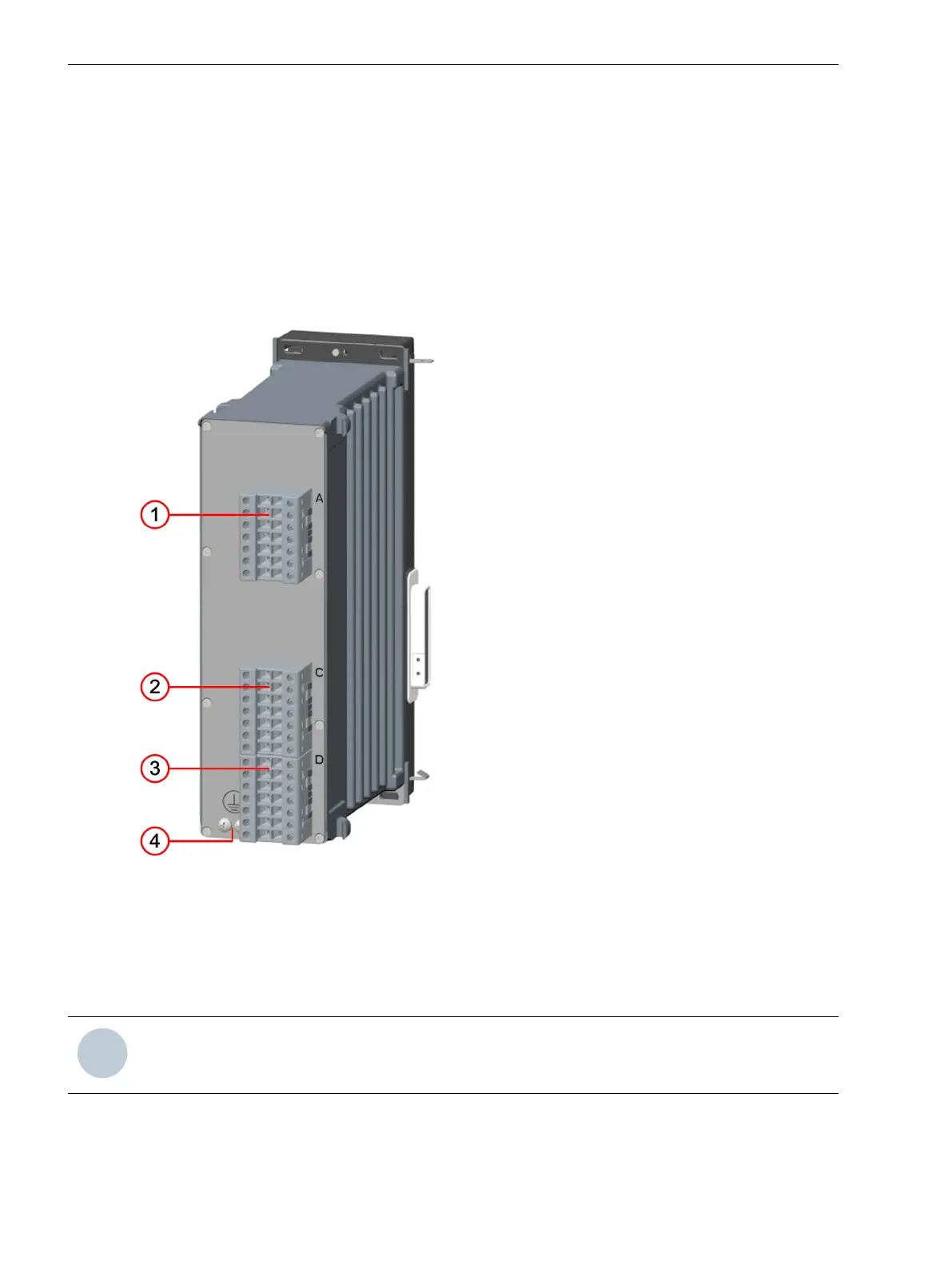

[dwio204p-201112-01.tif, 2, --_--]
Figure 3-57
IO216 – Terminals
(1) Voltage terminal xA
(2) Voltage terminal xC
(3) Voltage terminal xD
(4) Protective grounding terminals
i
i
NOTE
x corresponds to the slot in the 19-inch rack.
3.2.16
3.2.16.1
3.2.16.2
Electronic Modules
3.2 Input and Output Modules of the Modular Devices
102 SIPROTEC 5, Hardware Description, Manual
C53000-G5040-C002-M, Edition 12.2021
