[td_io111, 1, en_US]

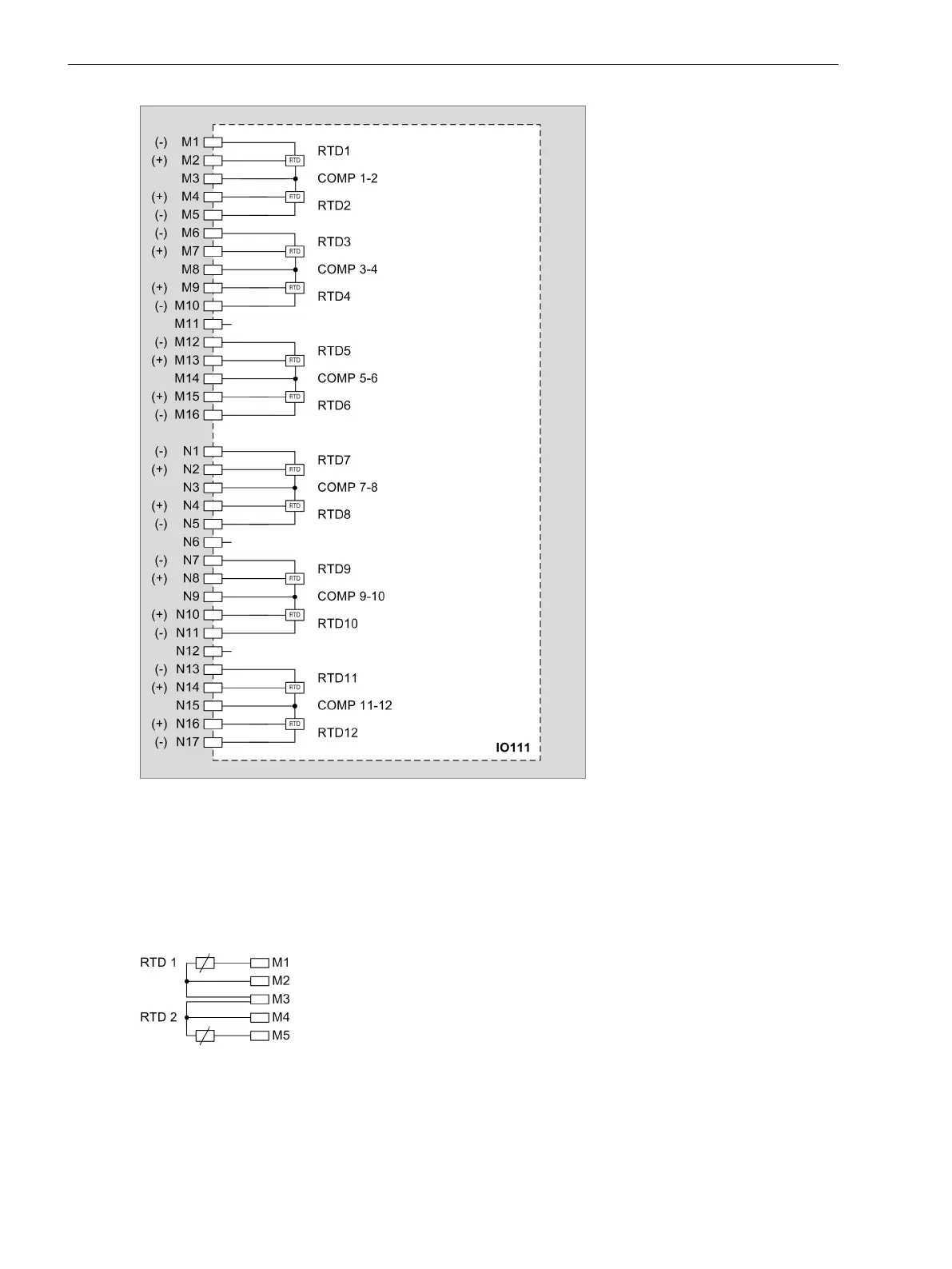

Figure 3-94
IO111 – Connection Diagram
Connections of Temperature Sensors and Cables
Connections of Temperature Sensors Directly to the Device
It is possible in principle to connect temperature sensors with 2-core or 3-core technology. To achieve the
specified accuracy, Siemens recommends only using 3-core technology.
[dw_example_temp_sensor_3phase, 2, en_US]
Figure 3-95 Example: Connecting Temperature Sensors RTD 1 (3-Core Terminal) and RTD 2 (3-Core
Terminal) to Terminals M1 to M5
²
For a connection with 2-core technology, you must connect a bridge, for example for RTD 2, between M3
and M4.
3.4.6.3
Electronic Modules
3.4 Input and Output Modules of Non-Modular Devices (7xx81, 7xx82)
144 SIPROTEC 5, Hardware Description, Manual
C53000-G5040-C002-M, Edition 12.2021
