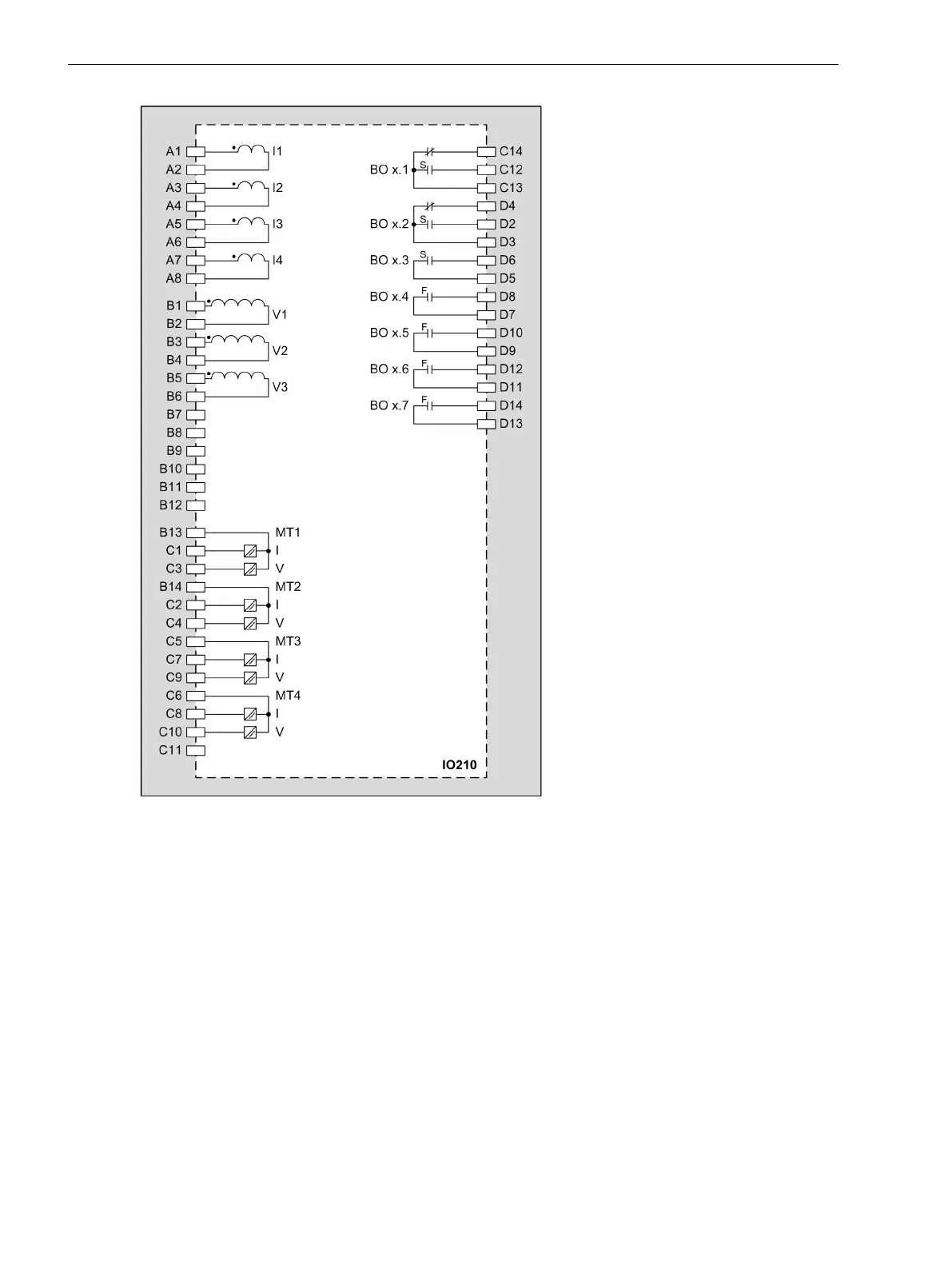

Figure 3-47
IO210 – Connection Diagram
Input and Output Module IO211
Description
The terminals for the following are located on the input and output module IO211:
•
8 voltage inputs
•
8 binary inputs
The connections are distributed over three 14-pole voltage terminals.
