Terminal and Connection Diagram
For the binary inputs and outputs, the x corresponds to the slot in the 19-inch rack.
[cd_io210, 3, en_US]

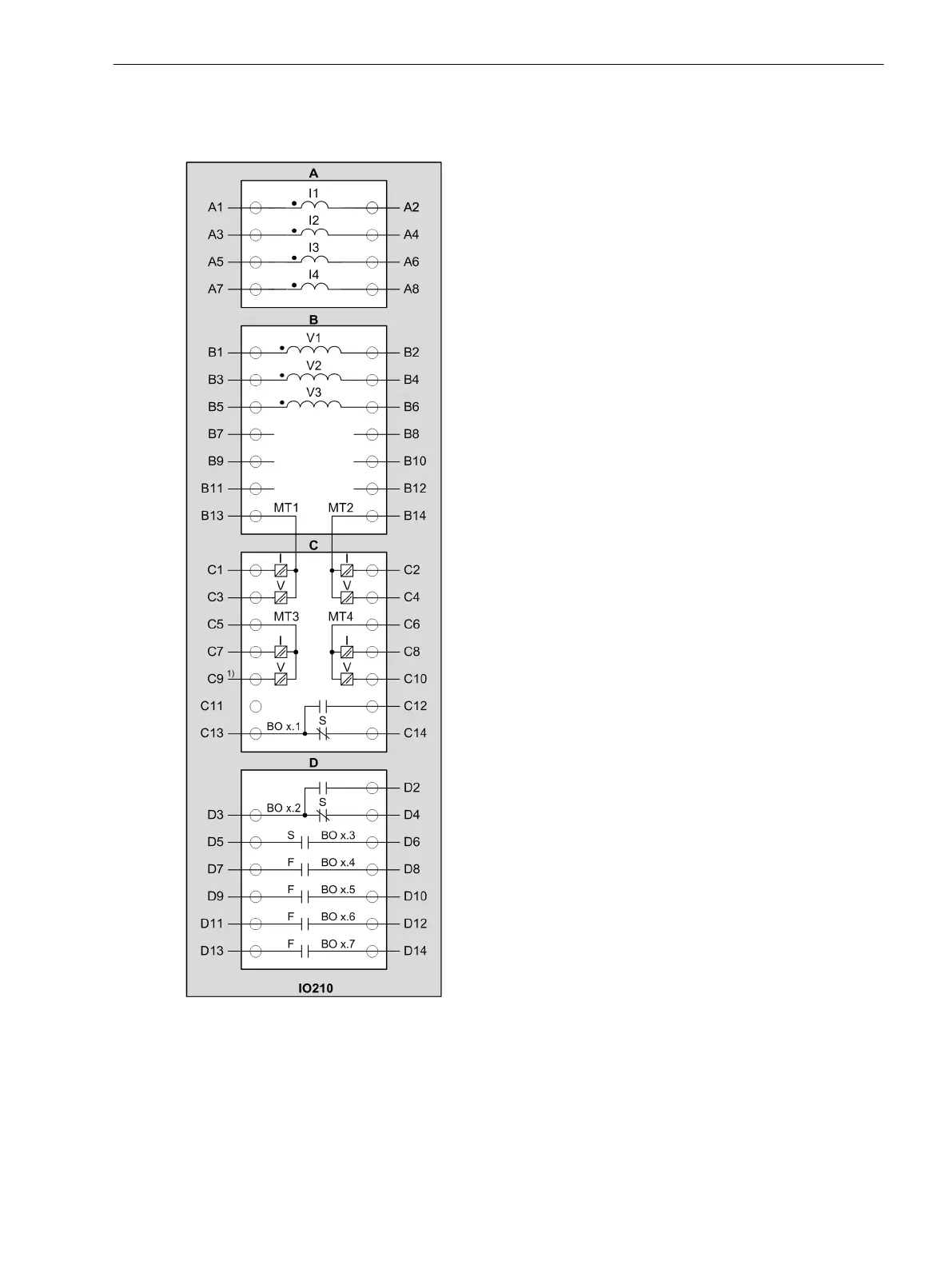

Figure 3-46
IO210 – Terminal Diagram
(1) Voltage input MT3 with higher voltage immunity (maximum continuous voltage ± 60 V)
