Surface-Mounted Devices with Integrated On-Site Operation Panel
Description of the Modular Device
i
i
NOTE
The basic device structure is described in chapter 2.1.1 Description .
The surface-mounting devices with integrated on-site operation panel were conceived for fitting on a flat wall
surface. The on-site operation panel is fastened on the device with a distance frame. The distance frame
creates the necessary wiring space for the cable connections.
Base Module
[le_device mounting, 2, --_--]

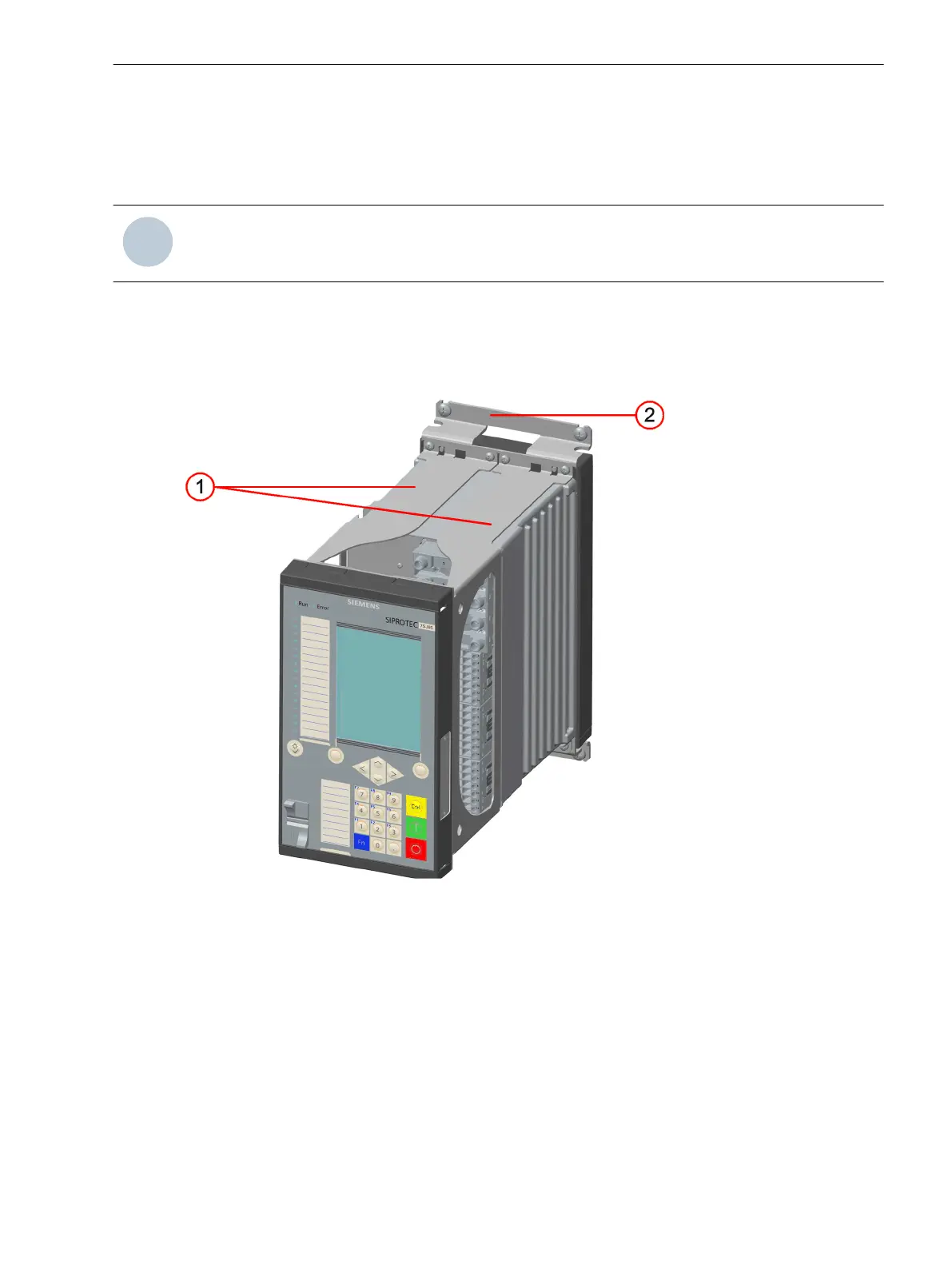

Figure 2-11
Device Structure
(1) Outer distance frame
(2) Fixing bracket
2.2
2.2.1
Forms of Devices and On-Site Operation Panels
2.2 Surface-Mounted Devices with Integrated On-Site Operation Panel
SIPROTEC 5, Hardware Description, Manual 29
C53000-G5040-C002-M, Edition 12.2021
