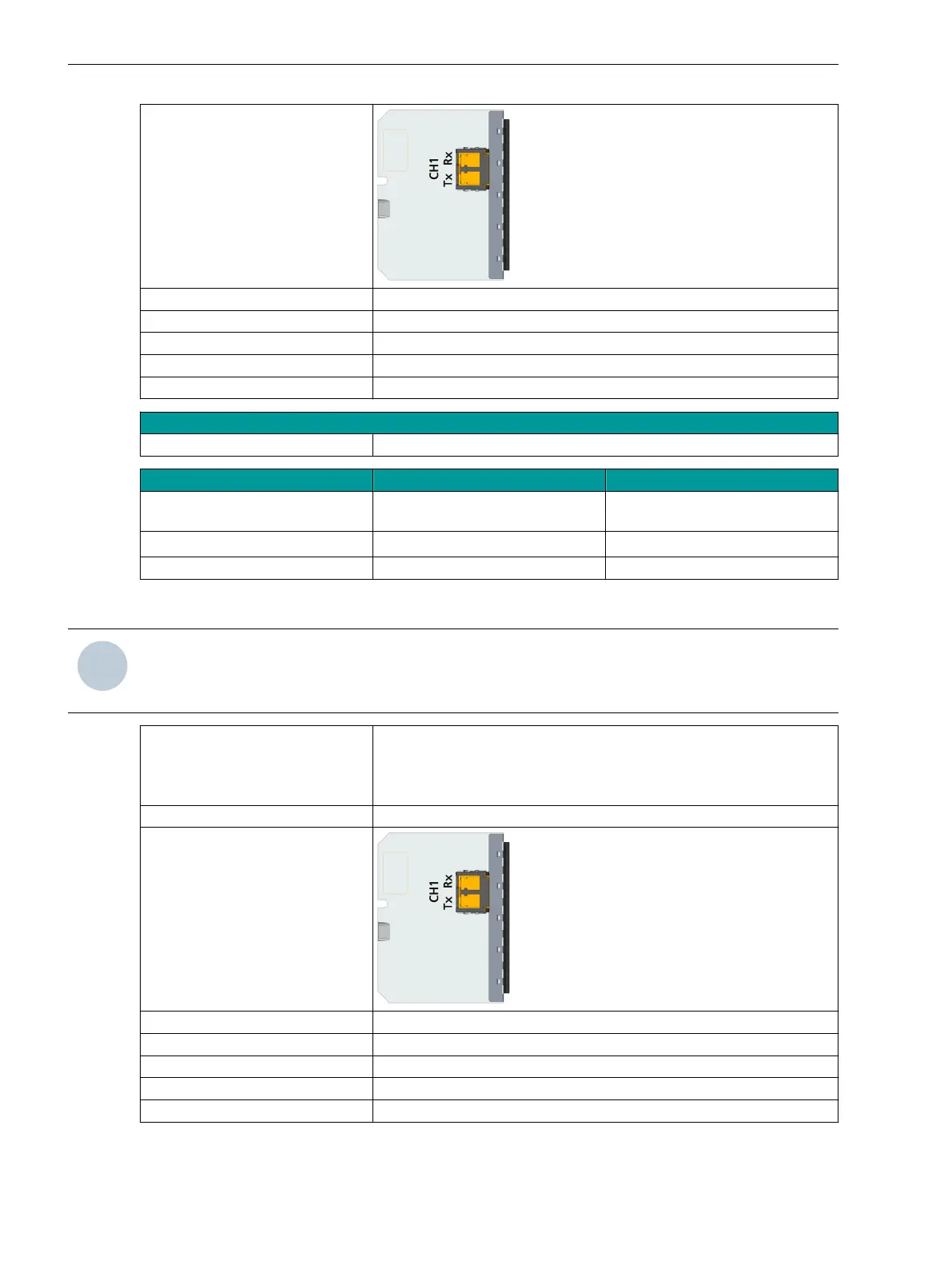

Figure
Connector type 1 x simplex LC
Wavelength λ = 1300 nm
Baud rate 2 Mbit/s for the protection-interface communication
Protocol Protection-interface communication
Max. line length 40 km for singlemode optical fibers
Distance 40 km
Laser class 1 as per EN 60825-1/-2 With the use of 9 μm/125 μm optical fibers
Minimum Maximum
Transmitter power coupled in the
singlemode optical fiber
-8.0 dBm
avg
-3.0 dBm
avg
Receiver sensitivity -3.0 dBm
avg
-33.0 dBm
avg
Optical budget 25.0 dB –
USART-AJ-1LDFO
NOTE
Use the protection-interface module USART-AJ-1LDFO paired with USART-AH-1LDFO or USART-AX-2LDFO
only.
Description Protection-interface module for synchronous operation with 1 optical
interface
In particular, a bidirectional data exchange through a single optical fiber
is possible with the USART-AH-1LDFO module.
Product code P1Z1007
Figure
Connector type 1 x simplex LC
Wavelength λ = 1550 nm
Baud rate 2 Mbit/s for the protection-interface communication
Protocol Protection-interface communication
Max. line length 40 km for singlemode optical fibers
4.2.4.5
Plug-In Modules
4.2 Communication Modules
168 SIPROTEC 5, Hardware Description, Manual
C53000-G5040-C002-M, Edition 12.2021
