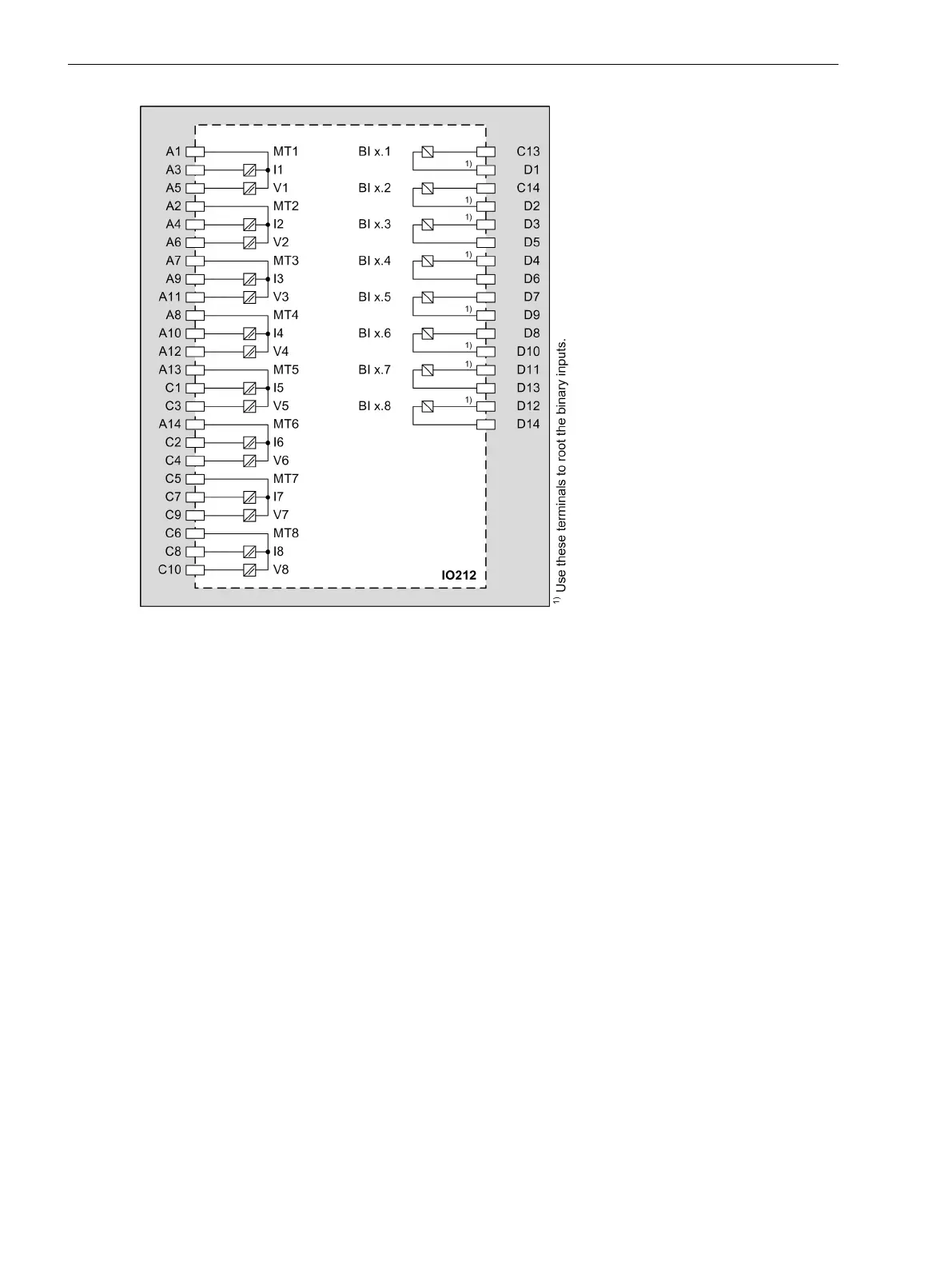

Figure 3-53
IO212 – Connection Diagram
Input and Output Module IO214
Description
The terminals for the following are located on the input and output module IO214:
4 current transformers (optionally protection-class current transformers or instrument transformers)
4 voltage transformers
2 binary inputs
5 binary outputs with 4 high-speed make contacts (type F) and 1 high-speed change-over contact (type
F)
The connections are distributed over:
1 x 8-pole current terminal
3 x 14-pole voltage terminal
3.2.14
3.2.14.1
Electronic Modules
3.2 Input and Output Modules of the Modular Devices
98 SIPROTEC 5, Hardware Description, Manual
C53000-G5040-C002-M, Edition 12.2021
