Receiver sensitivity Maximum +1 dBm
Minimum -32 dBm
Optical budget
Minimum 4.2 dB for 50 μm/125 μm, NA
12
= 0.2
Minimum 8.0 dB for 62.5 μm/125 μm, NA
12
= 0.275
Laser class 1 as per EN 60825-1/-2 With the use of 62.5 μm/125 μm and 50 μm/125 μm optical fibers
USART-AE-2FO
Description Serial asynchronous or synchronous communication module with
2 independent optical interfaces
Product code P1Z48

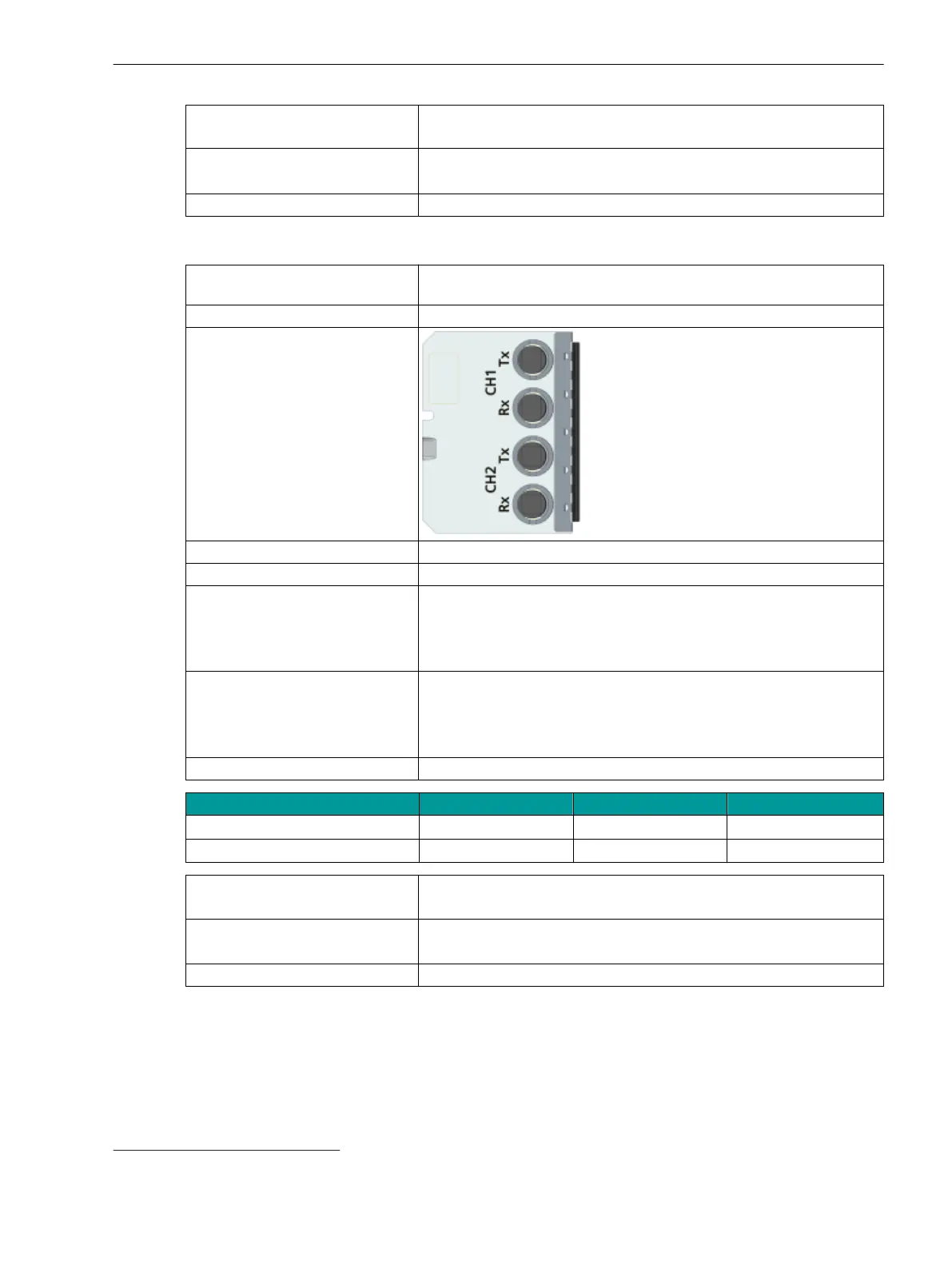

Figure
Connector type 4 x ST
Wavelength λ = 820 nm
Baud rate Asynchronous: both connections 1.2 kbit/s to 115.2 kbit/s
Synchronous: both connections 64 kbit/s to 2 Mbit/s
Asynchronous/Synchronous: 1 connection 1.2 kbit/s to 115.2 kbit/s and
1 connection 64 kbit/s to 2 Mbit/s
For 1 or 2 protocols or applications
(1 application per optical connec-
tion)
IEC 60870-5-103
DNP3
SUP serial
Protection-interface communication
Max. distance 2 km when using an optical fiber 62.5 μm/125 μm
Transmitter Power Minimum Typical Maximum
50 μm/125 μm, NA
13
= 0.2
-19.8 dBm -15.8 dBm -12.8 dBm
62.5 μm/125 μm, NA
13
= 0.275
-16.0 dBm -12.0 dBm -9.0 dBm
Receiver sensitivity Maximum +1 dBm
Minimum -32 dBm
Optical budget
Minimum 4.2 dB for 50 μm/125 μm, NA
13
= 0.2
Minimum 8.0 dB for 62.5 μm/125 μm, NA
13
= 0.275
Laser class 1 as per EN 60825-1/-2 With the use of 62.5 μm/125 μm and 50 μm/125 μm optical fibers
Serial Modules for Long Distances
Application
The optical protection-interface modules are used for long distances over multimode or singlemode optical
fibers. In the case of the protection interface, they serve the purpose of point-to-point transmission between 2
4.2.3.5
4.2.4
4.2.4.1
13
Numerical Aperture (NA = sin θ [launch angle])
Plug-In Modules
4.2 Communication Modules
SIPROTEC 5, Hardware Description, Manual 165
C53000-G5040-C002-M, Edition 12.2021
