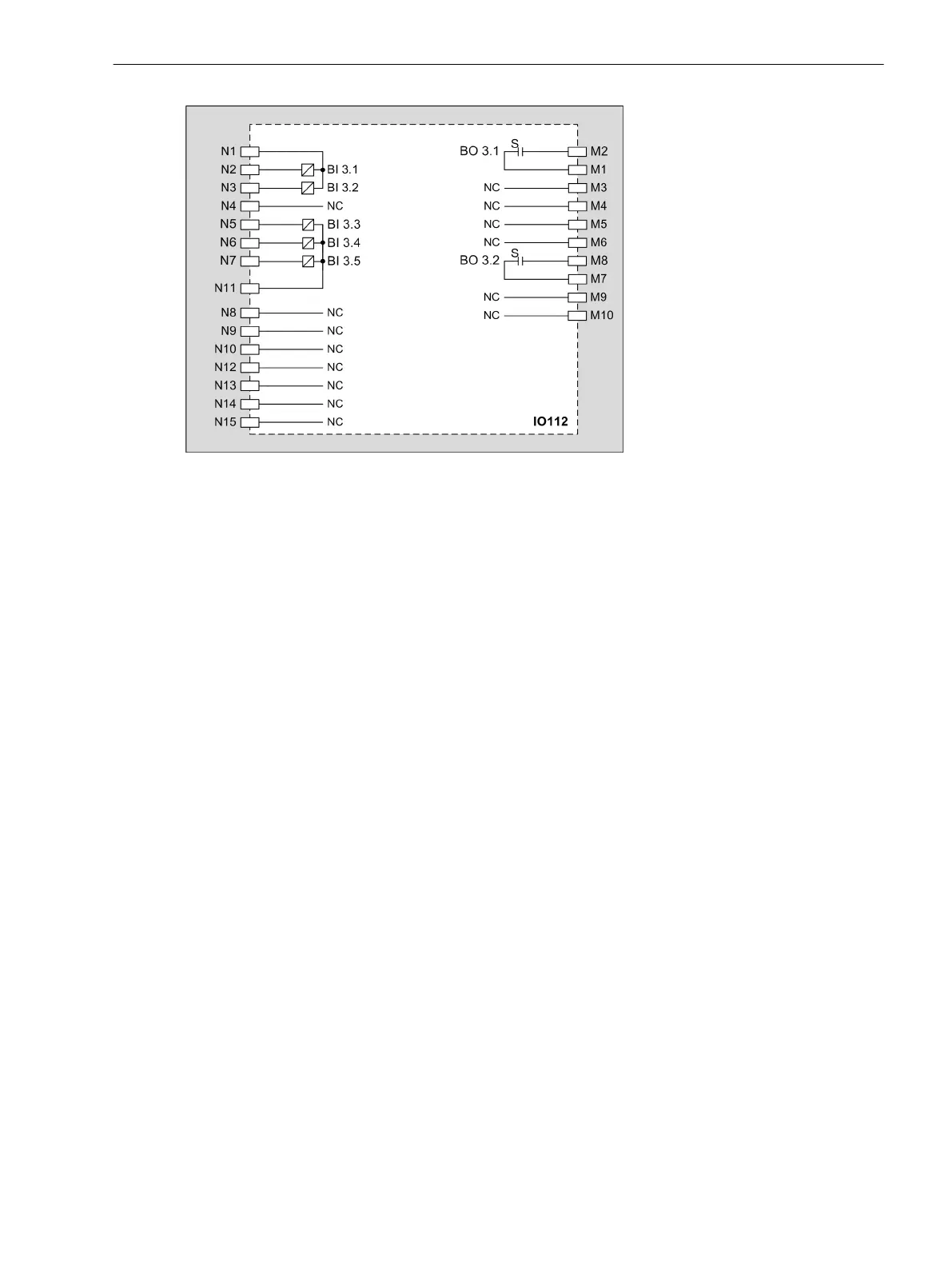

Figure 3-102 IO112 – Connection Diagram
Input and Output Module IO113
Description
The terminals for the following are located on the input and output module IO113:
•
7 binary inputs
•
5 binary outputs, of which:
– 5 standard make contacts (type S)
The connections are distributed over:
•
1 x 10-pole terminal
•
1 x 15-pole terminal
Terminals
Overview of Terminals
The overview of terminals is identical to the module IO110, see Figure 3-89.
3.4.8
3.4.8.1
3.4.8.2
Electronic Modules
3.4 Input and Output Modules of Non-Modular Devices (7xx81, 7xx82)
SIPROTEC 5, Hardware Description, Manual 149
C53000-G5040-C002-M, Edition 12.2021
