Terminal and Connection Diagram
[cdps201x-270912-01.tif, 1, en_US]

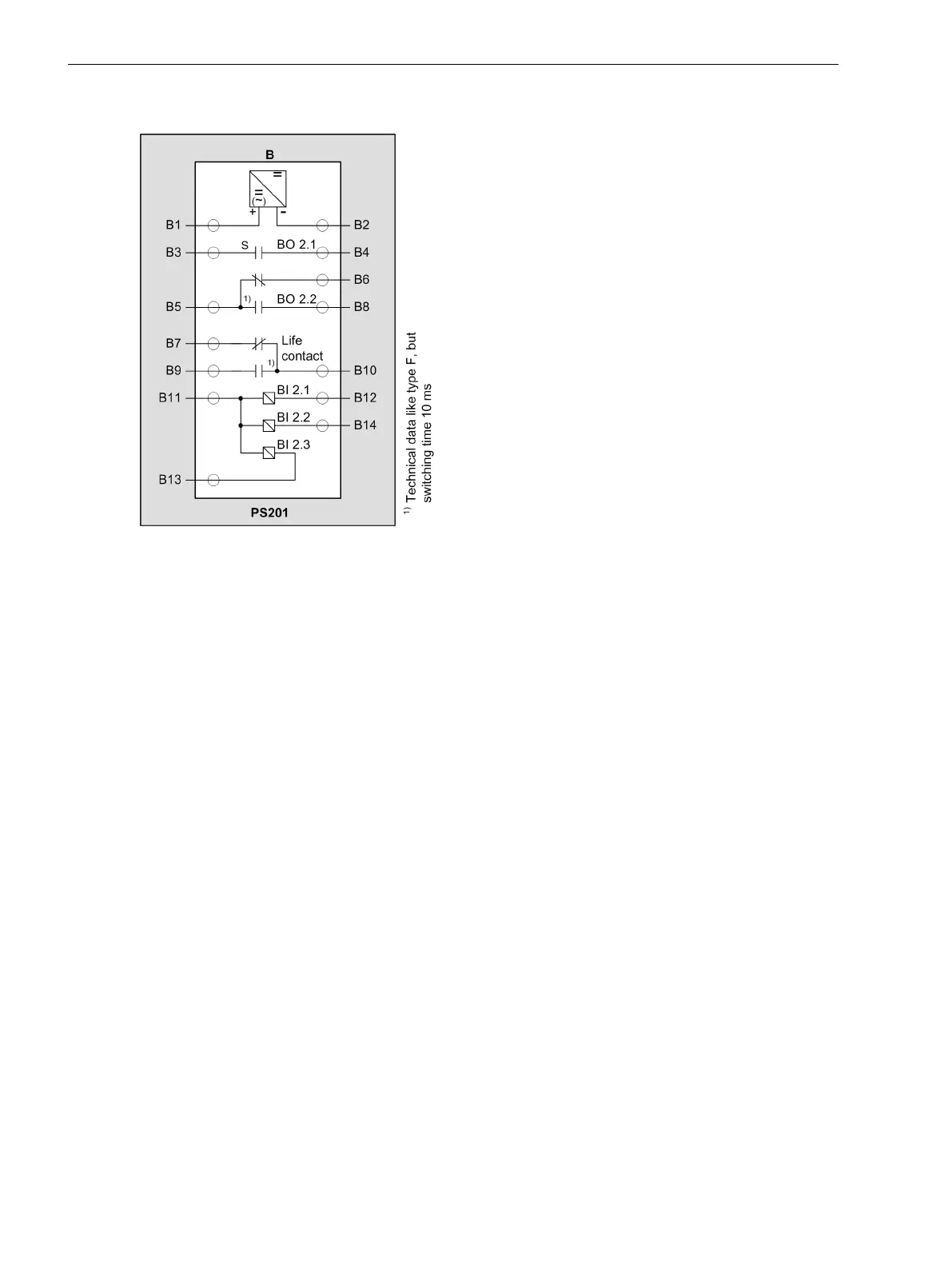

Figure 3-2 PS201 – Terminal Diagram
Electronic Modules
3.1 Power-Supply Modules of the Modular Devices
50 SIPROTEC 5, Hardware Description, Manual
C53000-G5040-C002-M, Edition 12.2021
