[sc_IO240 connection strain release, 2, en_US]

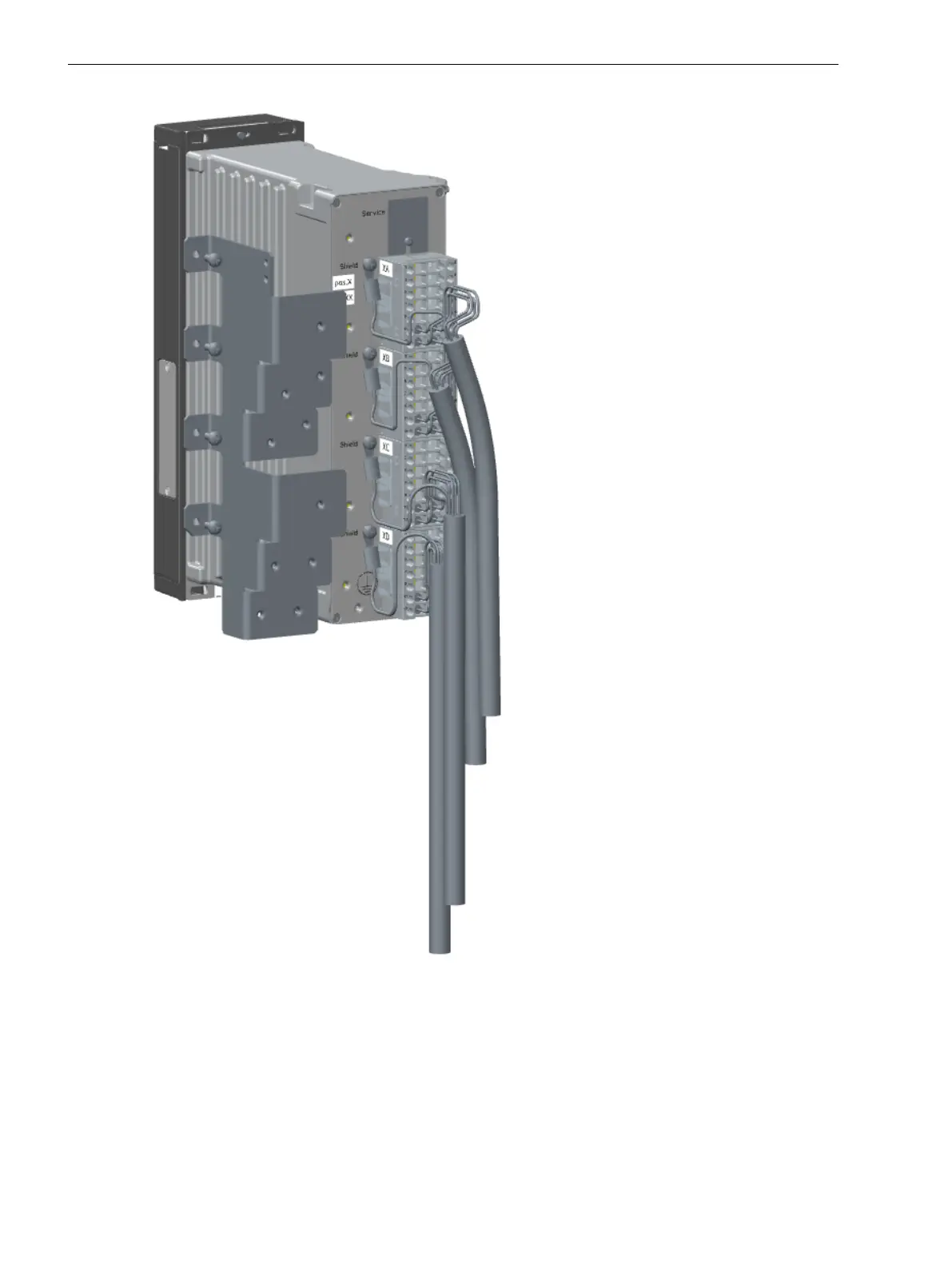

Figure 3-72
Strain-Relief Plate from the Left
²
Place the 4 cables over the fixation surface.
²
Fix the strain-relief plate to the rear plate of the LPIT module using 4 M4 screws (torque = 1.6 Nm).
²
Mount the clamps for fixing the cables to the strain-relief plate using 8 M4 screws (torque = 1.6 Nm).
Electronic Modules
3.2 Input and Output Modules of the Modular Devices
120 SIPROTEC 5, Hardware Description, Manual
C53000-G5040-C002-M, Edition 12.2021
