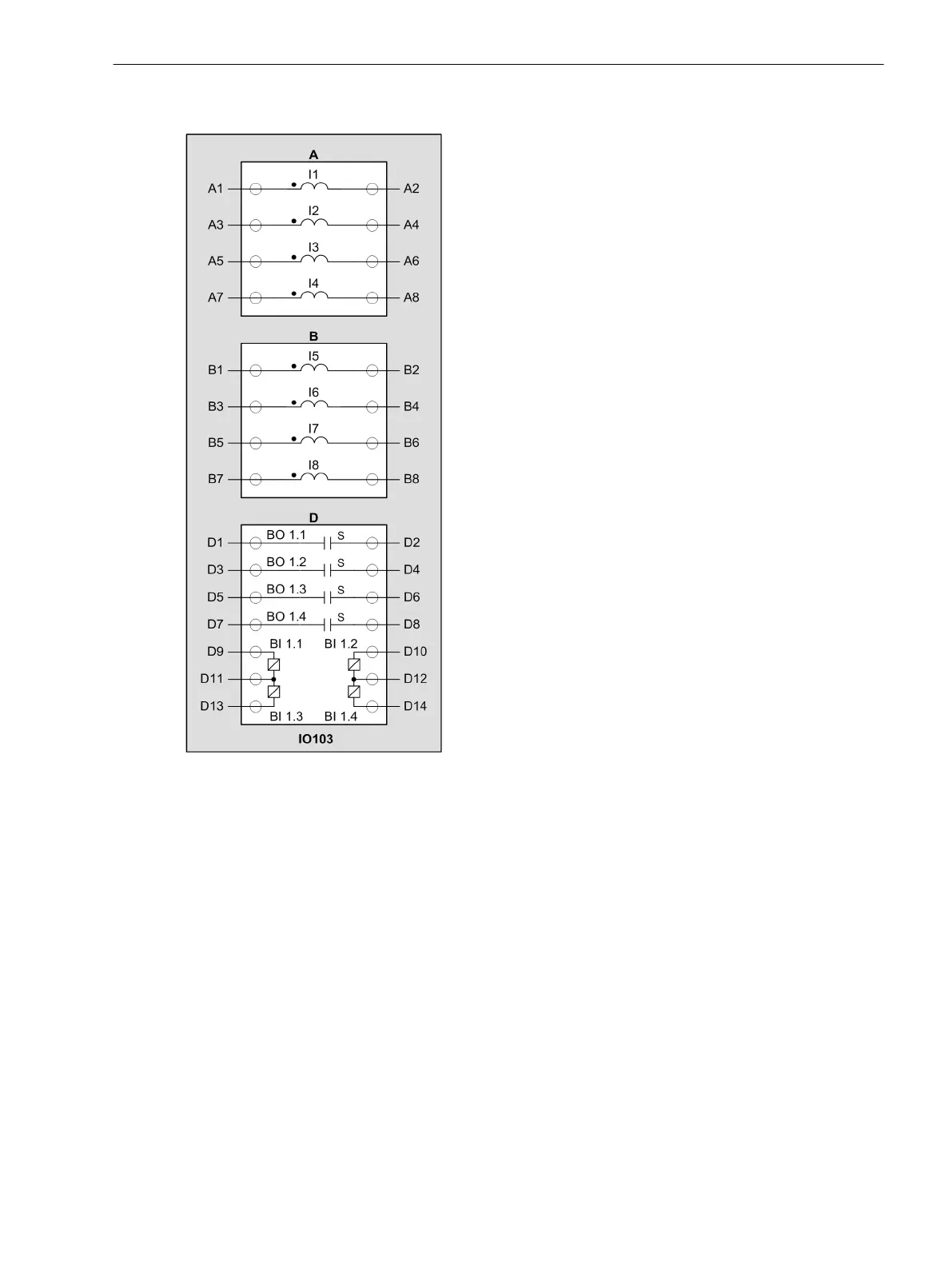

Terminal and Connection Diagram
[cdio103x-131113-01, 3, en_US]
Figure 3-87
IO103 – Terminal Diagram
Electronic Modules
3.4 Input and Output Modules of Non-Modular Devices (7xx81, 7xx82)
SIPROTEC 5, Hardware Description, Manual 137
C53000-G5040-C002-M, Edition 12.2021
