Terminal and Connection Diagram
[cdio110x-220513-01.tif, 3, en_US]

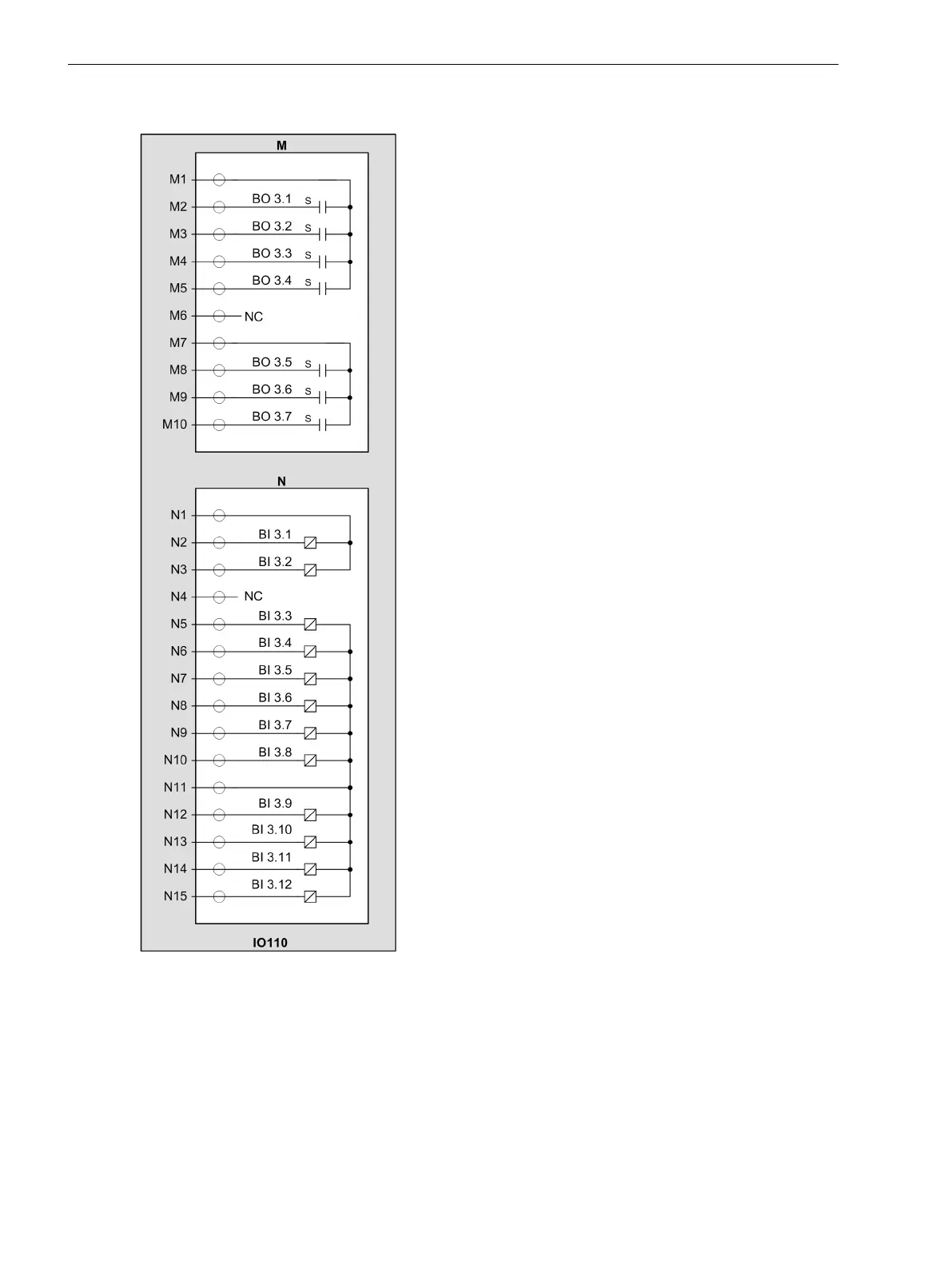

Figure 3-90
IO110 – Terminal Diagram
Electronic Modules
3.4 Input and Output Modules of Non-Modular Devices (7xx81, 7xx82)
140 SIPROTEC 5, Hardware Description, Manual
C53000-G5040-C002-M, Edition 12.2021
