Siemens SIPROTEC 5 V8.83

[dw_z1_5-6, 2, en_US]

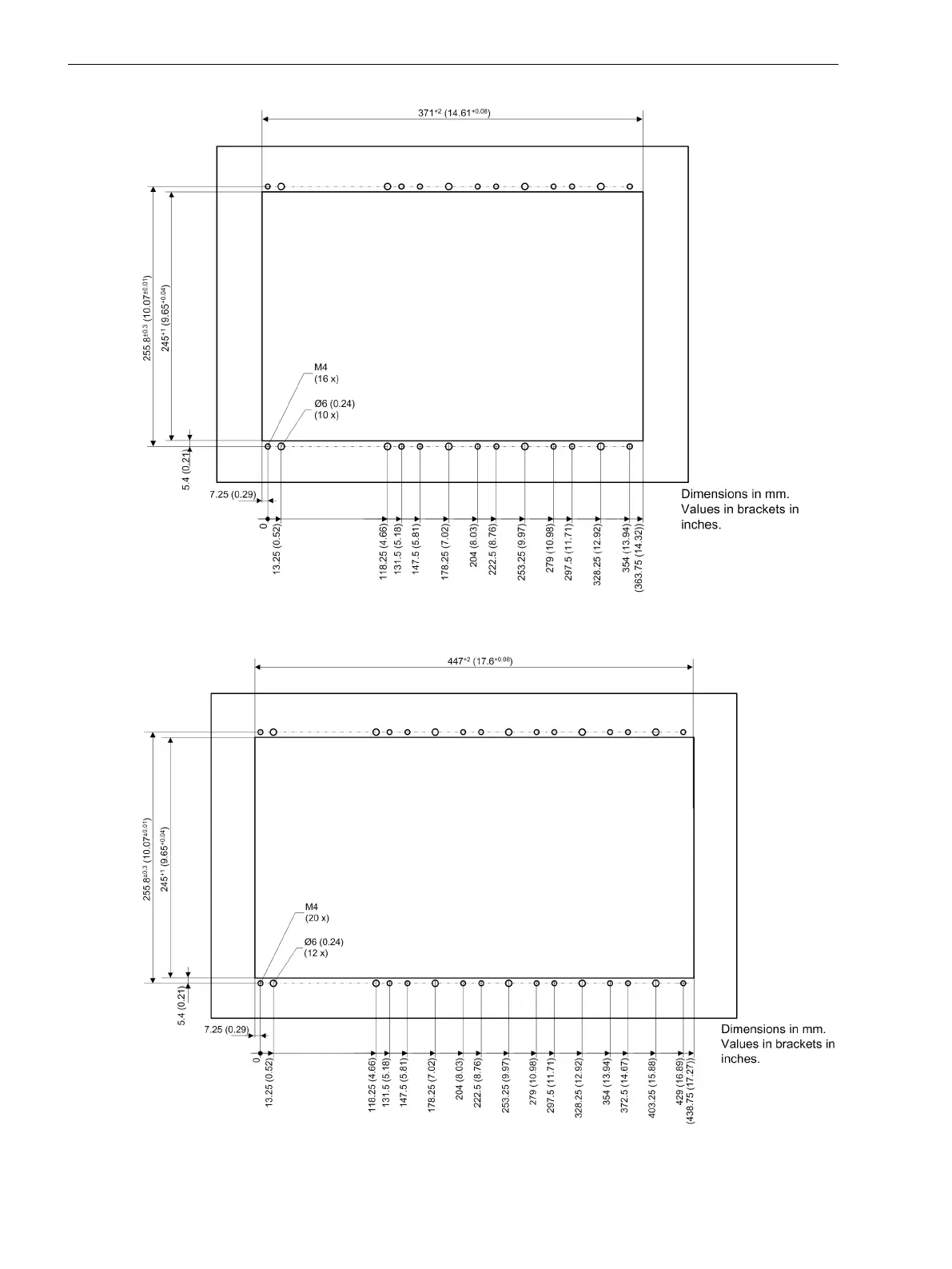

Figure 6-4
Cut-Out Widths and Drilling Pattern – 5/6 Device, 1st Device Row
[dw_z1_1-1, 3, en_US]
Figure 6-5
Cut-Out Widths and Drilling Pattern – 1/1 Device, 1st Device Row
Technical Data
6.14 Assembly Dimensions
252 SIPROTEC 5, Hardware Description, Manual
C53000-G5040-C002-M, Edition 12.2021
