On-Site Operation Panel of Expansion Modules
[le_expansion modules, 1, --_--]

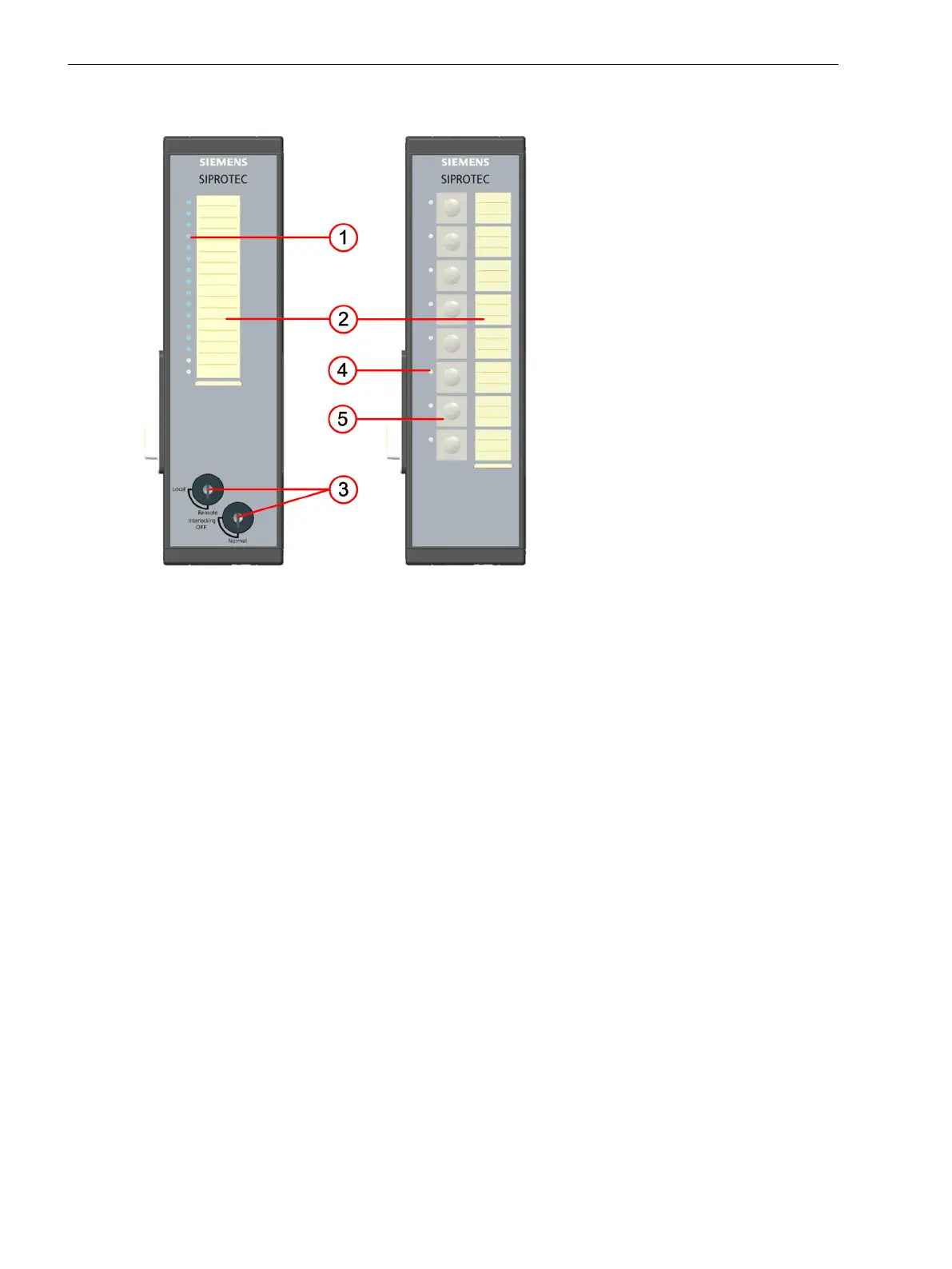

Figure 2-23
Expansion Module
(1) 16 monochrome LEDs
(2) Cover labels
(3) 2 key switches
(4) 8 monochrome LEDs
(5) 8 push-buttons
The on-site operation panels are distinguished by the following characteristics:
•
Flat and compact design
•
16 monochrome parameterizable LEDs
•
Decorative film
•
2 key switches for setting the operating mode
Besides the base module, you can add an expansion module with key switches. The following table explains
the meanings of the switch positions.
Forms of Devices and On-Site Operation Panels
2.4 On-Site Operation Panels
44 SIPROTEC 5, Hardware Description, Manual
C53000-G5040-C002-M, Edition 12.2021
