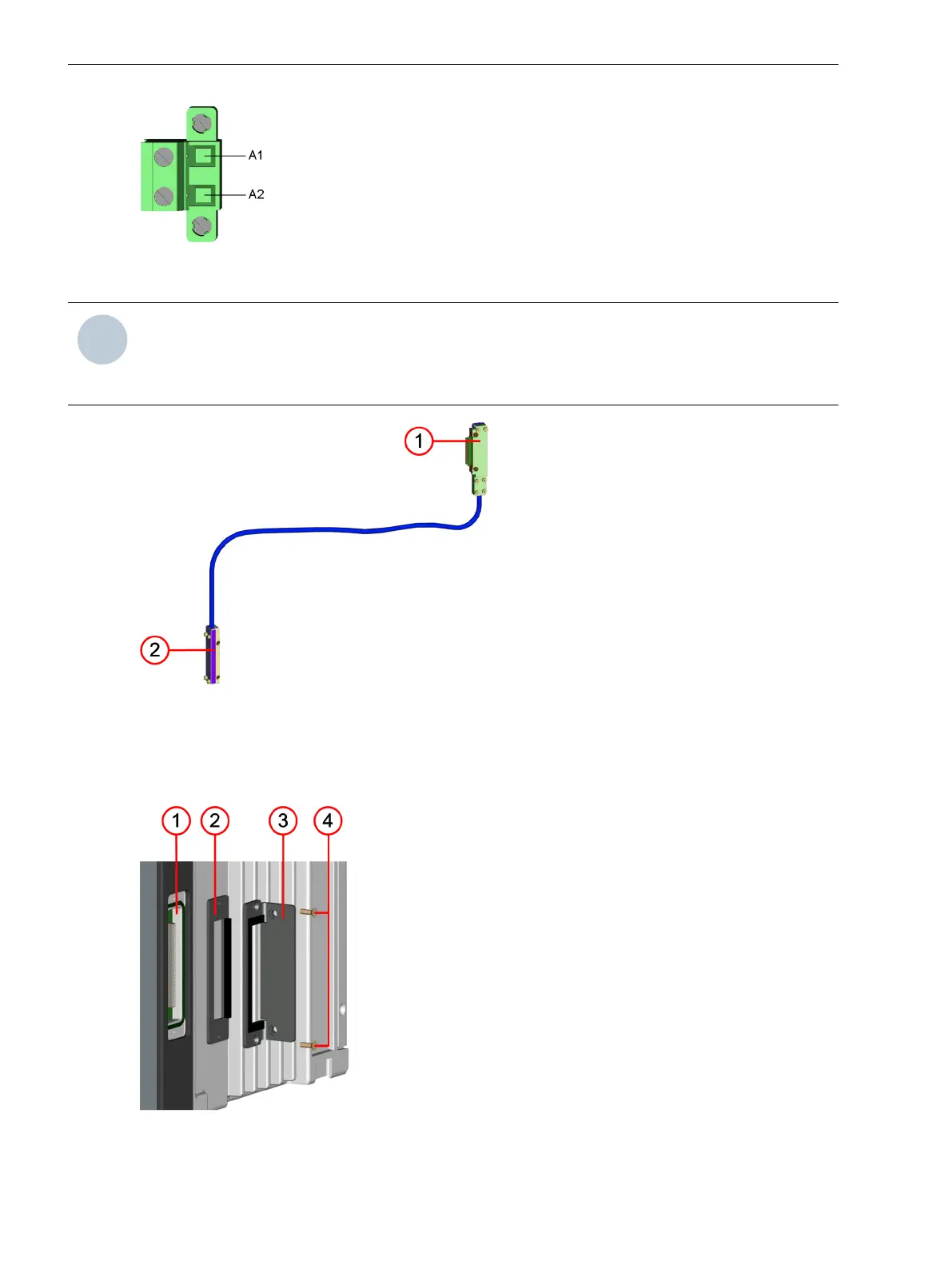

Figure 3-6 Connection of External Power Supply
i
i
NOTE
When expanding a device with the 2nd device row, you must install the connecting cable for the 2nd
device row with the corresponding angle rail. All required components are included in the scope of delivery
of a power-supply module PS203.
[dw_kabel1-020414-01, 1, --_--]
Figure 3-7 Connecting Cable for the Connection of a 2nd Device Row
(1) Handle mold for the connection to the 1st device row
(2) Handle mold for the connection to the 2nd device row
[dw_winkel-020414-01, 1, --_--]
Figure 3-8 Sealing Plate and Adaptor Bracket for the Expansion Module of the 1st Device Row
Electronic Modules
3.1 Power-Supply Modules of the Modular Devices
54 SIPROTEC 5, Hardware Description, Manual
C53000-G5040-C002-M, Edition 12.2021
