2nd device row:
– Mounting position 7: PS203
– Mounting positions 8 to 11: IO2xx
– Mounting position 12: PS204

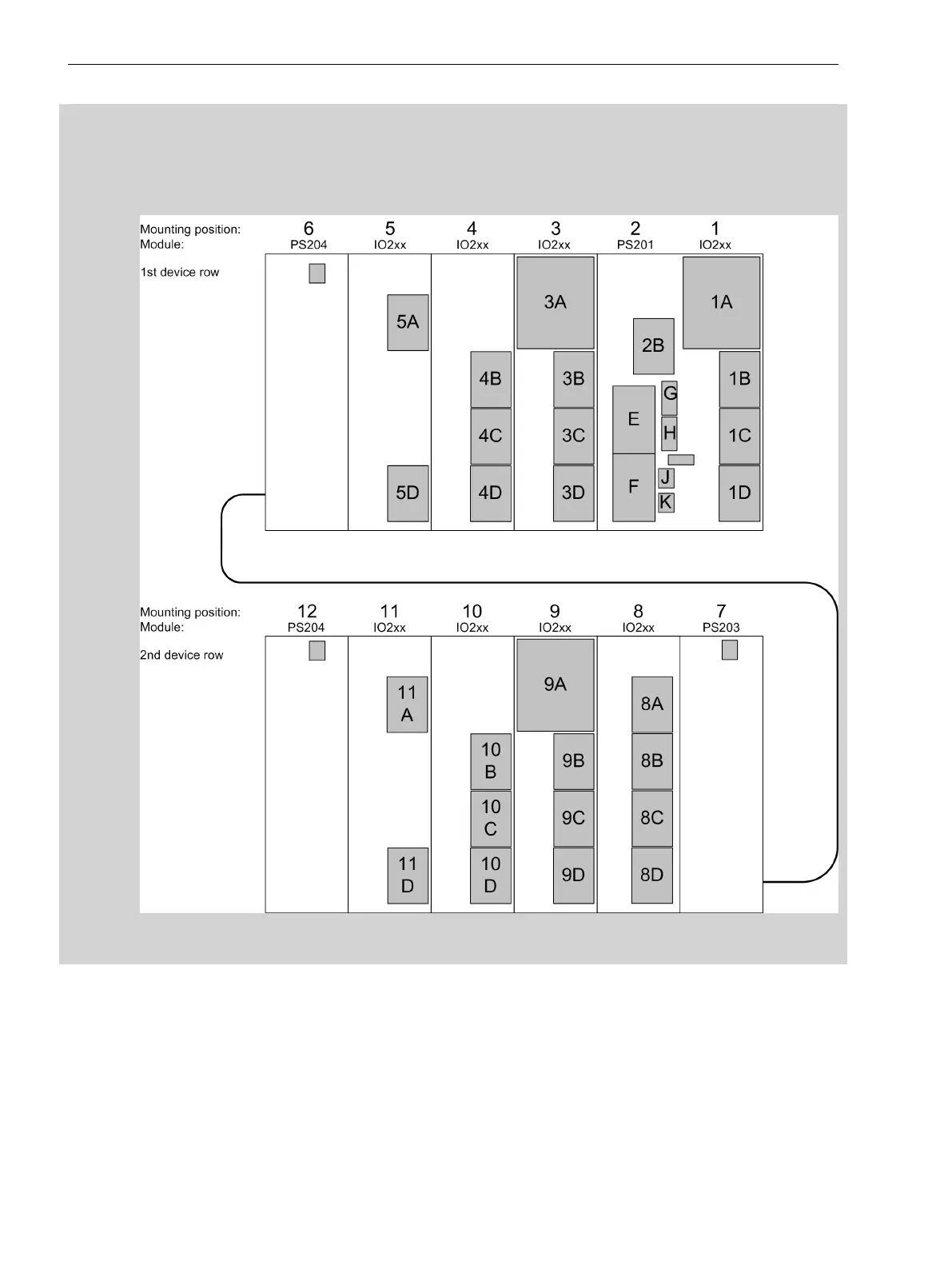

[dw_module_position_PS204, 1, en_US]
Figure 3-10
Arrangement of Modules with 2 PS204 Modules – Rear View
There is an exception if a CB202 PCB assembly with integrated power supply is to be used: The CB202 PCB
assembly with integrated power supply must always be positioned to the right (front view) of the PS204
module in the 1st or 2nd row.
