Terminal and Connection Diagram
For the binary inputs and outputs, the x corresponds to the slot in the 19-inch rack.
[cdio202x-300812-01.tif, 1, en_US]

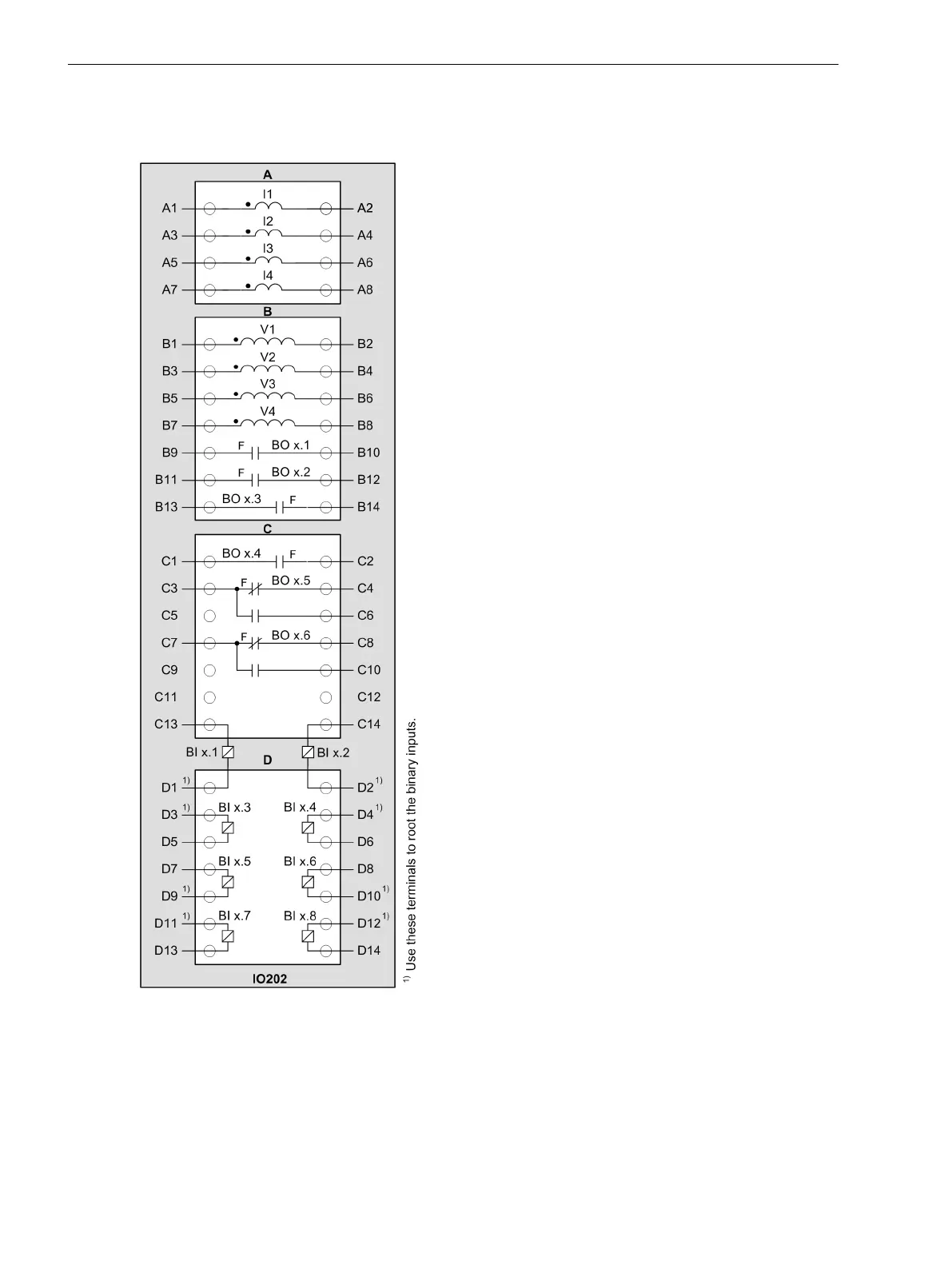

Figure 3-22
IO202 – Terminal Diagram
Electronic Modules
3.2 Input and Output Modules of the Modular Devices
68 SIPROTEC 5, Hardware Description, Manual
C53000-G5040-C002-M, Edition 12.2021
