3 Mounting and Commissioning
408
7SA522 Manual
C53000-G1176-C155-3

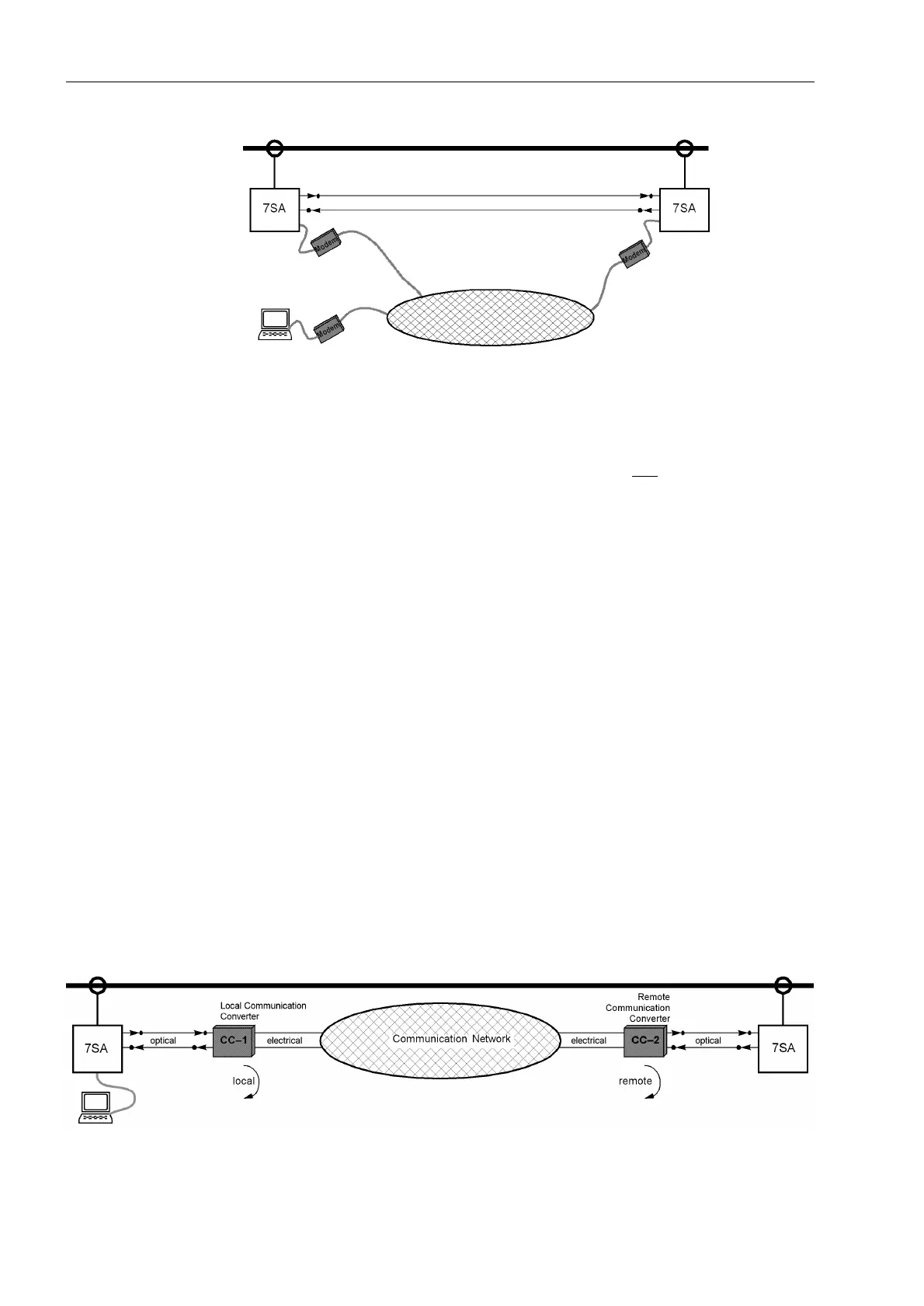

Figure 3-21 PC interfacing via modem — schematic example
Checking a Con-
nection Using
Direct Link
For two devices linked with fibre optical cables (as in Figure 3-20 or 3-21), this con-
nection is checked as follows. If two or more devices are linked or, if two devices have
been (double-) linked with a ring topology, first check only one
link.
Both devices at the link ends have to be switched on.
Check in the event log or in the spontaneous annunciations:
If the message ´3,ZLWKµ (protection data interface 1 connected with FNo.
3243) is provided with the device index of the other device, a link has been es-
tablished and one device has recognized the other.
If the protection data interface 2 has also been connected, a corresponding
message will appear ´3,ZLWKµ (FNo. 3244).
In case of an incorrect communication link, you see the message ´3,'DWD
IDXOWµ (FNo. 3229) or ´3,'DWDIDXOWµ (FNo. 3231). In this case, check the
fibre optical cable link again.
Have the devices been linked correctly and no cables been mixed up?
Are the cables free from mechanical damage, intact and the connectors locked?
Otherwise repeat check.
Continue with the margin title “Consistency of Topology and Configuration”.
Checking a Link
with a
Communication
Converter
If a communication converter is used, please note the instructions enclosed with the
device. The communication converter has a test setting where its outputs are looped
back to the inputs.
Links via the communication converter are tested by means of local loop-back (Figure
3-22, left).
Figure 3-22 Distance protection communication via communication converter and communication network - example
