Limit Value
Handling (Set
Points)
On two worksheets a set point supervision of the sum of power factor |cosϕ| < and in
the maximum functional scope additional set point supervisions of currents (demand
meter of phase currents and positive-sequence component) and supervisions of
power (apparent power, active power and reactive power) are created with blocks of
level “Processing of Measured Values”.
A drop-out ratio of 0.95, or at least 0.5 % applies for each drop.

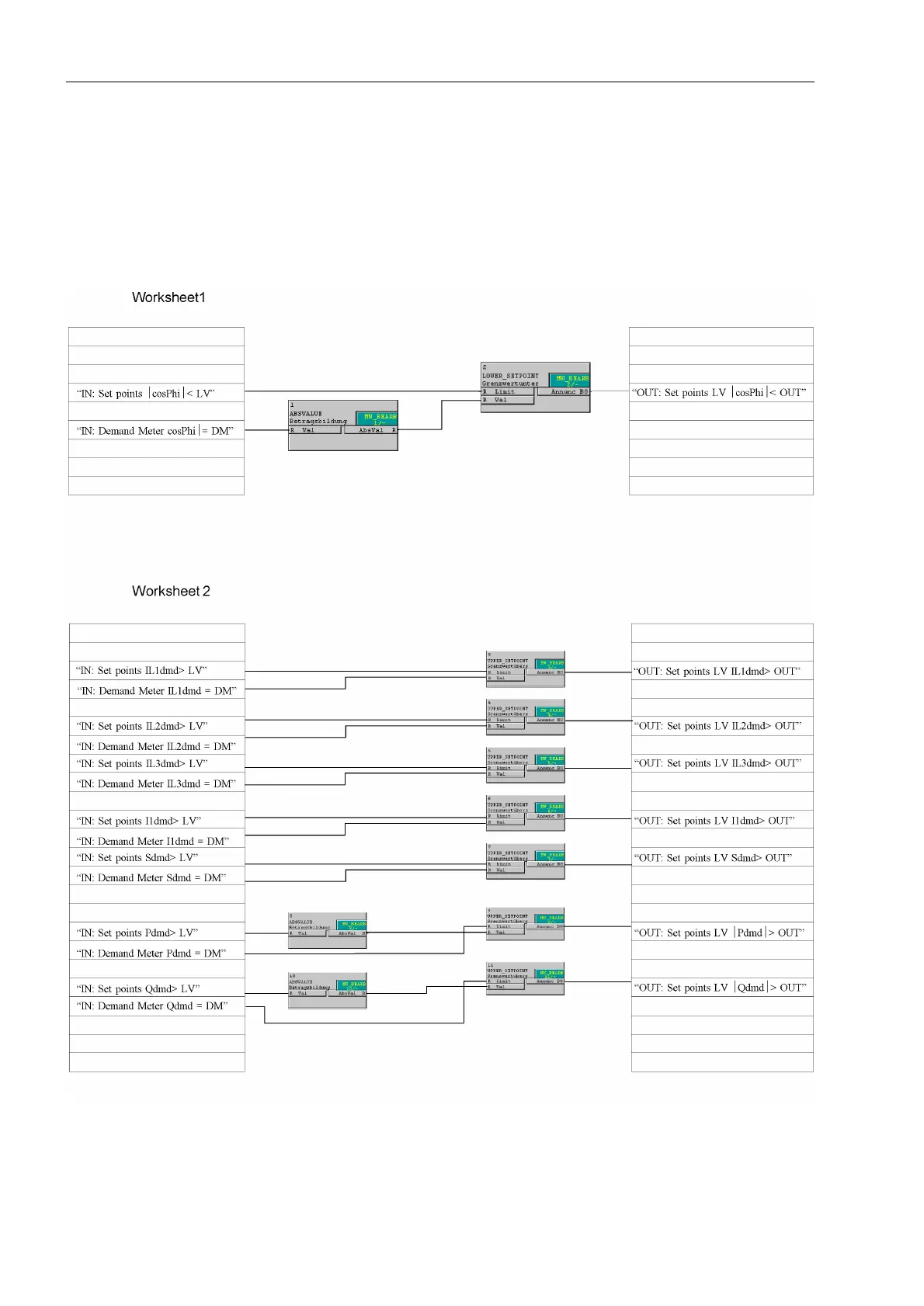

Figure A-25 Set point configuration with blocks of priority class Processing of Measured Values (MW_BEARB)
