• Circuit breaker failure protection (CBF), selectable per bay, for low-current faults in
the variants
− I> query (1-stage CBF)
− TRIP repetition with overcurrent detection I> (2-stage CBF)
− Unbalancing (1-stage CBF)
− TRIP repetition with following unbalancing (2-stage CBF)
− Single-pole or three-pole start by external breaker failure protection and tripping
via the isolator replica
• Direct operation of the circuit breaker by the bay unit
• Direct tripping of busbar sections via binary inputs of the central unit

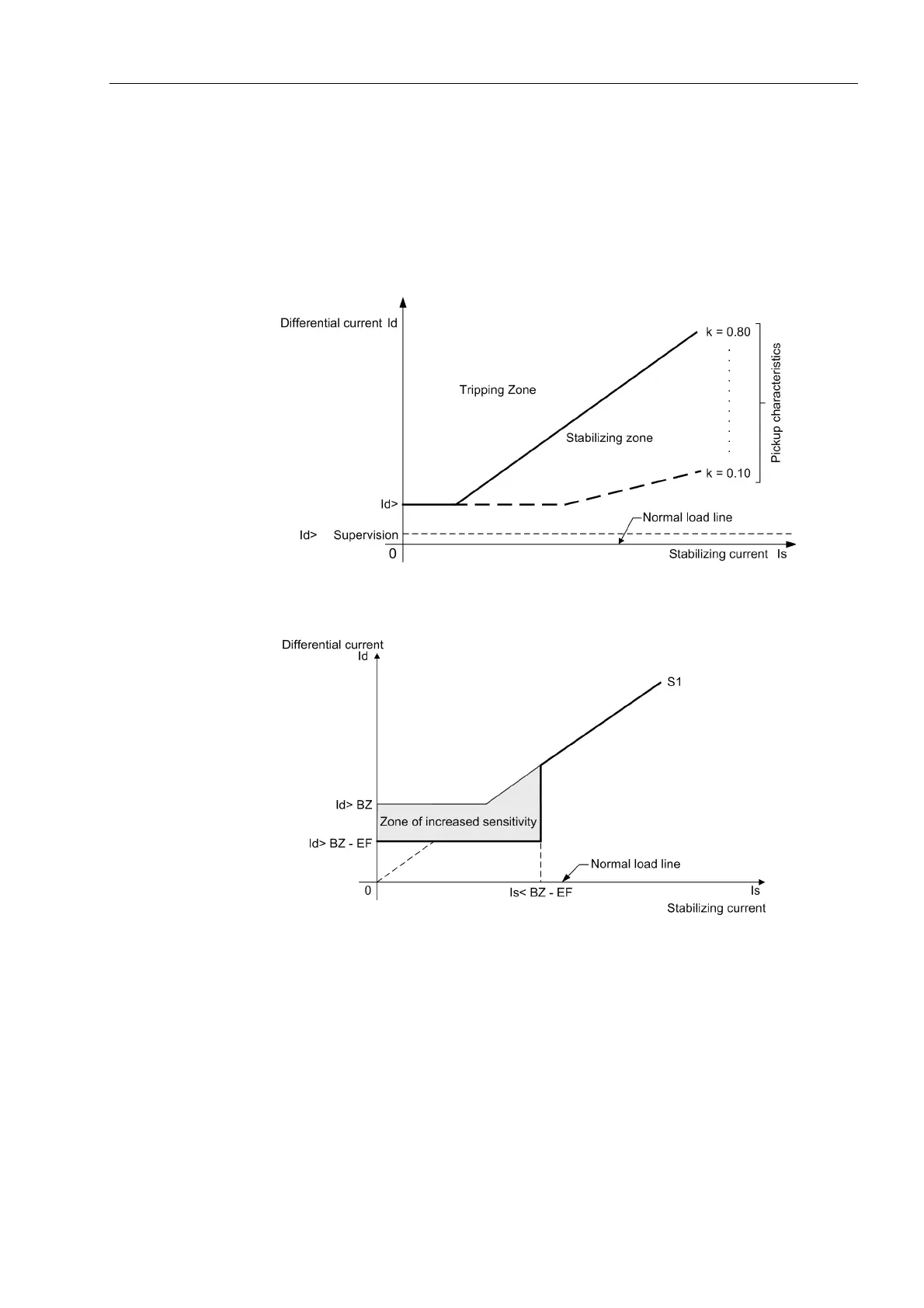

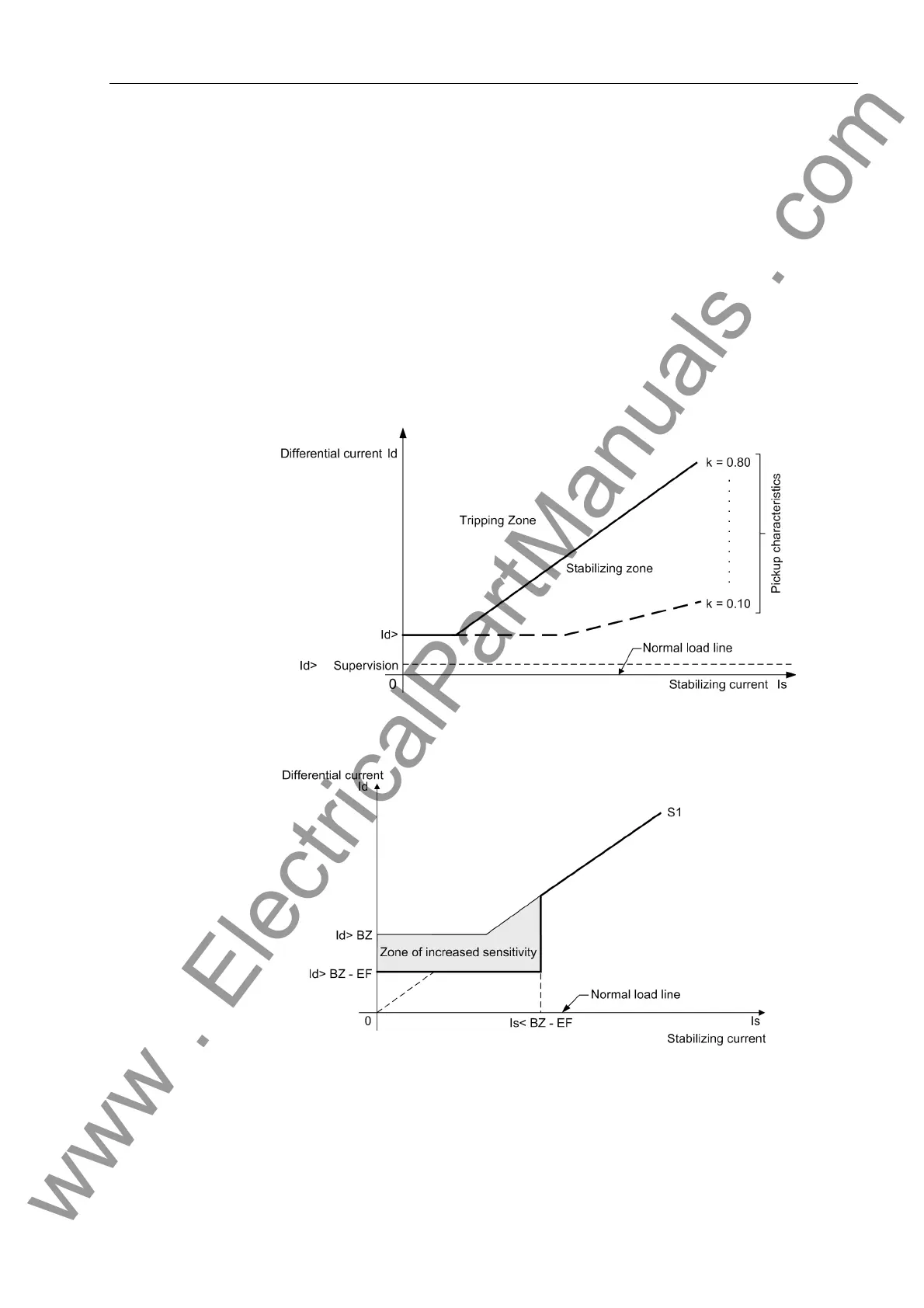

Figure 1-2 Pick-up characteristics of the busbar and breaker failure protection (unbalancing)
Figure 1-3 Earth fault characteristic
