Mounting position, mounting clearances
5.2 Other mounting positions
Power supply system SITOP PSU8600
Manual, 09.2018, A5E36758446-5-76
147
Basic device SITOP PSU8600 20 A and supplementary modules

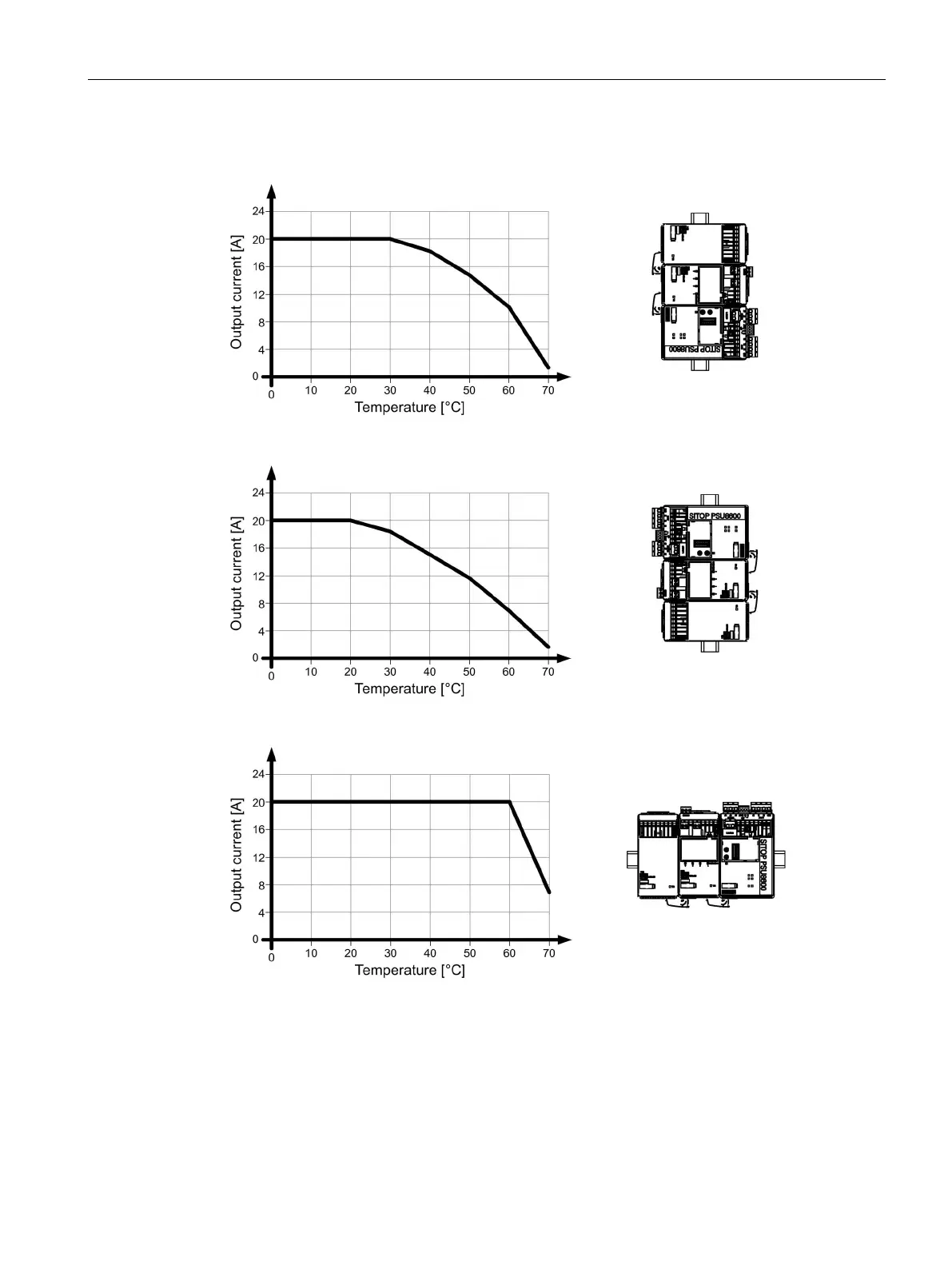

Figure 5-11 Mounting position 1
Figure 5-12 Mounting position 2
Figure 5-13 Mounting position 3
