Mounting position, mounting clearances
5.2 Other mounting positions
Power supply system SITOP PSU8600
Manual, 09.2018, A5E36758446-5-76
149
5.2.3
Basic device SITOP PSU8600 40 A

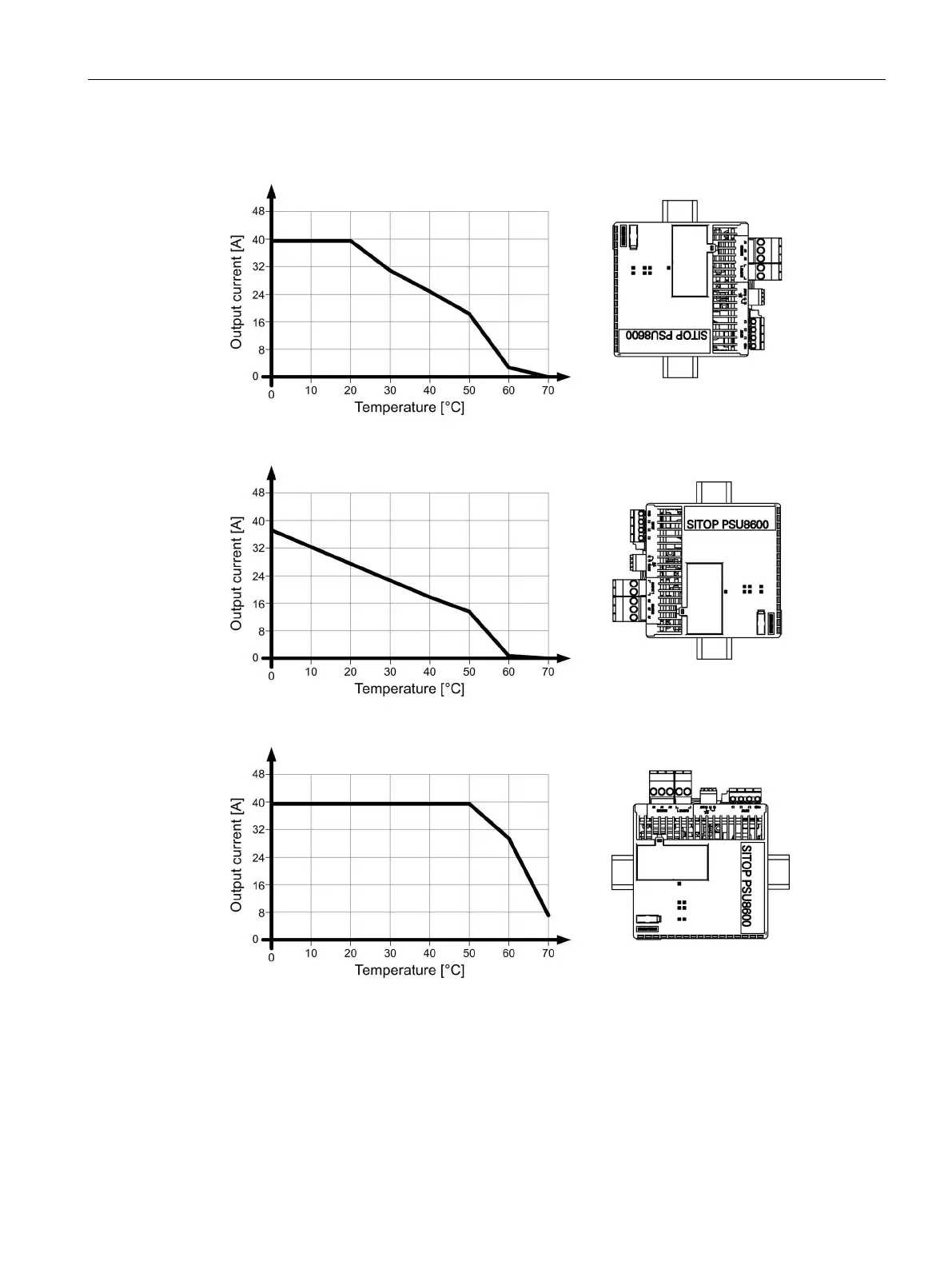

Figure 5-16 Mounting position 1
Figure 5-17 Mounting position 2
Figure 5-18 Mounting position 3
