9.3 Efficiency
Power supply system SITOP PSU8600
392 Manual, 09.2018, A5E36758446-5-76
9.3
Efficiency
Basic unit
6EP3436-8SB00-2AY0
Basic unit
6EP3437-8SB00-2AY0
Efficiency at U
out rated
, I
out rated
, approx.
> 93 %
> 93 %
Power loss at U
out rated
, I
out rated
, approx.
34 W
72 W
Power loss for no-load operation
Typ. 12 W
Typ. 20 W
Expansion module
6EP4436-8XB00-0CY0
Expansion module
6EP4437-8XB00-0CY0
Expansion module
6EP4436-8XB00-0DY0
Efficiency at U
out rated
, I
out rated
,
approx.
97 % 97 % 97 %
Power loss at U
out rated
,
I
out rated
, approx.
15 W 30 W 15 W

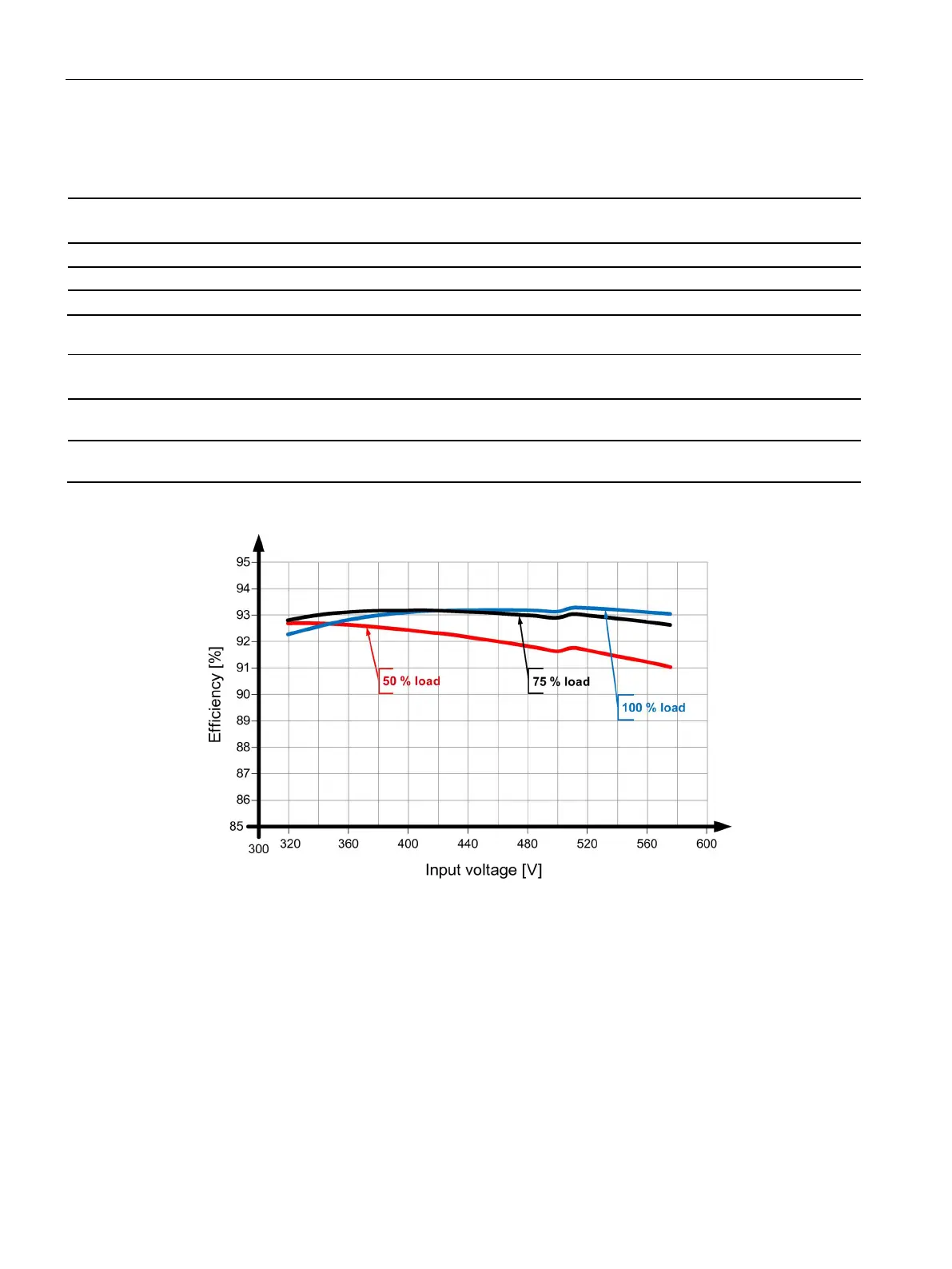

Figure 9-9 Efficiency of the basic unit 6EP3436-8SB00-2AY0 at U
out rated
, I
out rated
