Engineering and remote access
7.7 Web server
Power supply system SITOP PSU8600
Manual, 09.2018, A5E36758446-5-76
303
●
Temperature coefficient
Together with the end of charge voltage at 20°C, the temperature coefficient is used in
the system to calculate the temperature-controlled end of charge voltage. See the
specified formula.
●
Maximum charging current
●
Start preserve charge voltage
●
End of discharge voltage
7.7.7.10

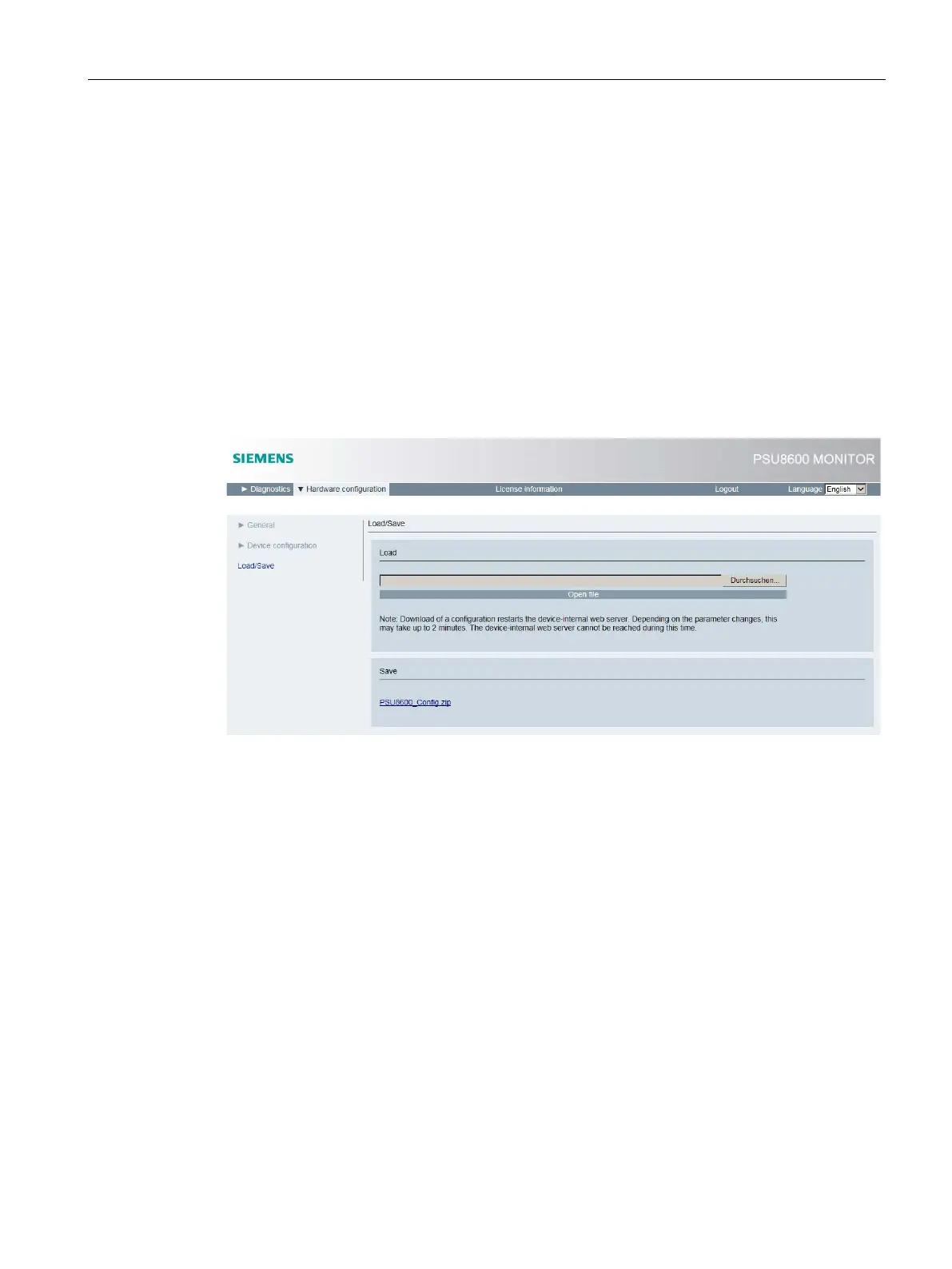

Loading and saving device configuration
Configurations made in the web server can be saved as zip file. Saved configurations can be
loaded back to the web server.
Procedure for saving the configuration
1. Select the "Hardware configuration" menu.
2. Select submenu "Load/Save".
3. The zip file now displayed can be saved as a file using the "Save target as" function of
the shortcut menu (call by pressing the right-hand mouse key).
4. Enter a file name.
5. Click on "OK" to save the configuration as zip file.
Procedure for loading the configuration
1. Select the "Hardware configuration" menu.
2. Select submenu "Load/Save".
3. In the editor area, click on "Browse", and in the file dialog, select the path where the
configuration file should be saved.
4. Click on the "OK" button to load the configuration.
