Siemens SITOP PSU8600 User Manual

Description, device design, dimension drawing

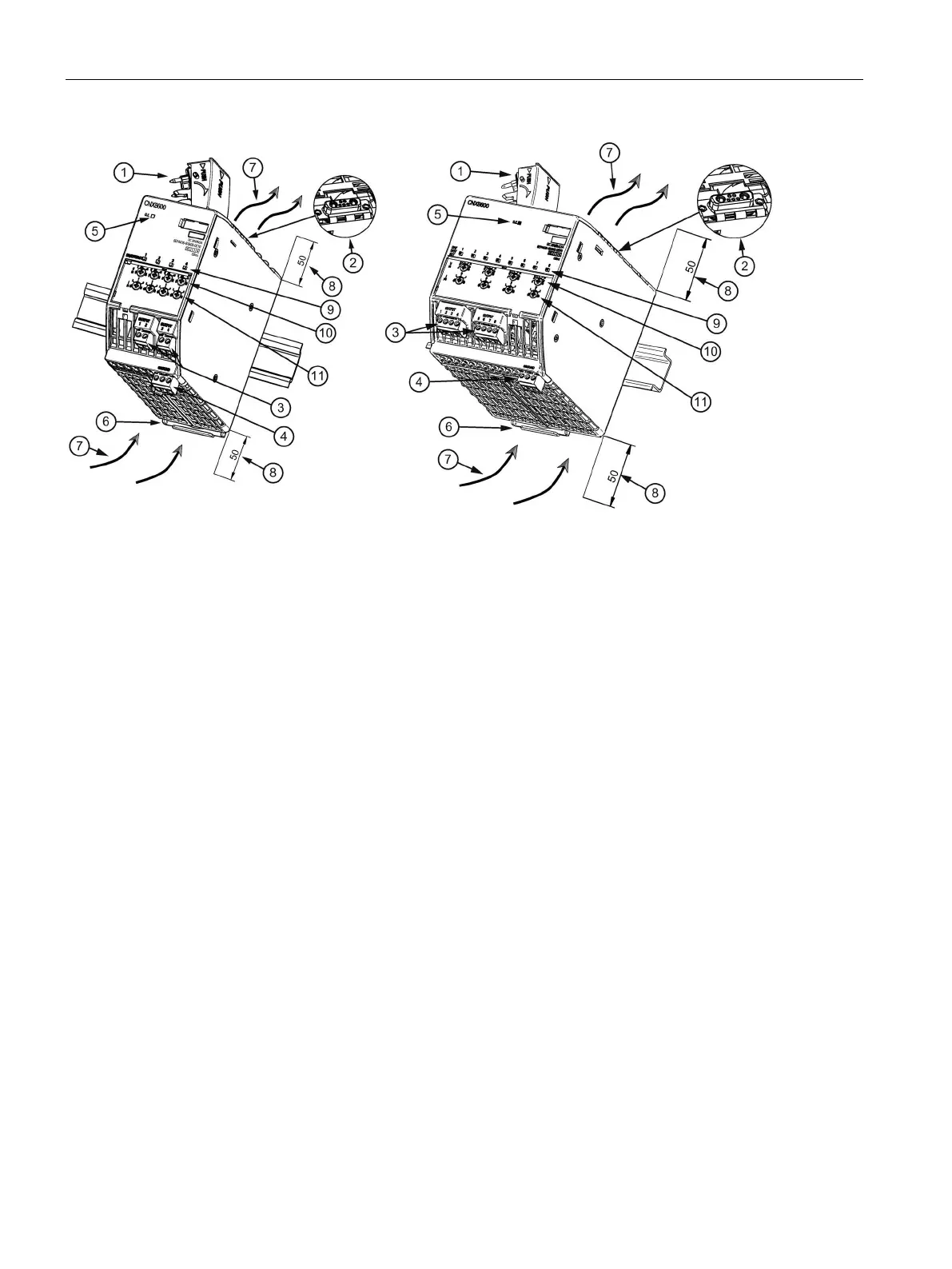

2.2 Description of the expansion modules
Power supply system SITOP PSU8600
20 Manual, 09.2018, A5E36758446-5-76
①
Plug connector to connect to the basic unit or other supplementary modules
②
Socket to connect to additional supplementary modules
③
DC outputs
④
GROUND terminal for optional ground connection to the basic unit
⑤
"O.K LED."
⑥
DIN rail slider
⑦
Convection
⑧
Clearance above/below
⑨
Buttons of the outputs with LED display "ON/OFF/RST"
⑩
Voltage potentiometer U (V)
⑪
Current potentiometer I (A)
