6.2 Configuring the busbar run layout
SIVACON 8PS - Configuring with LX system
102 Configuration Manual, 10/2011, A5E02194899-02
Design of straight trunking units, optional lengths
Measuring and calculating optional lengths on the assembly site
The reference dimension for configuring is from joint block centre to joint block centre.
Example: Custom length

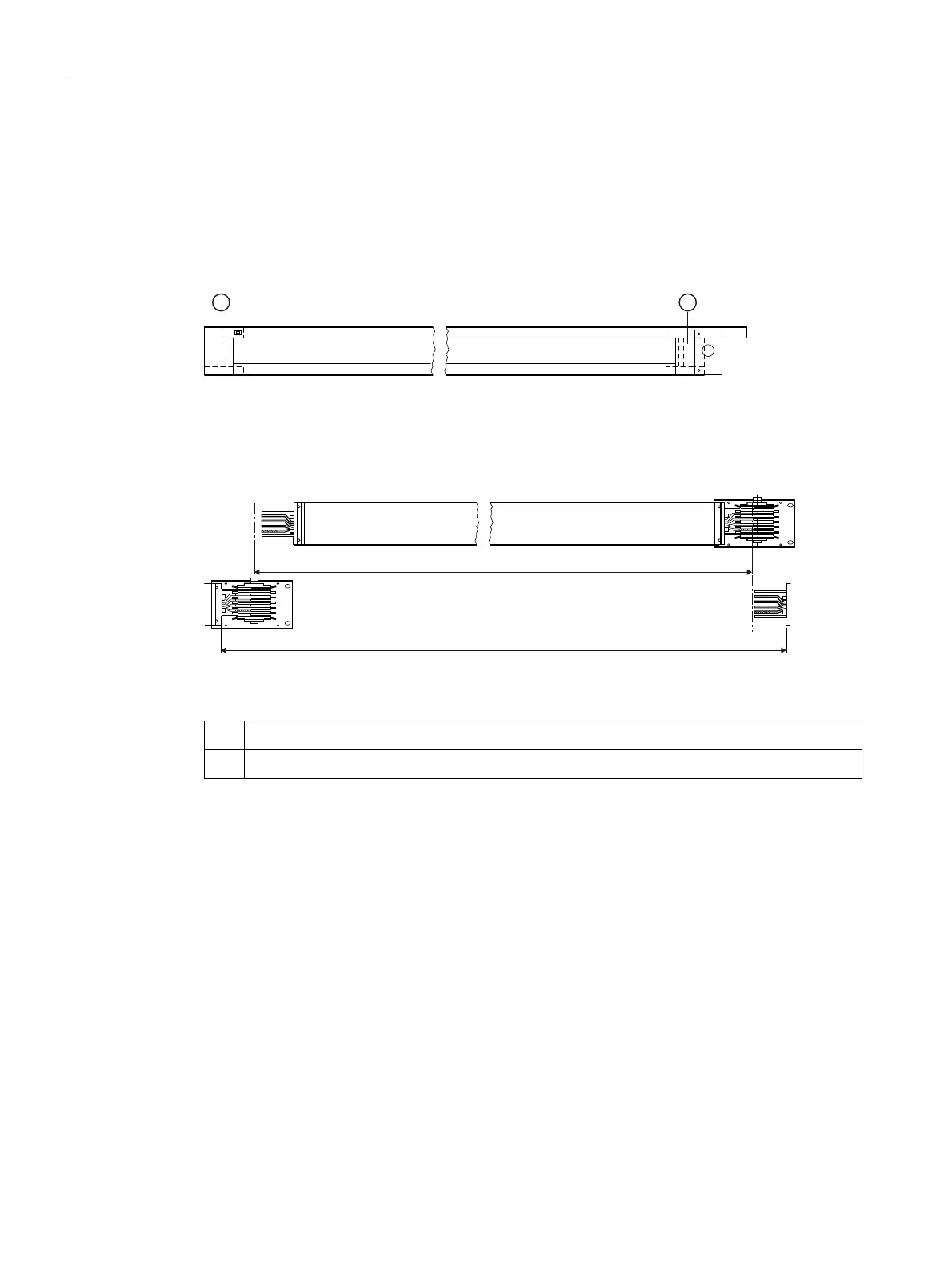

Figure 6-9 Side view
Measuring of custom lengths
:
D
Figure 6-10 Plan view
①
End of trunking unit without joint block
②
End of trunking unit with joint block
Dimension a is measured between the metal edges at the assembly site. The configuring
dimension W of the trunking unit is calculated as follows:
W [m] = a [m] – 0.23 [m]
