Product selection
4.3 Selection tables
SIVACON 8PS - Configuring with LX system
Configuration Manual, 10/2011, A5E02194899-02
31
4.3 Selection tables

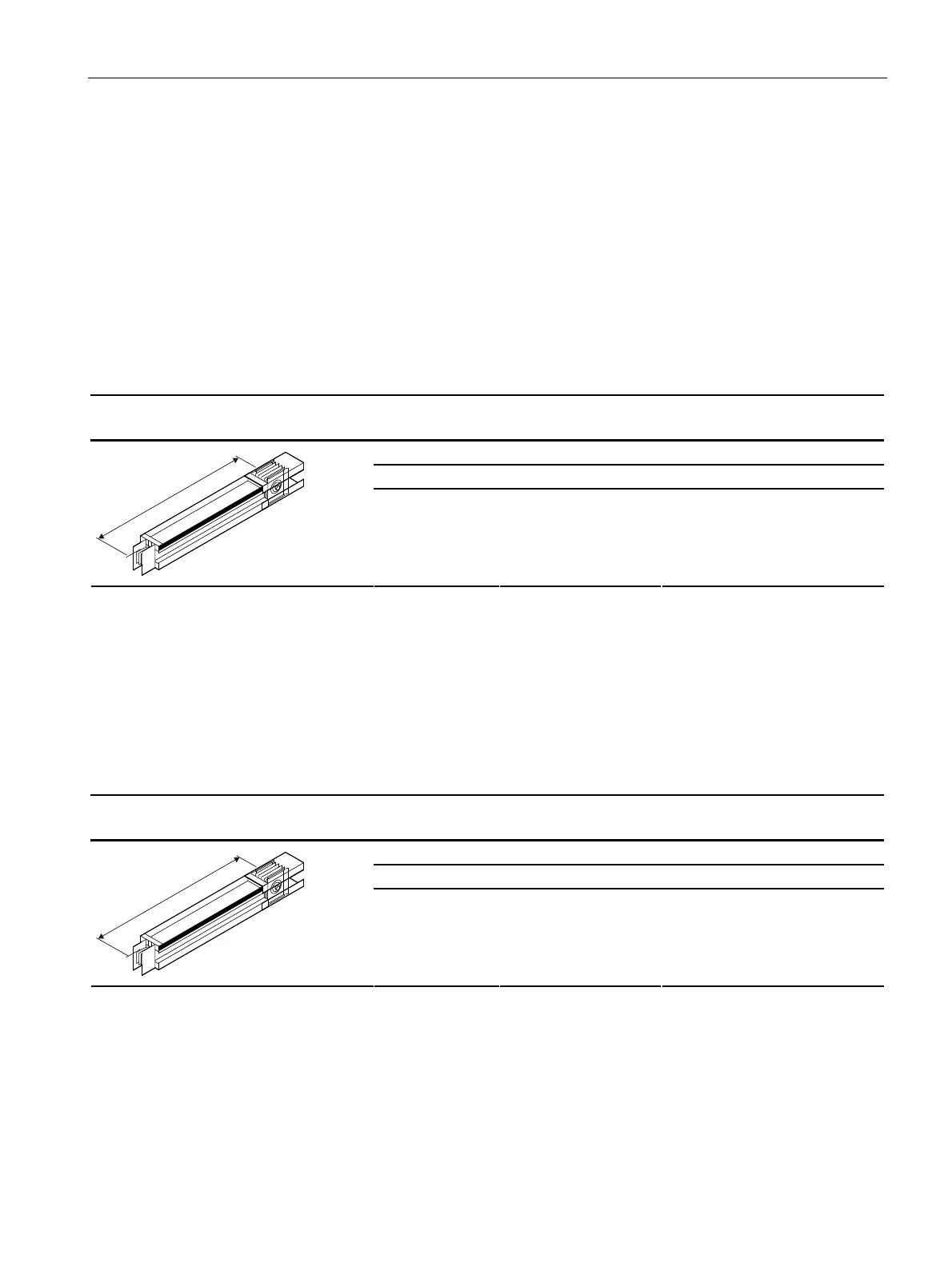

4.3.1 Straight trunking units
4.3.1.1 Straight trunking units without tap-off points
Standard lengths
Length L
[m]
Type
1)
Type suffix fire barrier
2)
3.0 LX.....-3 +LX.....-S120-X*
2.0 LX.....-2 +LX.....-S120-X*
/
1.0 LX.....-1
1)
See type code 1
2)
See type code 2
*
Complete type with relevant dimensions (e.g. LX....-1W0.76)
Optional lengths
Length W
[m]
Type
1)
Type suffix fire barrier
2)
0.35...0.99 LX.....-1W*
1.01...1.99 LX.....-2W* +LX.....-S120-X*
3)
:
2.01...2.99 LX.....-3W* +LX.....-S120-X*
1)
See type code 1
2)
See type code 2
3)
Fire barrier possible from optional length W = 1.04 m
*
Complete type with relevant dimensions (e.g. LX....-1W0.76)
