Siemens SIVACON 8PS User Manual

Dimension drawings
8.3 Feeder units
SIVACON 8PS - Configuring with LX system
170 Configuration Manual, 10/2011, A5E02194899-02

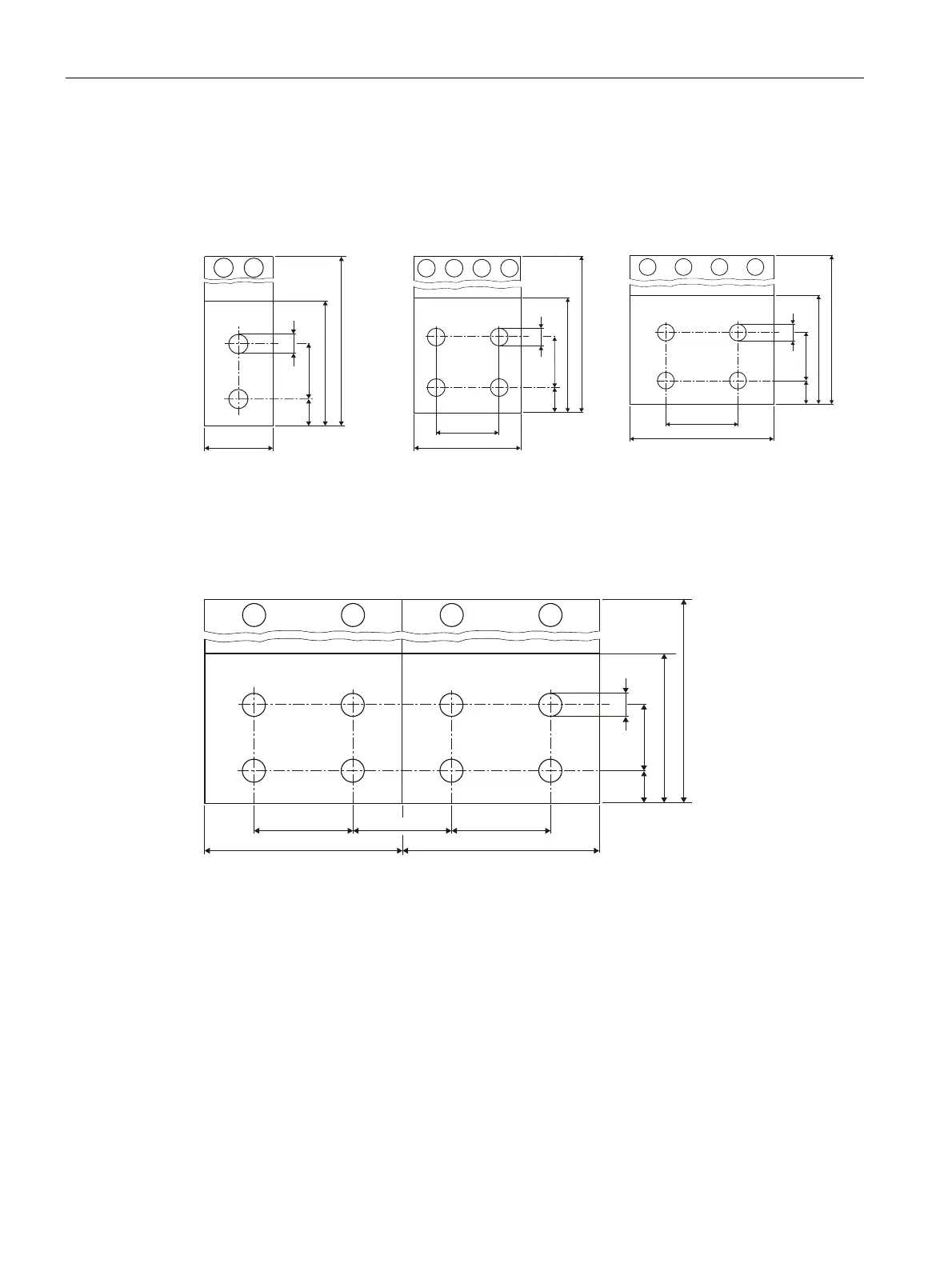

8.3.1.7 Connection tags
Connection tags L1, L2, L3, PEN, N

169B






169B







169B






Material thickness 10 mm Material thickness 15 mm Material thickness 15 mm
LXA01..
LXC01..
LXA02..
LXC02..
LXA04..
LXC03..
LXC04..
LXA05..
LXC05..
LXA06..
LXC06..
LXA07..
LXC07..


169B








Material thickness 15 mm
LXA08..
LXC08..
LXA09..
LXC09..
LXA10..
