Configuration
6.2 Configuring the busbar run layout
SIVACON 8PS - Configuring with LX system
110 Configuration Manual, 10/2011, A5E02194899-02
6.2.2.2 Planning horizontal busbar runs
General procedure
The following applies when considering the layout of the busbar run:
● Acquisition of the busbar elements of the run: Feeder units, junction units and end cap
● Calculation of the run lengths between the trunking elements
● Providinig feeder units with fixed points
● Dividing large run lengths into sub-lengths using fixed points.
● Placing expansion compensation in the centre between two fixed points.

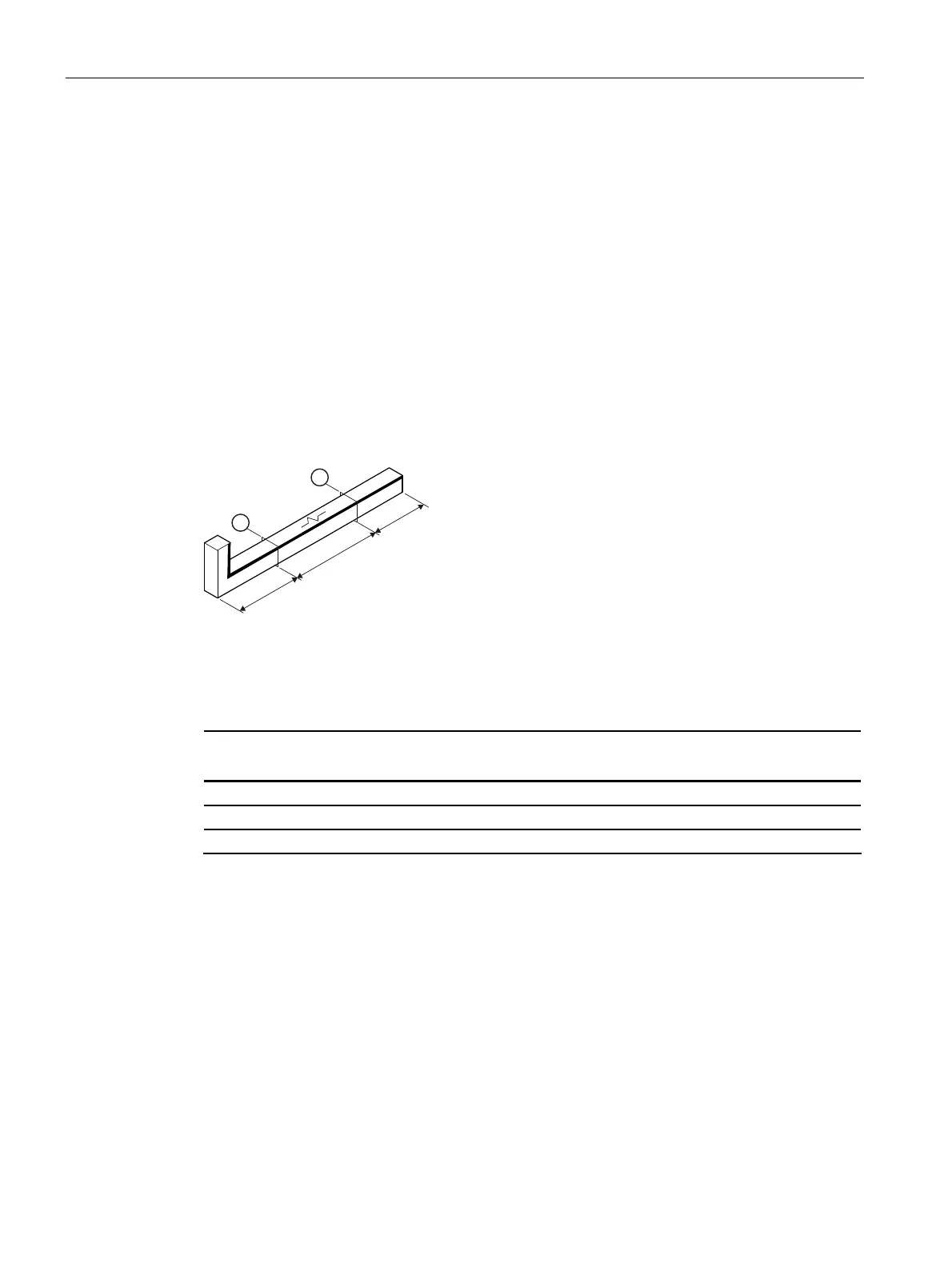

Configuration between junction unit and end cap
/
/
/
① Fixed point
L1 = max. 15 m
L2 = max. 30 m
L3 = max. 40 m
Run length L
[m]
Number of fixed points Number of expansion
compensation units
≤ 40 0 0
≤ 55 1 0
≤ 85 2 1
