Siemens SIVACON 8PS - Incoming Cable Connection Units

Product selection
4.3 Selection tables
SIVACON 8PS - Configuring with LX system
Configuration Manual, 10/2011, A5E02194899-02
55
4.3.3.2 Incoming cable connection units
Cable entry options
System Max. mm
2
LX.01 to LX.02 4 x 300
LX.03 to LX.05 6 x 300
LX.06 to LX.07 8 x 300

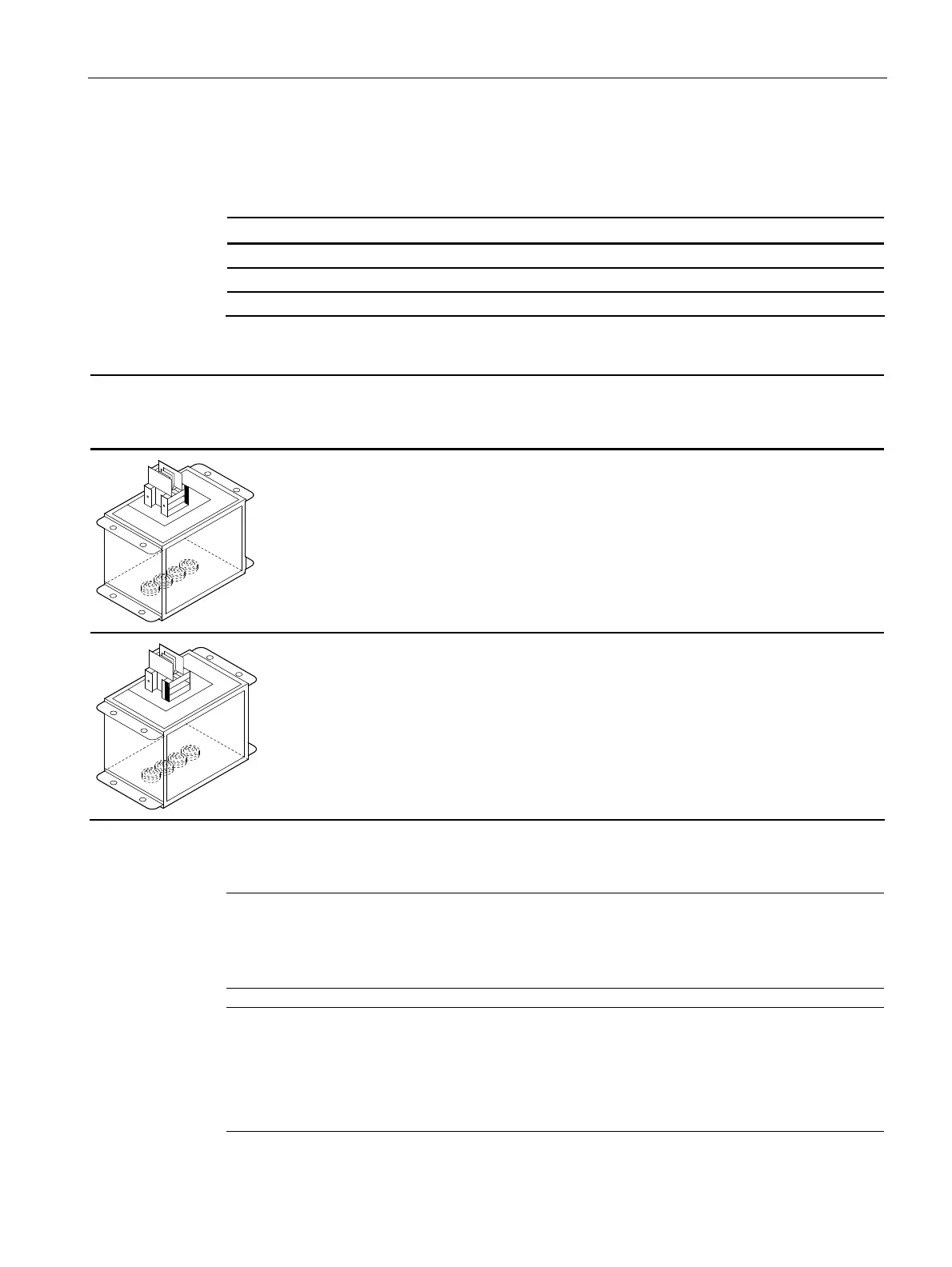

Cable feeder units
Phase sequence of the busbar package for LX connection Type
1)
Type suffix
Base plate
Aluminium
LX.....-KE1 +LX-BPAL
LX.....-KE2 +LX-BPAL
1)
See type code 1
Note
Single-core cable entries
In the case of single-core cable entries, always specify the type suffix "Base plate
aluminium" LX-BPAL.
Note
Incoming cable connection units on request
Incoming cable connection units are only available on request for the following systems:
● Double systems LX.08.. to LX.10..
● Systems with conductor configurations of the key digits 30, 52, 53, 54, 61 and 62.
