Product description
3.5 System sizes and structure
SIVACON 8PS - Configuring with LX system
Configuration Manual, 10/2011, A5E02194899-02
21
3.5 System sizes and structure
Sizes
Sizes are dependent upon rated current and conductor material. In total, there are six sizes.
Four sizes are set up as single systems and two as double systems.
Single systems comprise one enclosure with between 3 and 6 aluminium or copper bars.
Double systems have between 6 and 12 bars in two enclosures.
The precise number of bars is determined by the required conductor configuration.

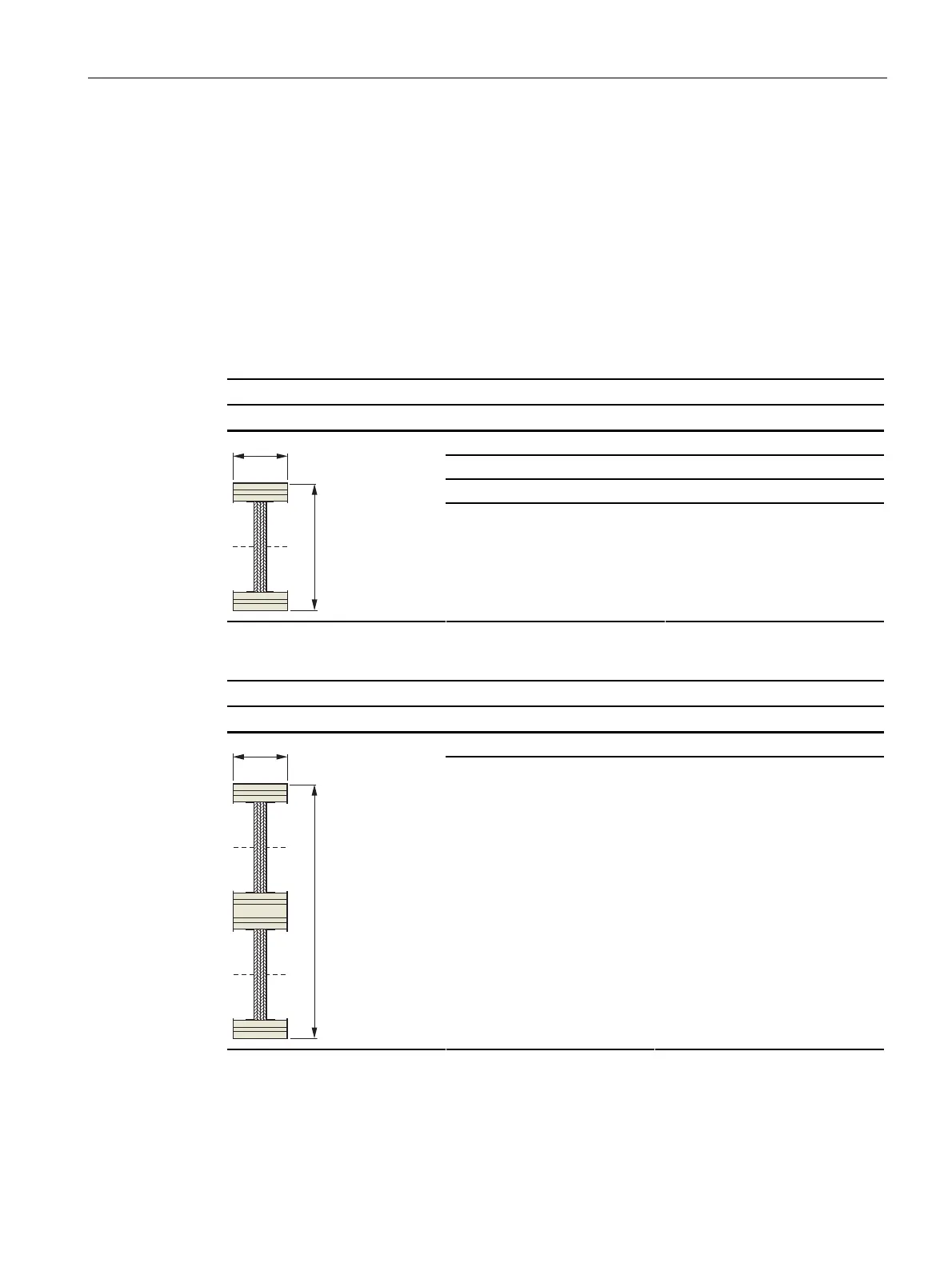

Sizes (H x W
1)
), single system
Height H [mm] System
137 LXA(C)01, LXA(C)02
162 LXC03, LXA(C)04
207 LXA(C)05
+
287 LXA(C)06, LXA(C)07
1)
Width is always 145 mm
Sizes (H x W
1)
), double system
Height H [mm] System
439 LXA(C)08
+
599 LXA(C)09, LXA10
1)
Width is always 145 mm
