Siemens SIVACON 8PS User Manual

Dimension drawings
8.4 Tap-off units
SIVACON 8PS - Configuring with LX system
190 Configuration Manual, 10/2011, A5E02194899-02

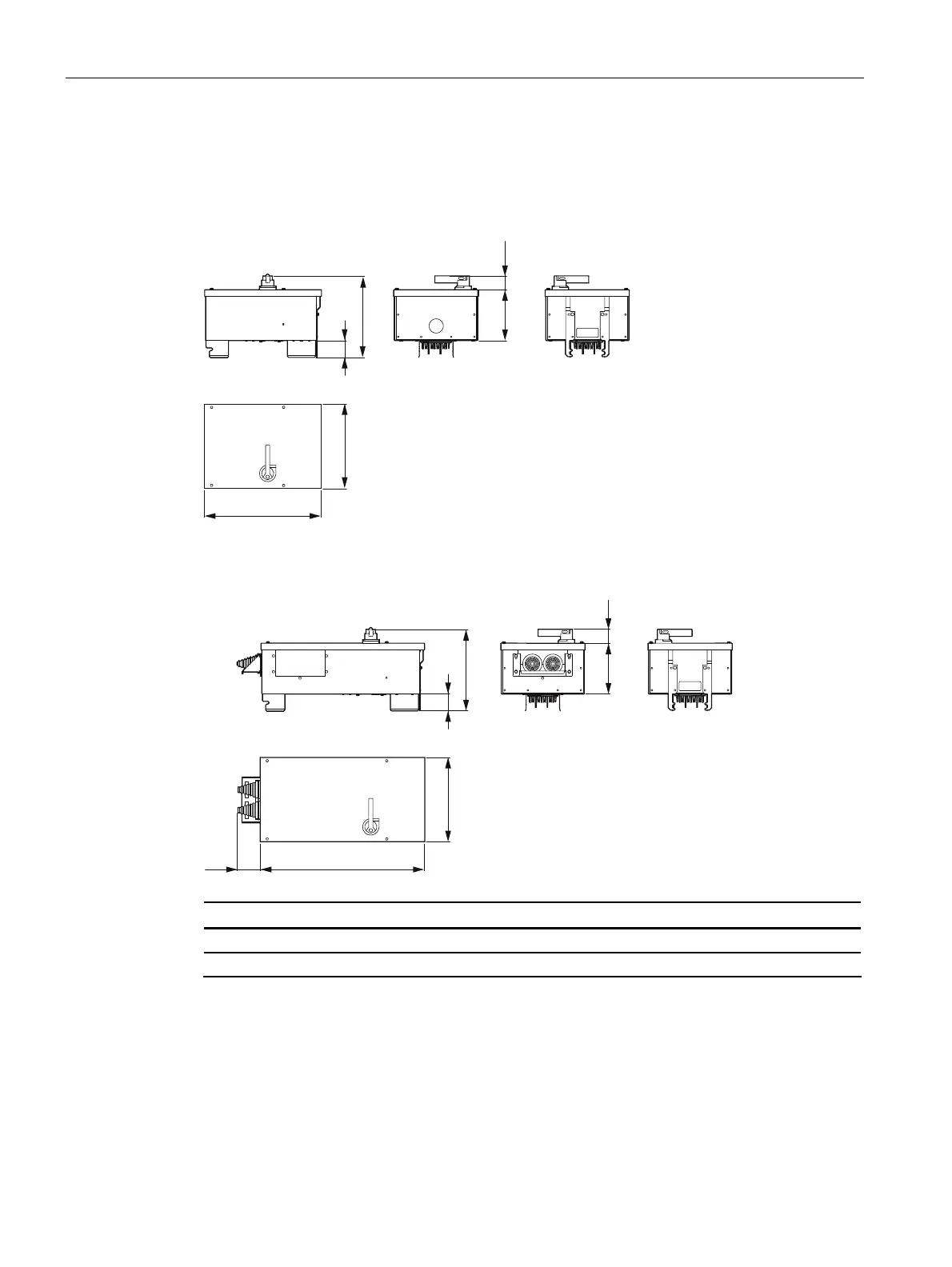

8.4.2 Tap-off units with fuse switch disconnector
8.4.2.1 Size 1 (125 A and 250 A)






8.4.2.2 Size 2 or 3 (400 A and 630 A)




D
E
F
Type a b c
LX-AK5(6)/FSH-400IEC(BS)-3(4)S 192 328 415
LX-AK5(6)FSH-630IEC(BS)-3(4)S 282 418 590
