6.2 Configuring the busbar run layout
SIVACON 8PS - Configuring with LX system
Configuration Manual, 10/2011, A5E02194899-02
101
6.2 Configuring the busbar run layout
6.2.1 Configuring horizontal busbar runs
6.2.1.1 Reference dimensions for configuring
Design of straight trunking units, standard lengths
The reference dimension for configuring is from joint block centre to joint block centre.
Dimensioning of the tap-off point): Starting from the end of the trunking unit without joint
block (designated by –)
Example: Standard length with tap-off points

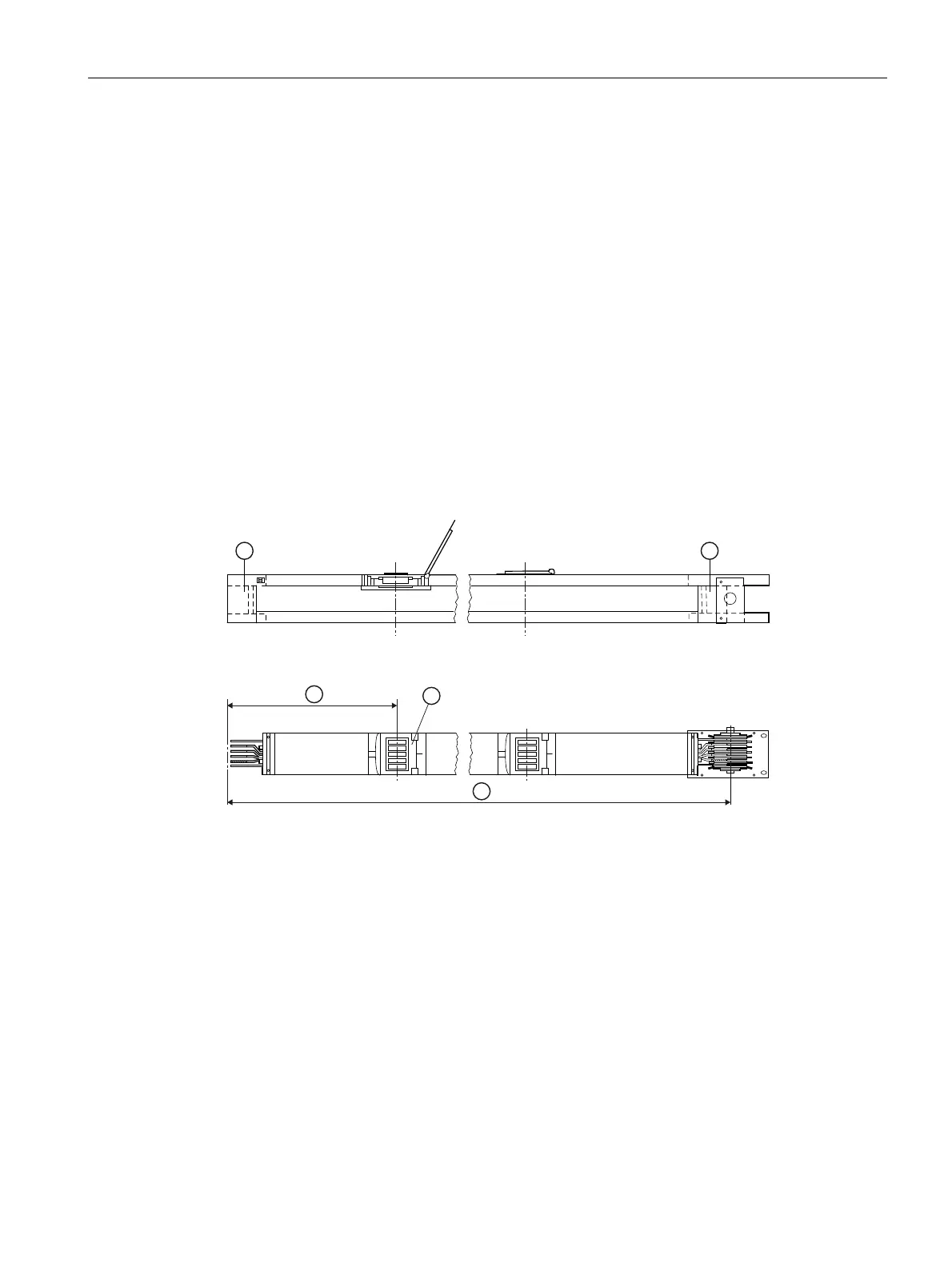

Figure 6-7 Side view
① End of trunking unit without joint block
② End of trunking unit with joint block
③ Tap-off point
④ Configuring dimension centre of tap-off point
⑤ Configuring dimension, length of the straight trunking unit
Figure 6-8 Plan view
