Siemens SIVACON 8PS User Manual

Product selection
4.3 Selection tables
SIVACON 8PS - Configuring with LX system
36 Configuration Manual, 10/2011, A5E02194899-02

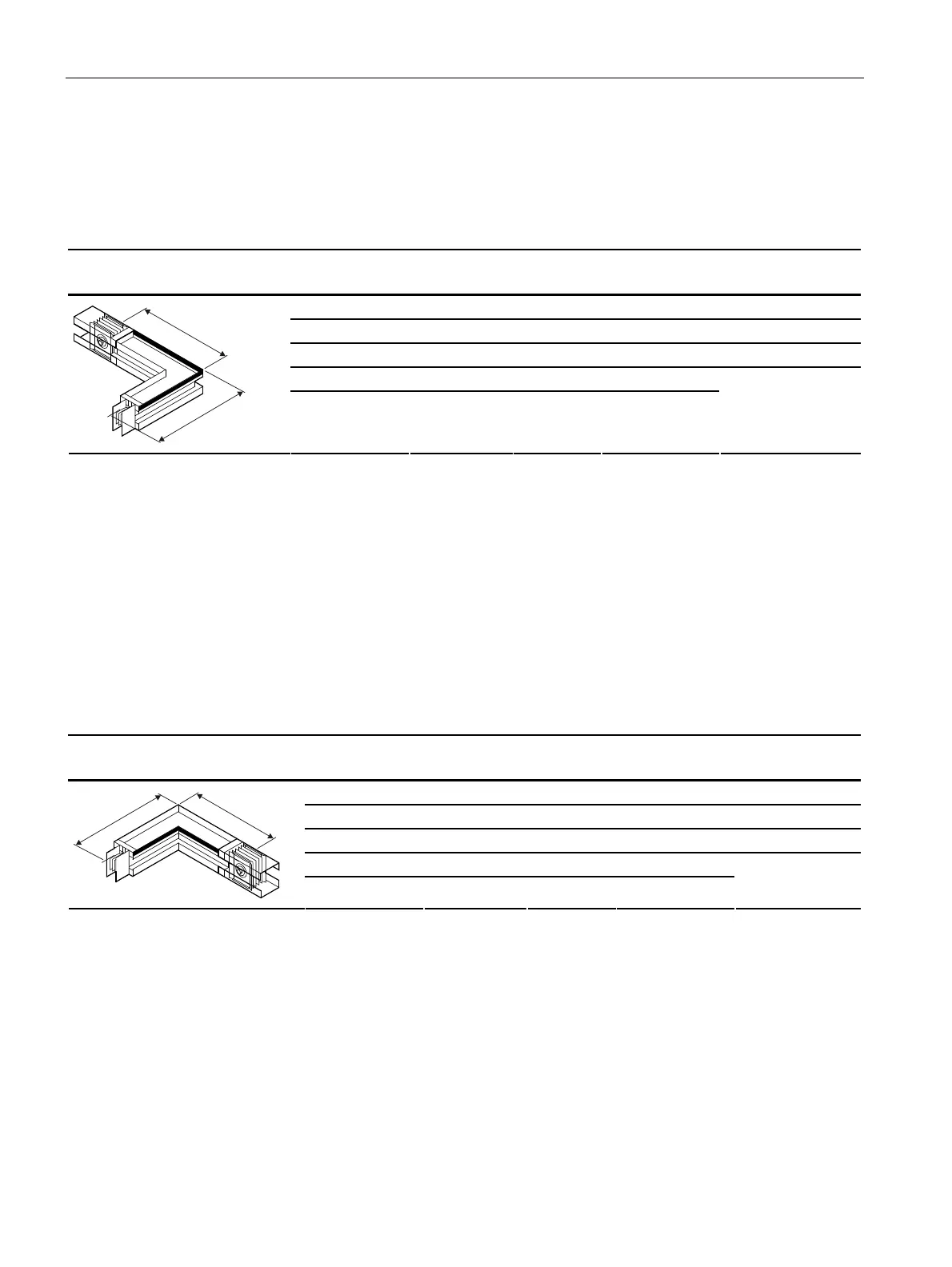

4.3.2 Junction units
Elbow left
System Length X
[m]
Length Y
[m]
Type
1)
Type suffix fire
barrier
2)
LX.01 to LX.10 0.35 0.35 LX…..-LL
LX.01 to LX.10 0.35 0.71…1.2
4)
LX…..-LL-YB* +LX…..-S120-X*
LX.01 to LX.10 0.71…1.2
3)
0.35 LX…..-LL-XB* +LX…..-S120-X*
LX.01 to LX.10 0.35 0.36
5)
…0.7 LX…..-LL-Y*
;
<
LX.01 to LX.10 0.36
5)
…0.7 0.35 LX…..-LL-X*
1)
See type code 1
2)
See type code 2
3)
Fire barrier possible on X dimension
4)
Fire barrier possible on Y dimension
5)
Shorter lengths on request
*
Complete type with relevant dimensions (e.g. LX....-LL-YB0.80)
Elbow right
System Length X
[m]
Length Y
[m]
Type
1)
Type suffix fire
barrier
2)
LX.01 to LX.10 0.35 0.35 LX…..-LR
LX.01 to LX.10 0.35 0.71…1.2
4)
LX…..-LR-YB* +LX…..-S120-X*
LX.01 to LX.10 0.71…1.2
3)
0.35 LX…..-LR-XB* +LX…..-S120-X*
LX.01 to LX.10 0.35 0.36
5)
…0.7 LX…..-LR-Y*
;
<
LX.01 to LX.10 0.36
5)
…0.7 0.35 LX…..-LR-X*
1)
See type code 1
2)
See type code 2
3)
Fire barrier possible on X dimension
4)
Fire barrier possible on Y dimension
5)
Shorter lengths on request
*
Complete type with relevant dimensions (e.g. LX....-LR-YB0.80)
