Installation and mounting
5.5 Fixing a horizontal busbar run
SIVACON 8PS - Configuring with LX system
Configuration Manual, 10/2011, A5E02194899-02
77
5.5 Fixing a horizontal busbar run
Mounting
The busbar run is secured with special fixing brackets (LX-BH, LX..-BF or LX-K) that enable
the busbar run to "slide" when it expands during operation.
You can find the fixing distance in Chapter "LXA/LXC busbar trunking systems" – Technical
data. It is necessary here for each trunking unit to be supported at least once with a fixing
bracket.
Fixing distances
● Max. distance between two fixing points on the trunking unit
● Minimum distance between fixing point and centre of joint block.
PP
P
/;%+)

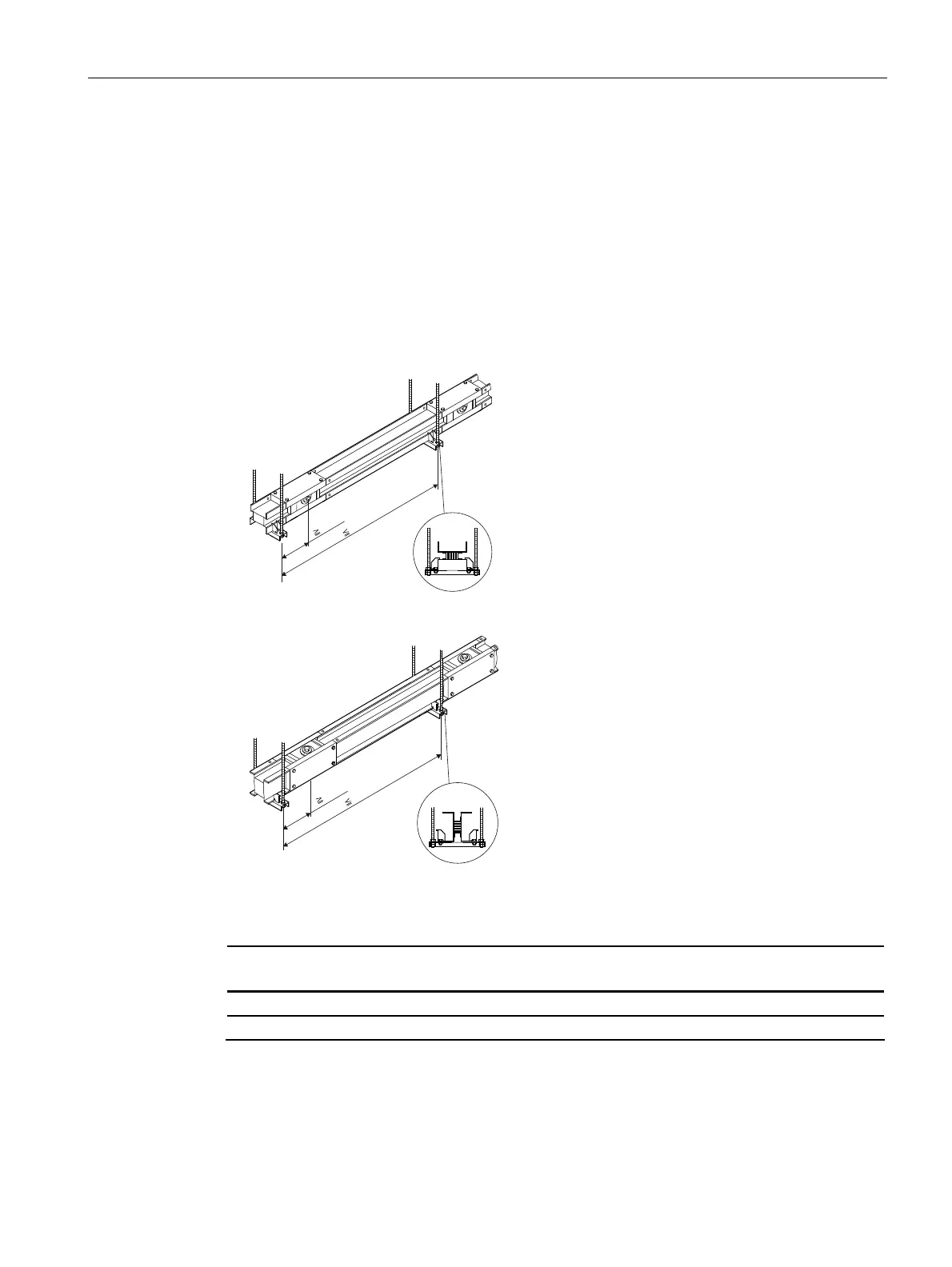

Figure 5-4 Busbar run horizontal edgewise
/;%))
P
PP
Figure 5-5 Busbar run horizontal flat
The following applies for the horizontal flat installation position:
System size Max. fixing distance
[m]
LX.01 to LX.04 2
LX.05 to LX.10 3
Solution suggestions
You can find practice-oriented solution suggestions for implementing fixed points with
supplied accessories in the installation manual "Installation with LX System"
(order number: A5E01120816).
