Dimension drawings
8.3 Feeder units
SIVACON 8PS - Configuring with LX system
166 Configuration Manual, 10/2011, A5E02194899-02
8.3.1.3 Universal busbar connection unit AS2
//
,
D
3(11
E
E
Q
S
S
3( /
K
K

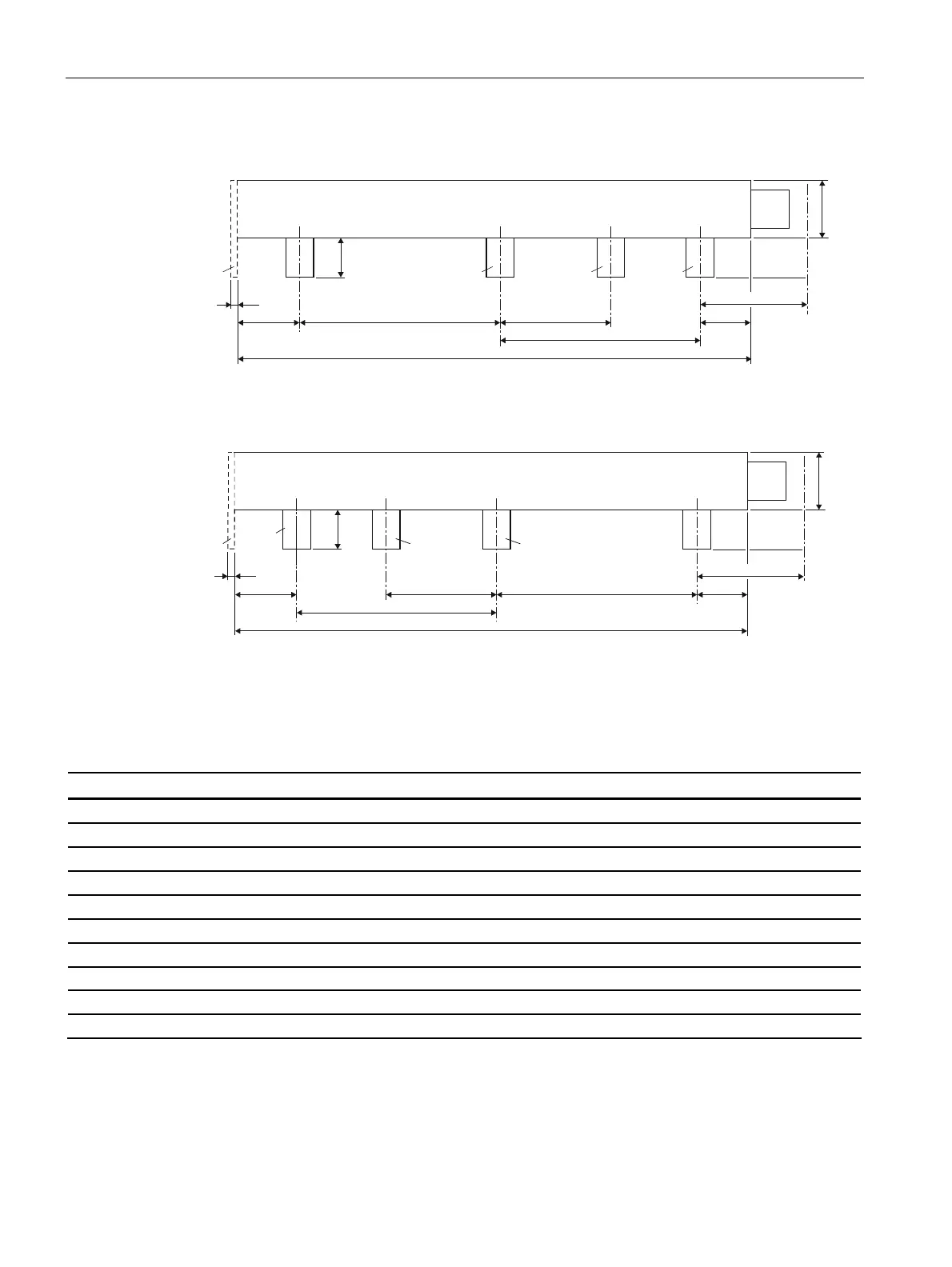

Figure 8-15 LX.....-AS2(+LX-.E)/(+LX-.G)
//
,
D
3(11
E E
Q
S
S
3( /
K
K
1)
Reference dimension for configuring = centre of joint block to centre of 1st connection tag.
More detailed information: See Chapter Feeder units (Page 85).
2)
Total length l of the connection unit is the sum of the configured connection tag distances.
Figure 8-16 LX.....-AS2(+LX-.F)/(+LX-.H)
System a b1 b2 h1 h2 p min. p max. n min. n max.
LXA(C)01 255 140 140 137 96.5 450 750 150 400
LXA(C)02 255 140 140 137 96.5 450 750 150 400
LXA(C)03 255 140 140 162 96.5 450 750 150 400
LXA(C)04 255 140 140 162 96.5 450 750 150 400
LXA(C)05 255 140 140 207 96.5 450 750 150 400
LXA(C)06 255 140 140 287 96.5 450 750 155 400
LXA(C)07 255 140 140 287 96.5 450 750 155 400
LXA(C)08 315 200 200 439 96.5 550 750 275 400
LXA(C)09 315 200 200 599 96.5 550 750 275 400
LXA(C)10 315 200 200 599 96.5 550 750 275 400
