3.4 System description
SIVACON 8PS - Configuring with LX system
20 Configuration Manual, 10/2011, A5E02194899-02
3.4 System description

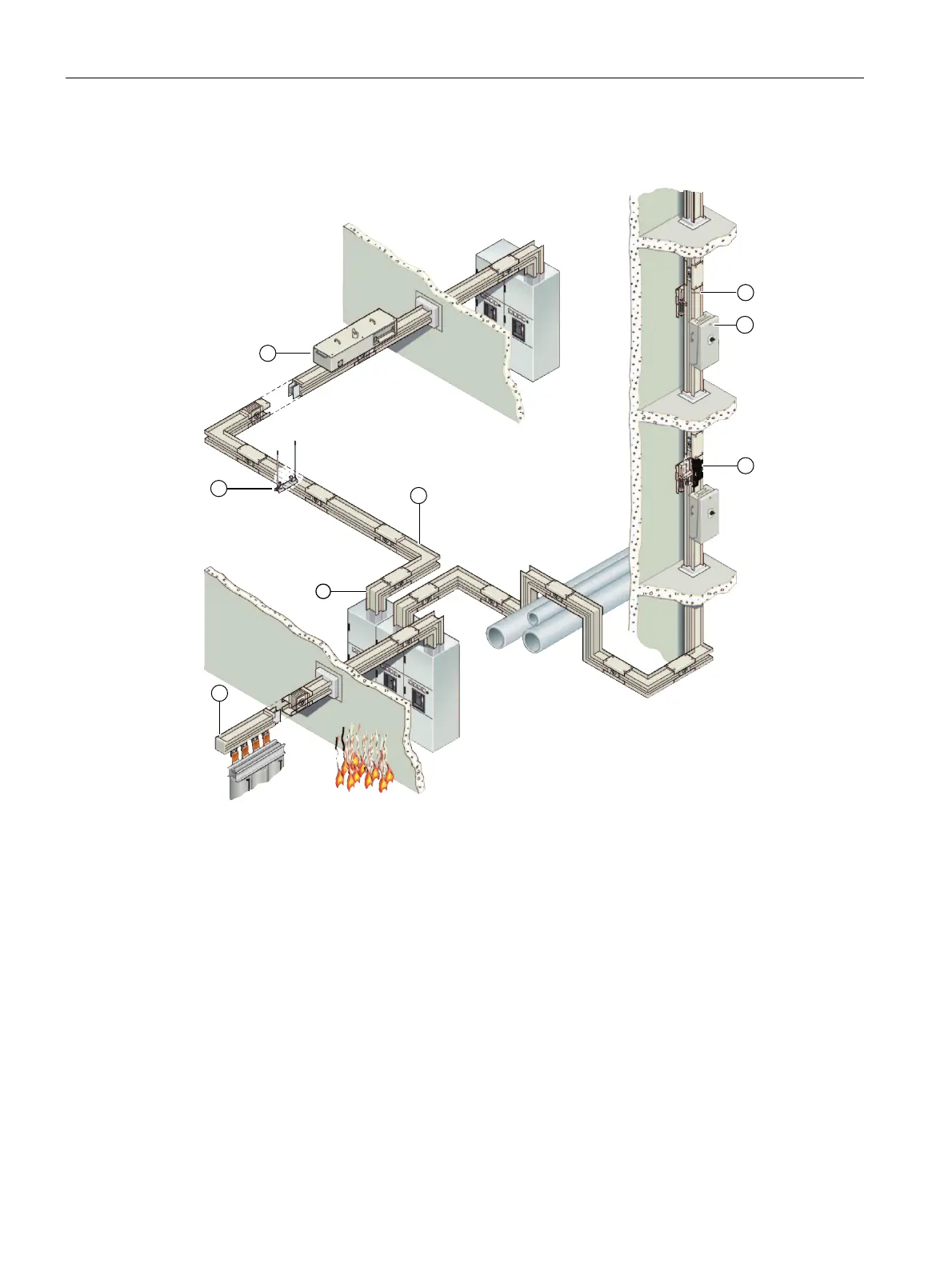

① Straight trunking units (with or without tap-off points)
② Tap-off units, can be connected whilst live
③ Tap-off units, permanently installed
④ Feeder units
⑤ Connection to Siemens power distribution boards
⑥ Junction units
⑦ Additional equipment for wall/ceiling mounting
Figure 3-2 Overview of LXA/LXC busbar trunking systems
The LX busbar trunking system is used for both power transmission and distribution. The
system is characterised by high flexibility as it is not tied to a specific position and is
particularly suitable for power distribution in multi-storey buildings. The high degree of
protection IP54 (IP55 on request) and tap-off units up to 1250 A also ensure reliable power
supply in industrial applications with high power requirements.
