6.2 Configuring the busbar run layout
SIVACON 8PS - Configuring with LX system
Configuration Manual, 10/2011, A5E02194899-02
105
6.2.1.3 Configuring tap-off units
Relationship between phase sequence and cable entry of the tap-off unit

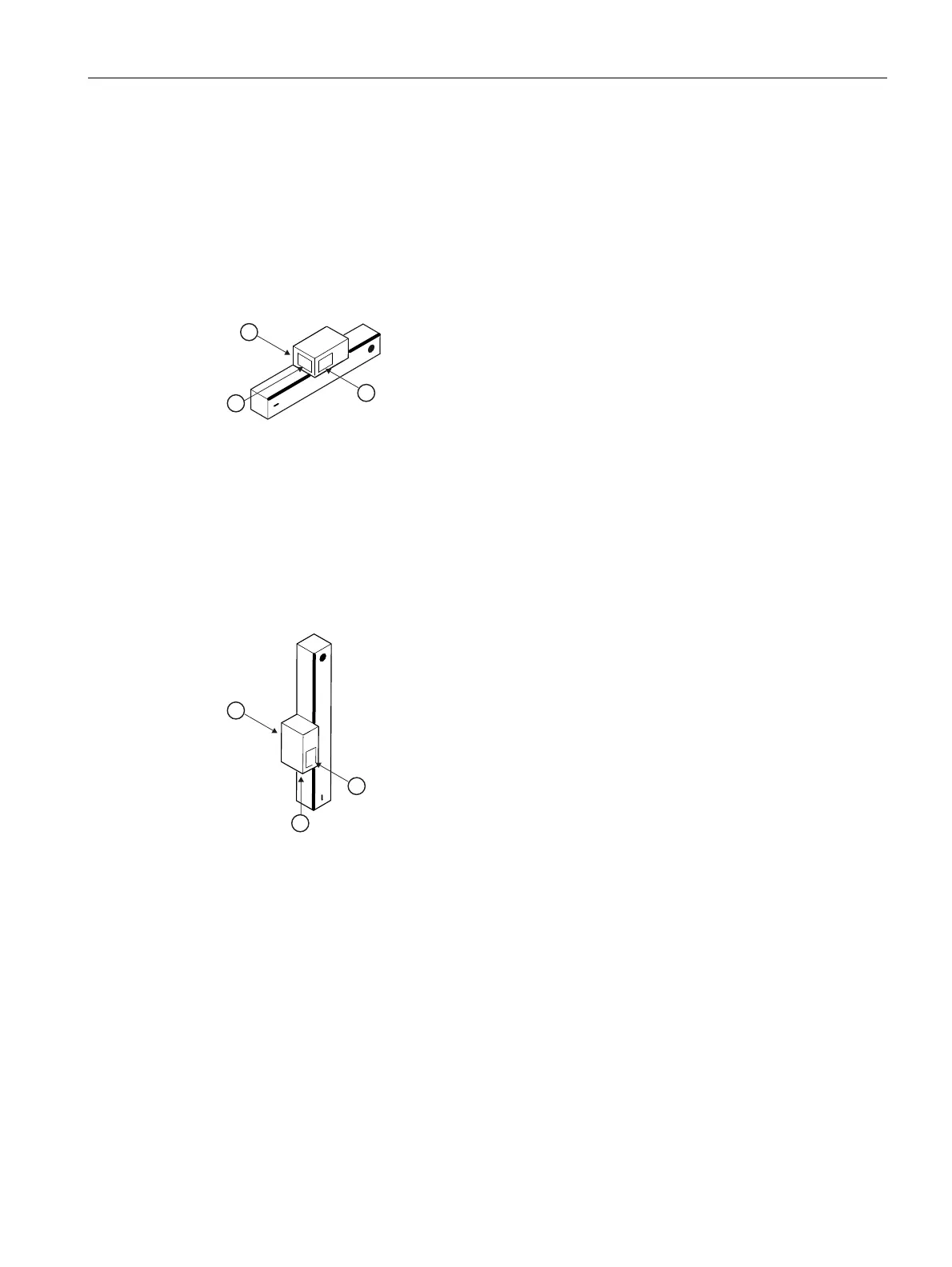

Horizontal installation
With view of the end of the trunking unit without mounted joint block and PEN (L1, N or PE)
on right. The cable entry is made on the front without mounted joint block, or from the side.



① Cable entry on front
② Cable entry from the side
Vertical installation
With vertical installation of the trunking unit, the PEN (L3, N or PE) must always be on the
right.
The end of the trunking unit without mounted joint block is underneath.
Cable entry is always from below or from the side.



① Cable entry on front
② Cable entry from the side
