Configuration
6.1 Basic knowledge for configuring
SIVACON 8PS - Configuring with LX system
82 Configuration Manual, 10/2011, A5E02194899-02
6.1.2 Junction units
Type determination
To determine the types of the junction units, the perspective is as follows:
● Edgewise busbars
● View of the end of the busbar without joint block
● PEN(N) position on right
● Busbar runs away from viewer
● Four basic junction units
Basic junction units
V Change of direction to front (top)
H Change of direction to rear (bottom)
R Change of direction to right
L Change of direction to left
Limb designations
The limbs of the junction unit have fixed designations:
X dimension Limb without mounted junction block
Y dimension Limb with mounted junction block
Z dimension Intermediate limb (if available)
Examples
Single junction units
In the case of single junction units, the direction of the Y dimension determines the type.
;
<
5

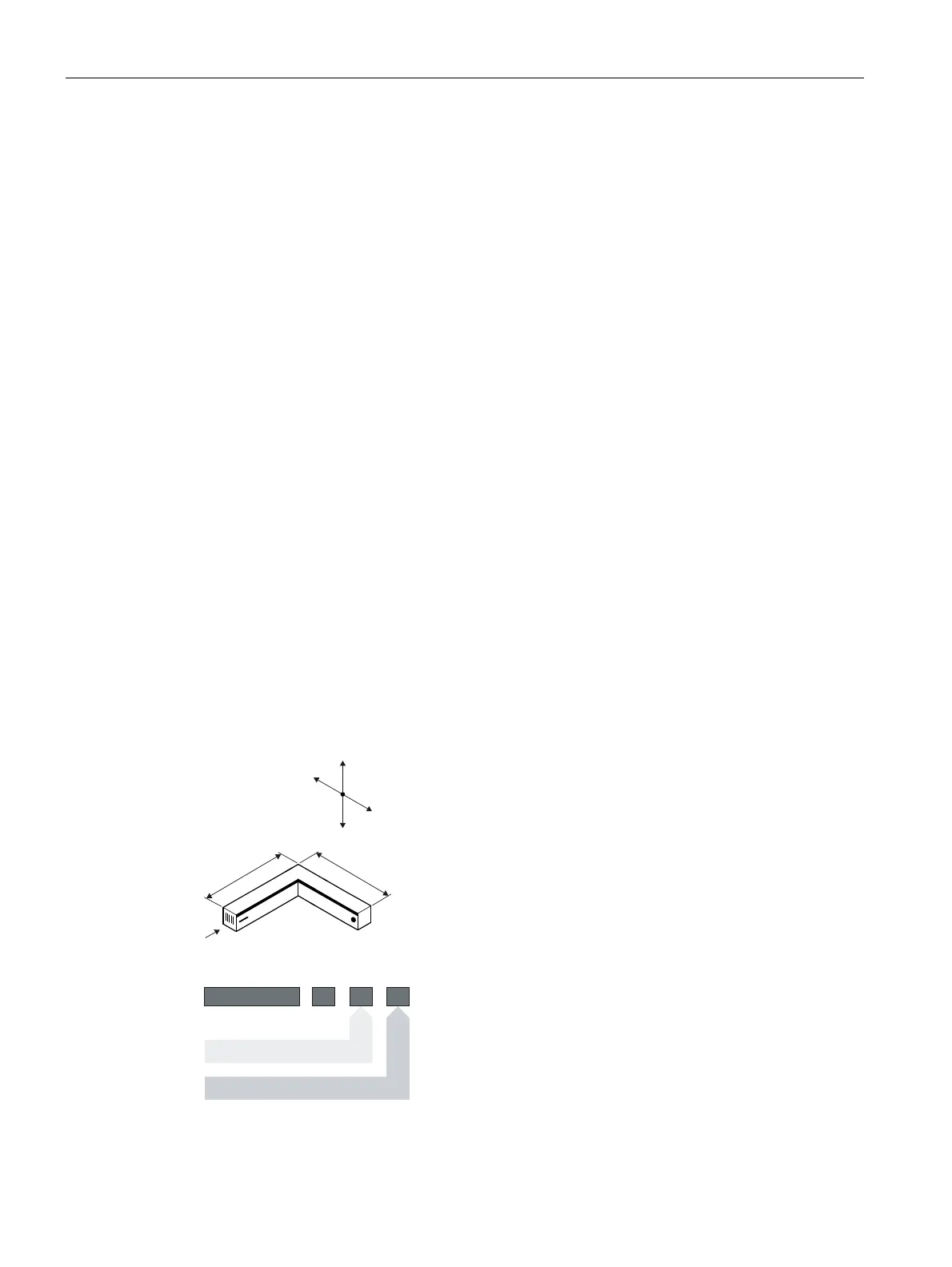

Figure 6-1 Elbow right
(OERZRUNQHH
&KDQJHRIGLUHFWLRQWRULJKW
/;$&
Offset junction units
