3.6 Conductor configuration
SIVACON 8PS - Configuring with LX system
Configuration Manual, 10/2011, A5E02194899-02
23
3.6 Conductor configuration

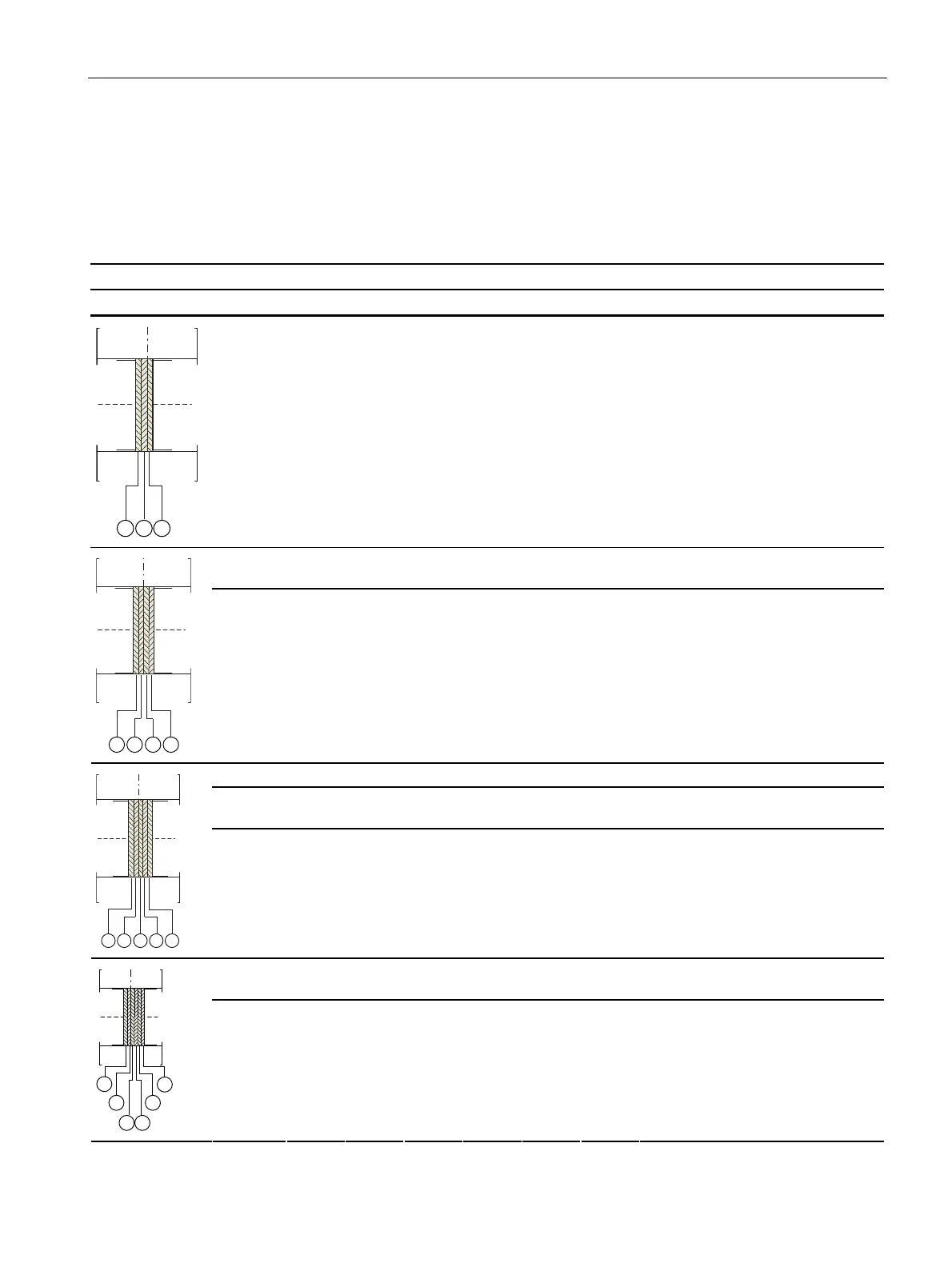

The LX busbar system is available with eight different conductor configurations dependent
upon system type, the size of the N and PE cross sections as well as whether or not an
additional insulated PE conductor (clean earth) has been included.
System Conductor configurations Enclosure
① ② ③ ④ ⑤ ⑥
LX...30 L1 L2 L3 - - - is the PE conductor
LX...41 L1 L2 L3 PEN - - Electrical connection between
enclosure and PEN
LX...51 L1 L2 L3 N - - is the PE conductor
LX...52 L1 L2 L3 N N - is the PE conductor
LX...53 L1 L2 L3 N PE - Electrical connection between
enclosure and PE
LX...61 L1 L2 L3 N Clean
earth
- is the PE conductor
LX...54 L1 L2 L3 N N PE Electrical connection between
enclosure and PE
LX...62 L1 L2 L3 N N Clean
earth
is the PE conductor
