Dimension drawings
8.1 Straight trunking units
SIVACON 8PS - Configuring with LX system
Configuration Manual, 10/2011, A5E02194899-02
161

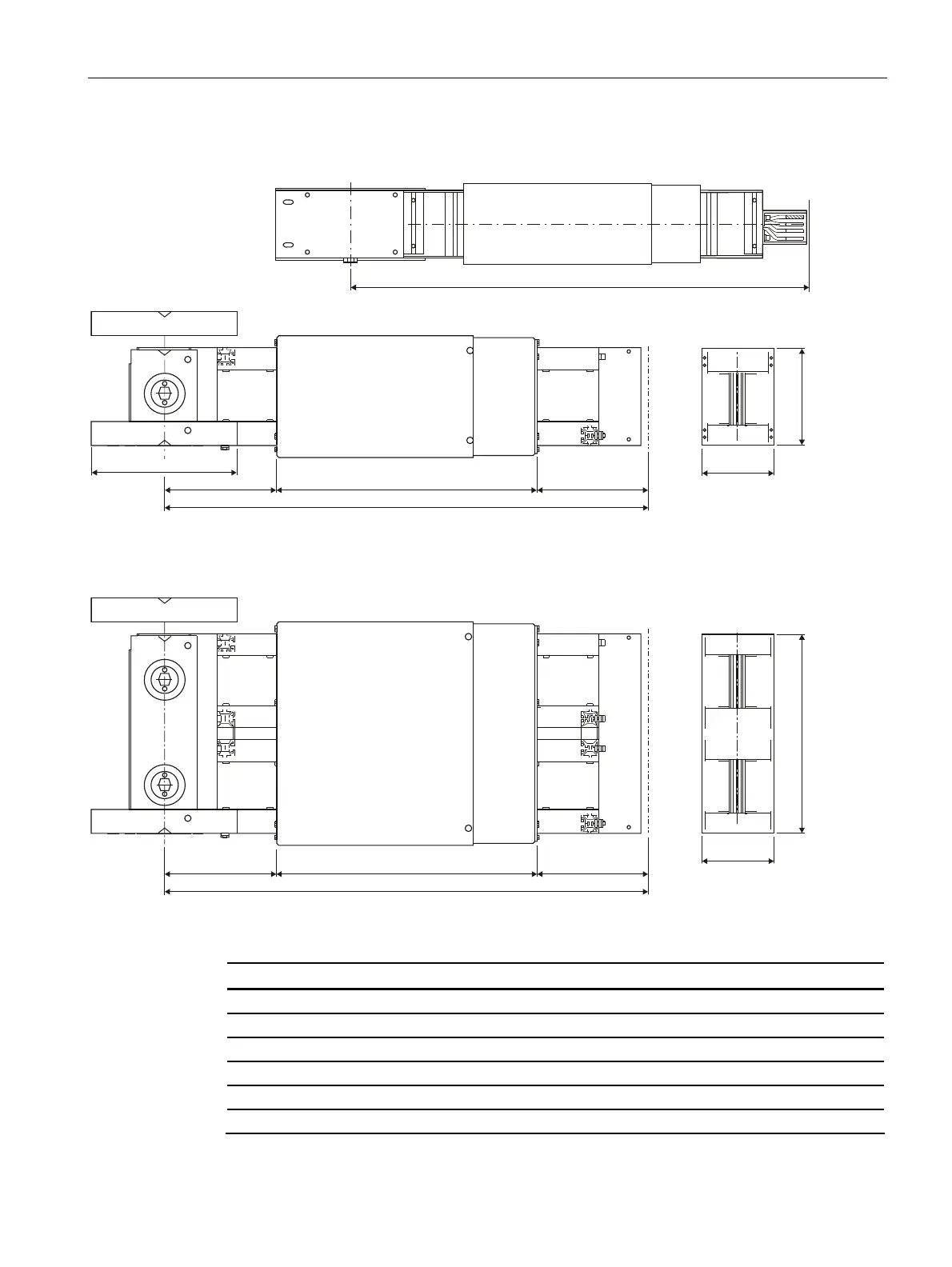

8.1.3 Straight trunking units with expansion compensation
169B
3(11
/
/
/

169B

 

E
D

Figure 8-5 Straight trunking units with expansion compensation LXA(C)01 to 07
169B


E
D


Figure 8-6 Straight trunking units with expansion compensation LXA(C)08 to 10
System a b
LXA(C)01, LXA(C)02 190 205
LXC03, LXA(C)04 215 205
LXA(C)05 260 205
LXA(C)06, LXA(C)07 340 205
LXA(C)08 492 205
LXA(C)09, LXA10 652 205
