5.6 Fixing a vertical busbar run
Fixing bracket and fixed point
The fixing bracket for vertical installation is dimensioned for carrying the weight of the busbar
run for a storey height of h = 3.40 m to 3.90 m. For this reason, the complete type code and
the use of tap-off units must be considered when determining the type.
The following applies for the fixing bracket at a storey height of h = 3.40 m to h = 3.90 m:
Size Unit quantity Type
LX.01 to LX.07 (single
systems)
1 LX.....-BV1 Power transmission
LX.08 to LX.10 (double
systems)
2 LX.....-BV1
LX.01 to LX.07 (single
systems)
1 LX.....-BV1-AK Power distribution
1)
LX.08 to LX.10 (double
systems)
2 LX.....-BV1-AK
1)
At least one tap-off unit per floor
Determination of the type of the fixed point is oriented around attachment to single systems
or double systems:
Size Type
LX.01 to LX.07 (single systems) LX-BV1FP1
LX.08 to LX.10 (double systems) LX-BV1FP2

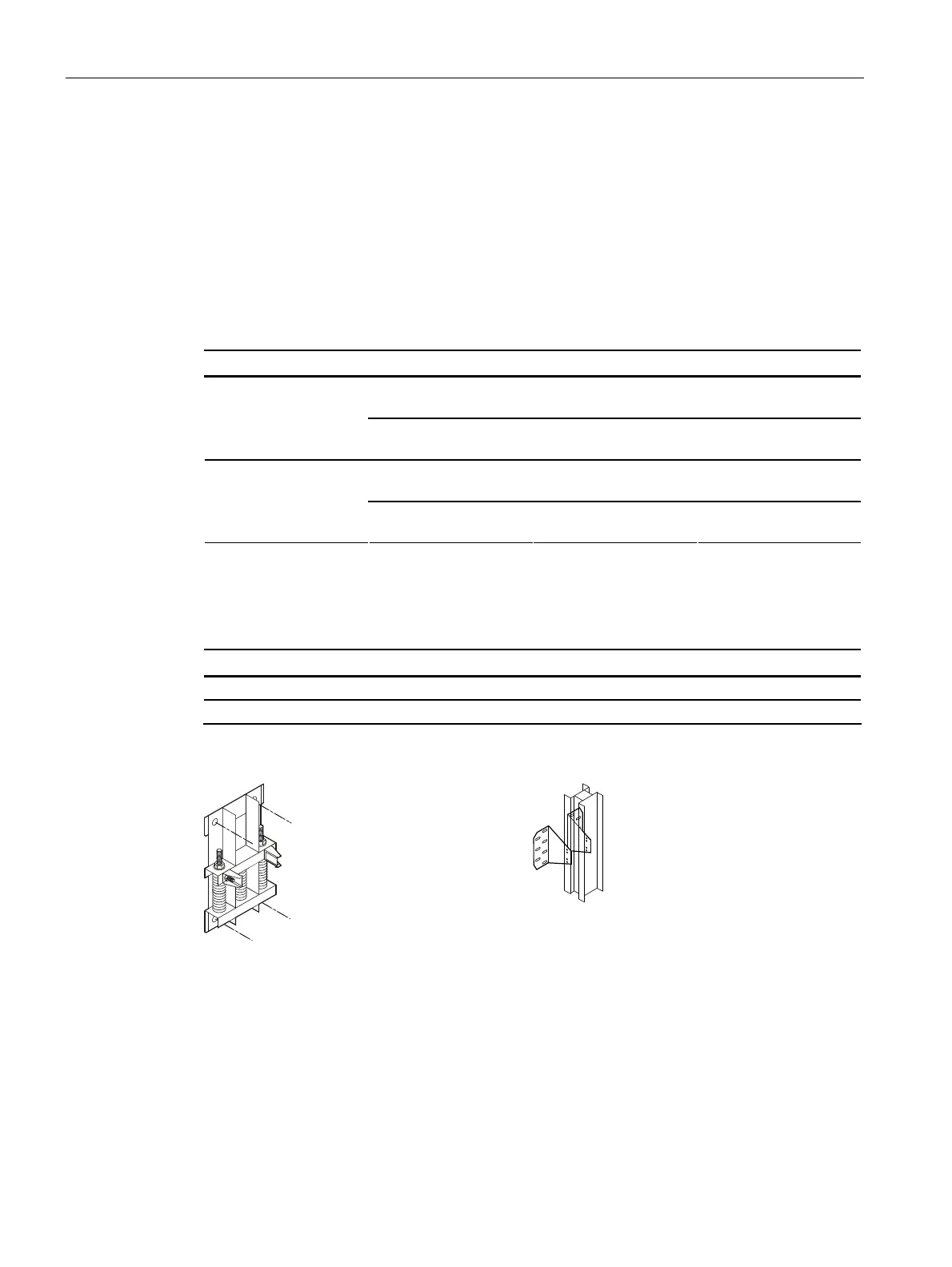

Fixing brackets for vertical installation Fixing brackets with fixed point for vertical
installation
