Product description
3.2 Performance capability of the individual SIVACON 8PS systems
SIVACON 8PS - Configuring with LX system
Configuration Manual, 10/2011, A5E02194899-02
17
3.2 Performance capability of the individual SIVACON 8PS systems
Performance overview for the CD-K, BD01 and BD2 systems
The following tables present an overview of the performance capabilities of the individual
SIVACON 8PS systems:

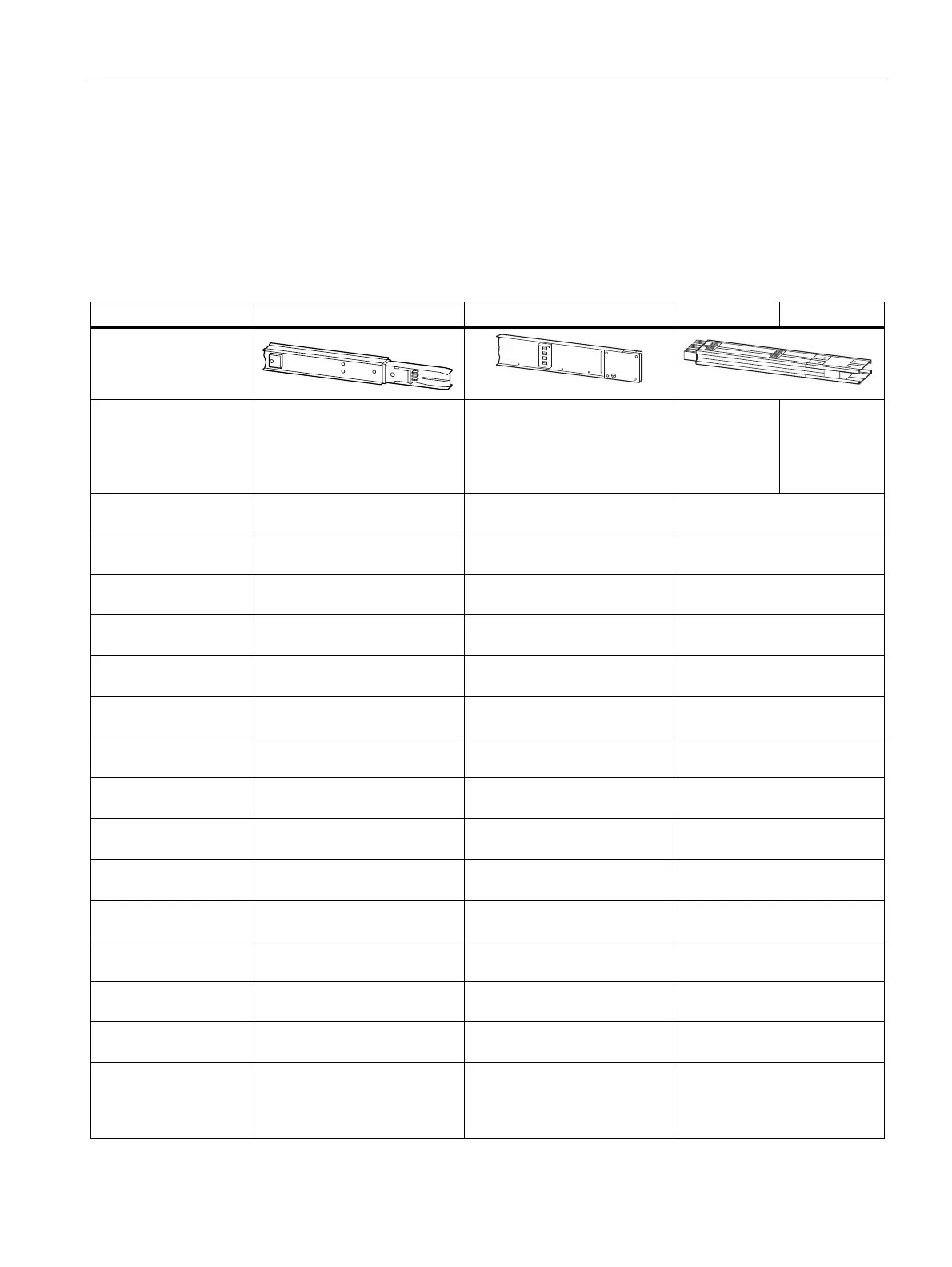

Table 3- 1 Performance data
Parameter CD-K BD01 BD2A BD2C
Rated current I e [A] 30
40
2 x 25
2 x 40
40
63
100
125
160
160 ... 400
500 ... 1000
160 ... 400
500 ... 1250
Rated operational
voltage [V AC]
400 400 690
Frequency [Hz]
50 ... 60 50 ... 60 50 ... 60
No. of active
conductors
2, 3, 4, 2 x 4
(PE = enclosure)
4
(PE = enclosure)
5
Degree of protection
Up to IP55 Up to IP55 Up to IP55
Max. ambient
temperature [°C]
+40 +40 +40
Max. ambient
temperature [°C]
-5 -5 -5
Mounting position Edgewise Edgewise, flat
(tap-off points pointing down)
Edgewise,
flat and vertical
Length [m] 2
3
2
3
0.5 ... 3.25
Tap-off points on one
side
Every 0.5 m or 1.0 m Every 0.5 m or 1.0 m —
Tap-off points on two
sides
Every 0.5 m or 1.0 m — Every 0.25 m or 0.5 m offset to
each other
Tap-off units
Up to 16 A Up to 63 A Up to 530 A
Conductor material
Insulated CU conductor Insulated CU or AL conductor AL or CU rails
Enclosure
Sheet steel enclosure, painted Sheet steel enclosure, painted Sheet steel enclosure, painted
Fire load [kWh / m] 0.1 ... 0.48 0.76 0.6 ... 0.67
(without tap-off points)
Special
features/communicatio
n capability
— Lighting control Lighting control
Remote switching and
signalling
Consumption recording
