Product description
3.2 Performance capability of the individual SIVACON 8PS systems
SIVACON 8PS - Configuring with LX system
18 Configuration Manual, 10/2011, A5E02194899-02
Performance overview for the LD, LX, LR systems
The following tables present an overview of the performance capabilities of the individual
SIVACON 8PS systems:

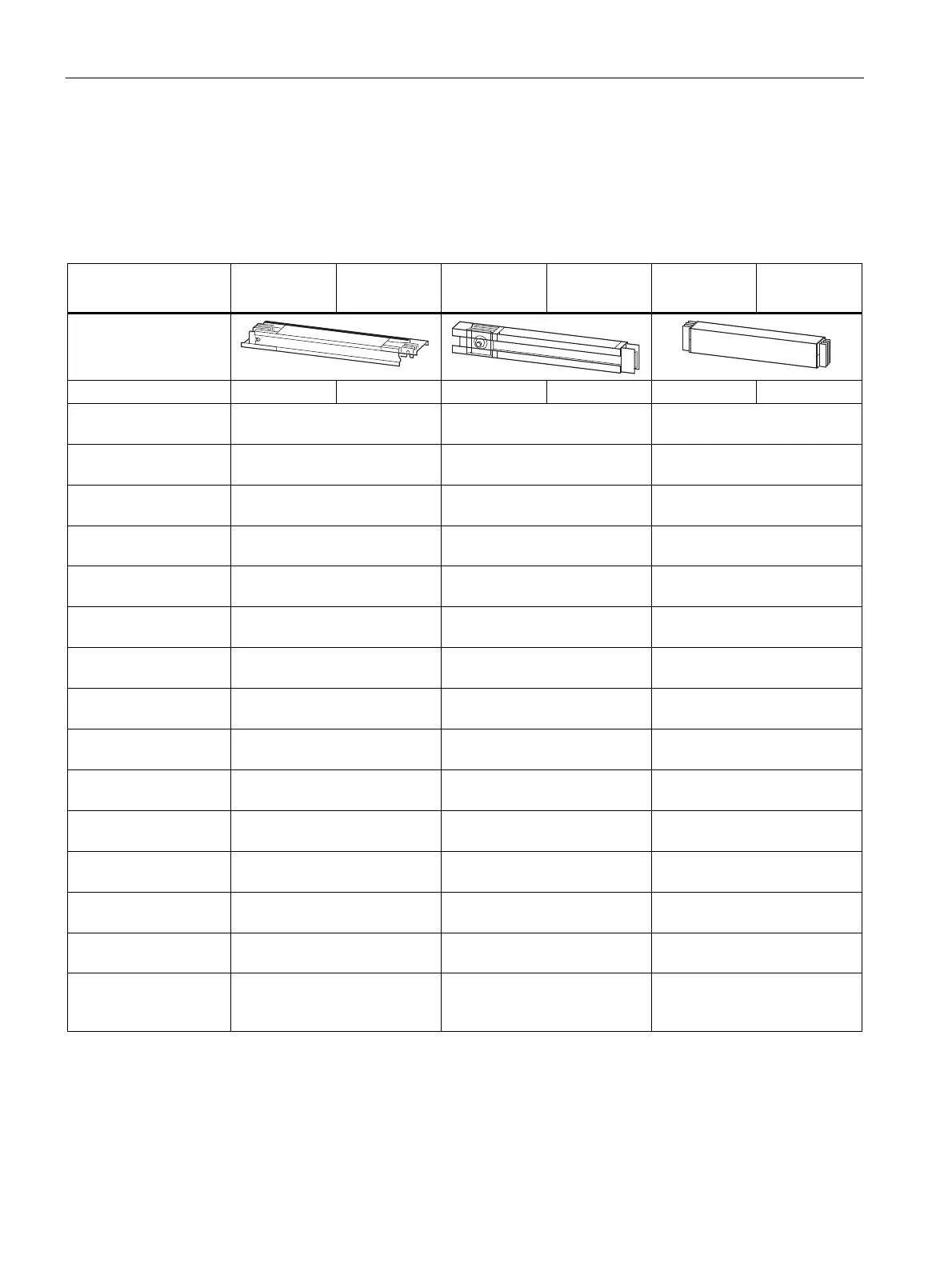

Table 3- 2 Performance data
Parameter LDA1
... LDA8
LDC1
... LDC8
LXA01
... LXA10
LXC01
... LXC09
LRA01
... LRA29
LRC01
... LRC29
Rated current I e [A] 1100 ... 4000 2000 ... 5000 800 ... 4500 1000 ... 6300 400 ... 4600 630 ... 6150
Rated operational
voltage [V AC]
1000 690 1000
Frequency [Hz]
50 ... 60 50 ... 60 50 ... 60
No. of active
conductors
4, 5 3, 4, 5, 6
(PE = enclosure)
4, 5
Degree of protection
Up to IP54 Up to IP55 IP68
Max. ambient
temperature [°C]
+40 +40 +40
Max. ambient
temperature [°C]
-5 -5 -5
Mounting position Horizontal,
edgewise and vertical
Horizontal,
edgewise and vertical
Horizontal,
edgewise and vertical
Length [m]
0.5 ... 3.2 0.35 ... 3 0.5 ... 3
Tap-off points on one
side
Every 1 m Every 0.5 m Selectable
Tap-off points on two
sides
Every 1 m Every 0.5 m —
Tap-off units
Up to 1250 A Up to 1250 A Up to 630 A
Conductor material Insulated
AL or CU rails
Insulated
AL or CU rails
AL or CU rails
Enclosure
Sheet steel enclosure, painted Aluminium enclosure, painted Epoxy resin, cast
Fire load [kWh / m] 4.16 ... 8.83
(without tap-off points)
1.83 ... 16.52
(without tap-off points)
13.01 ... 77.30
Special
features/communicatio
n capability
Remote switching and
signalling
Consumption recording
Remote switching and
signalling
Consumption recording
—
