Dimension drawings
8.3 Feeder units
SIVACON 8PS - Configuring with LX system
164 Configuration Manual, 10/2011, A5E02194899-02
8.3 Feeder units
8.3.1 Universal busbar connection units
8.3.1.1 Universal busbar connection unit AS1
//
,
D
3(11
E
E
S
S
S
3(
K
K

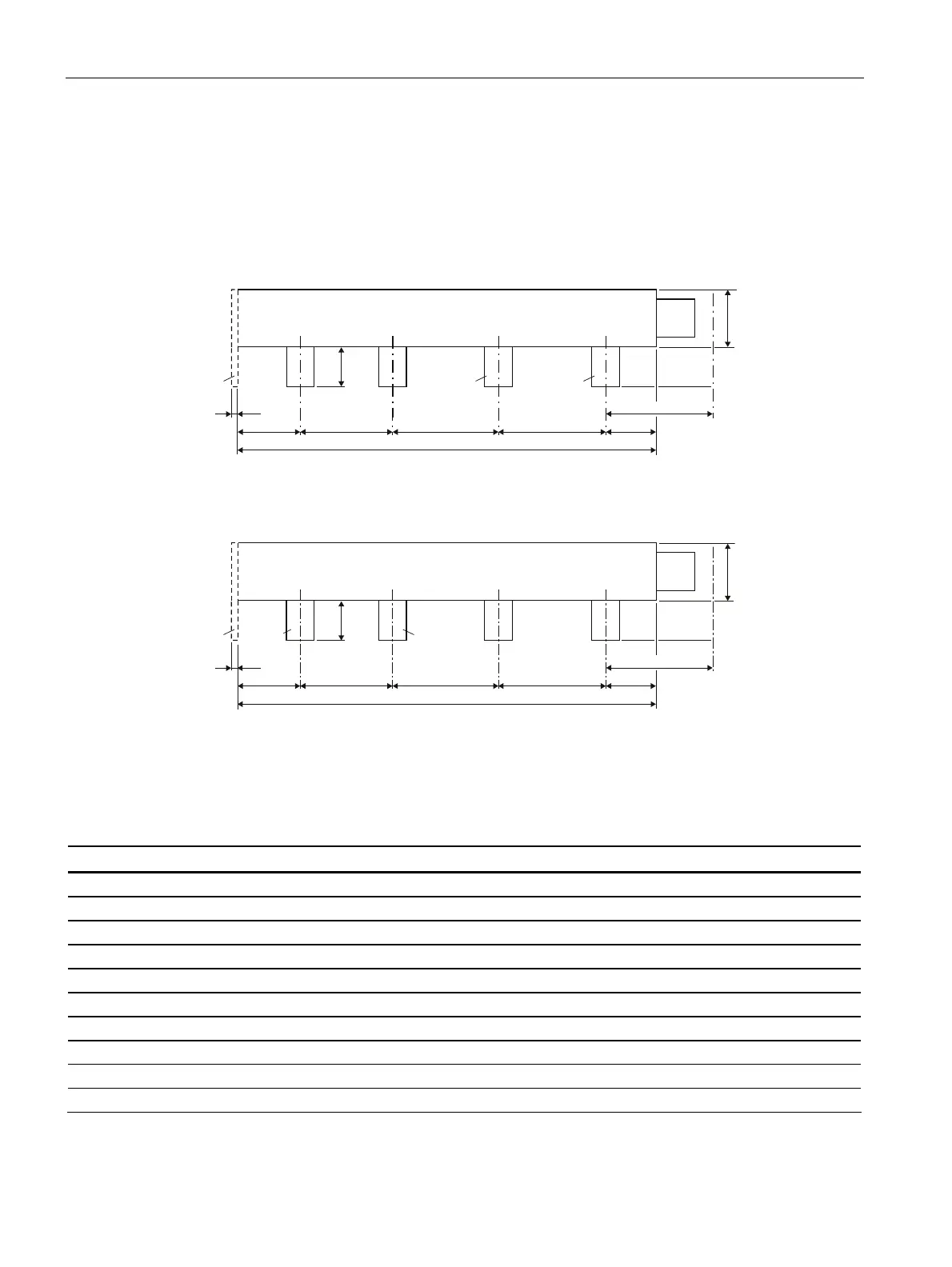

Figure 8-11 LX .....- AS1(+LX-.A)/(+LX -.C)
//
,
D
3(11
E
E
S
S
S
3(
K
K
1)
Reference dimension for configuring = centre of joint block to centre of 1st connection tag.
More detailed information: See Chapter Feeder units (Page 85).
2)
Total length l of the connection unit is the sum of the configured connection tag distances.
Figure 8-12 LX .....- AS1(+LX -.B)/(+LX-.D)
System a b1 b2 h1 h2 p min. p max.
LXA(C)01 255 140 140 137 96.5 115 400
LXA(C)02 255 140 140 137 96.5 115 400
LXA(C)03 255 140 140 162 96.5 135 400
LXA(C)04 255 140 140 162 96.5 135 400
LXA(C)05 255 140 140 207 96.5 135 400
LXA(C)06 255 140 140 287 96.5 155 400
LXA(C)07 255 140 140 287 96.5 155 400
LXA(C)08 315 200 200 439 96.5 275 400
LXA(C)09 315 200 200 599 96.5 275 400
LXA(C)10 315 200 200 599 96.5 275 400
