Siemens SIVACON 8PS - Straight Trunking Units with Tap-Off Points and Configurable Fire Barrier

Product selection
4.3 Selection tables
SIVACON 8PS - Configuring with LX system
Configuration Manual, 10/2011, A5E02194899-02
35

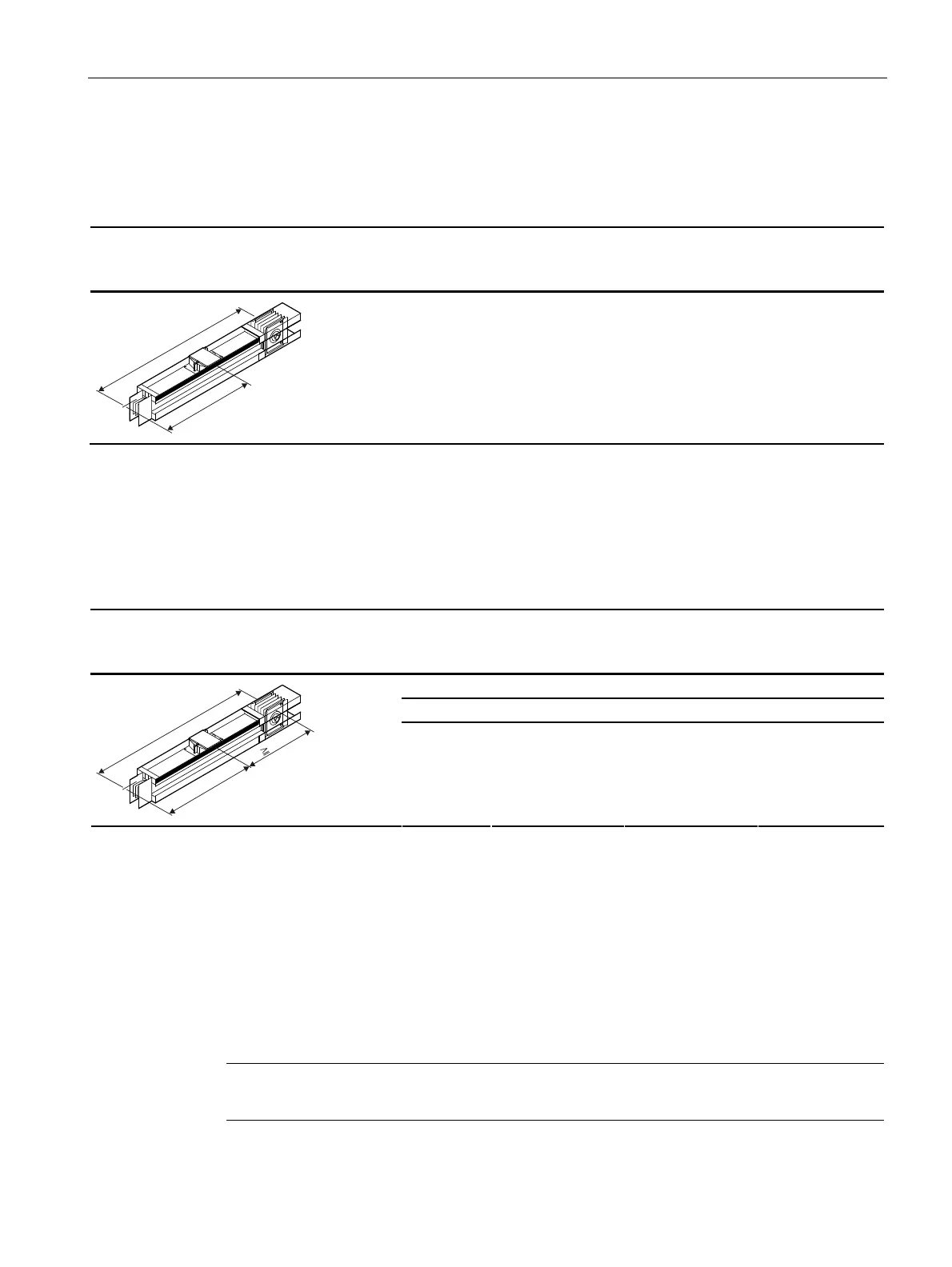

4.3.1.3 Straight trunking units with tap-off points and configurable fire barrier
Standard length with 1 tap-off point
Length L
[m]
Position of the tap-
off point AD
[m]
Type
1)
Type suffix fire
barrier
2)
/
$'
3.0 2.17 LX.....-3-1AD +LX.....-S120-X*
1)
See type code 1
2)
See type code 2
Optional length with 1 tap-off point selectable
Length W
[m]
Position of the tap-
off point AD
[m]
Type
1)
Type suffix fire
barrier
2)
1.5…2.0 0.67…1.67 LX.....-1W*-1AD* +LX.....-S120-X*
2.01…2.5 0.67…217 LX.....-2W*-1AD* +LX.....-S120-X*
:
$'

2.51…3.0 0.67…2.67 LX.....-3W*-1AD* +LX.....-S120-X*
1)
See type code 1
2)
See type code 2
*
Complete type with relevant dimensions (e.g. LX....-1W1.70-1AD0.8)
Example types
LXA0141-3-1AD
LXA0141-3W2.80-1AD1.3
Note
Positioning of the fire barrier, see Configuration (Page 79)
