Product selection
4.3 Selection tables
SIVACON 8PS - Configuring with LX system
Configuration Manual, 10/2011, A5E02194899-02
37

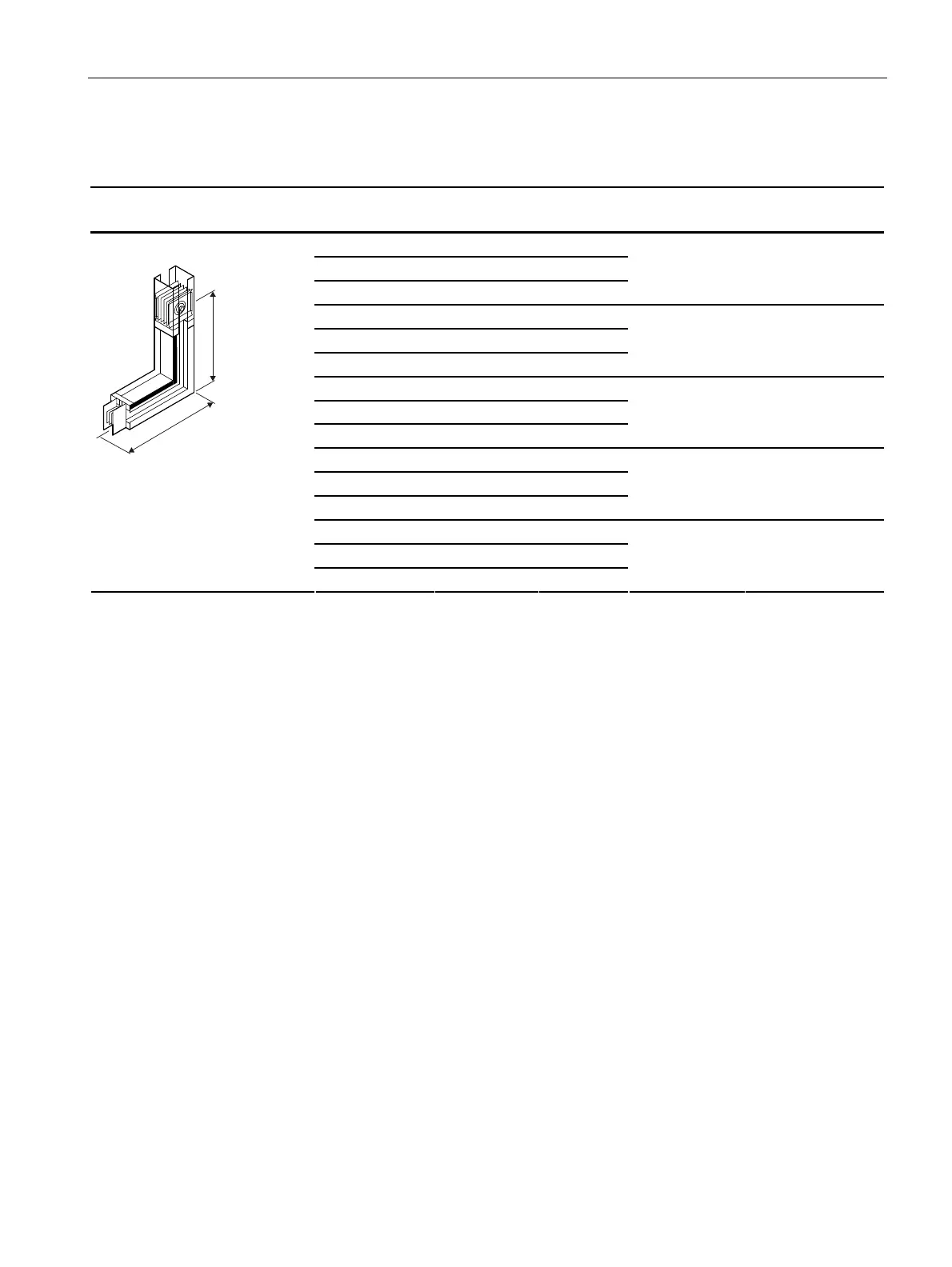

Knee front
System Length X
[m]
Length Y
[m]
Type
1)
Type suffix fire
barrier
2)
LX.01 to LX.04 0.35 0.35
LX.05 to LX.07 0.5 0.5
LX.08 to LX.10 0.8 0.8
LX… ..-LV
LX.01 to LX.04 0.35 0.71…1.2
4)
LX.05 to LX.07 0.5 0.86-1.3
4)
LX.08 to LX.10 0.8 1.16-1.6
4)
LX…..-LV-YB* +LX…..-S120-X*
LX.01 to LX.04 0.35 0.36
5)
-0.7
LX.05 to LX.07 0.5 0.51
5)
-0.85
LX.08 to LX.10 0.8 0.81
5)
-1.15
LX…..-LV-Y*
LX.01 to LX.04 0.71…1.2
3)
0.35
LX.05 to LX.07 0.86…1.3
3)
0.5
LX.08 to LX.10 1.16…1.6
3)
0.8
LX…..-LV-XB* +LX…..-S120-X*
LX.01 to LX.04 0.36
5)
...0.7 0.35
LX.05 to LX.07 0.51
5)
…0.85 0.5
;
<
LX.08 to LX.10 0.81
5)
…1.15 0.8
LX…..-LV-X*
1)
See type code 1
2)
See type code 2
3)
Fire barrier possible on X dimension
4)
Fire barrier possible on Y dimension
5)
Shorter lengths on request
*
Complete type with relevant dimensions (e.g. LX....-LV-YB0.80)
