Configuration
6.2 Configuring the busbar run layout
SIVACON 8PS - Configuring with LX system
Configuration Manual, 10/2011, A5E02194899-02
111

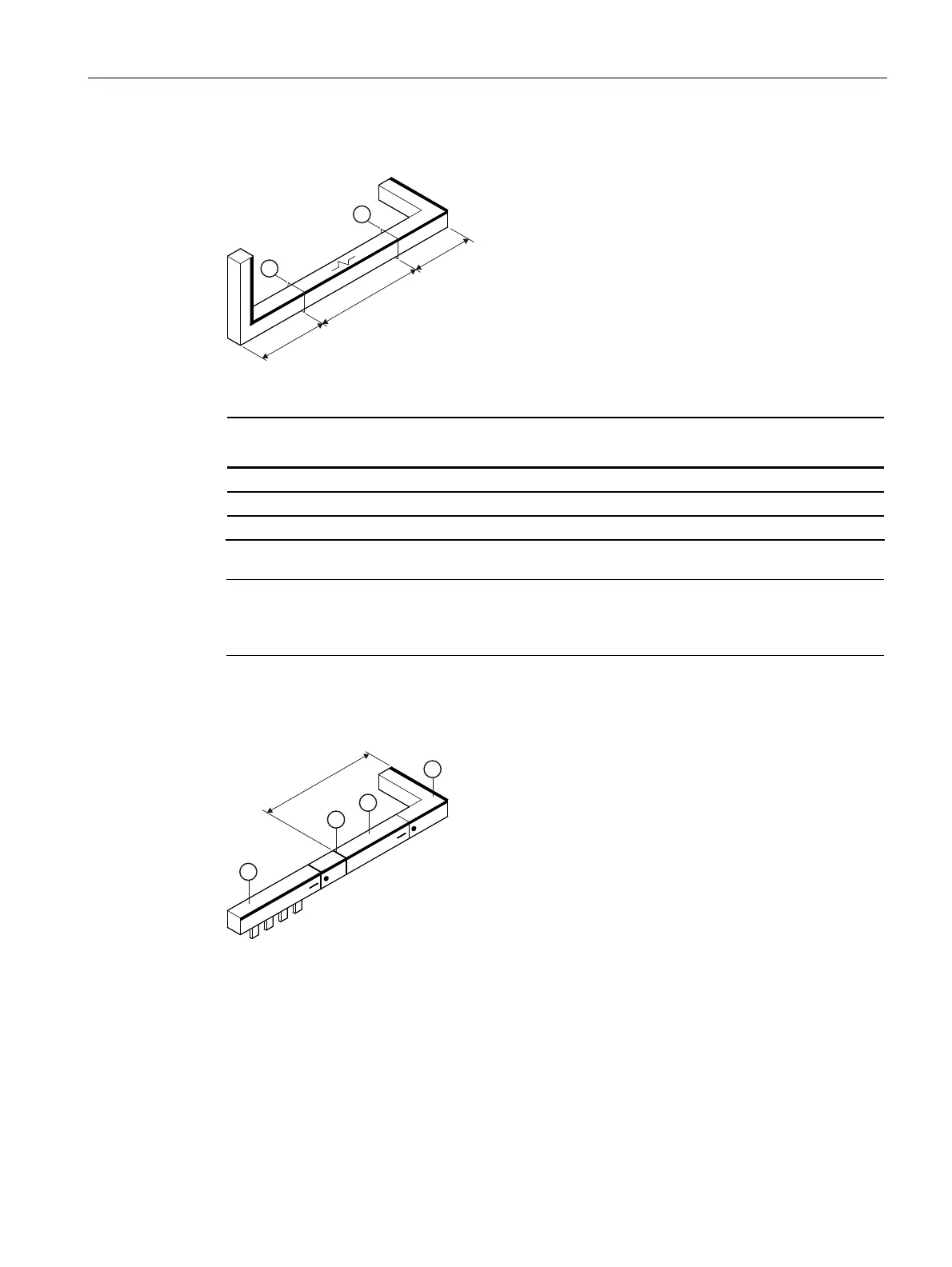

Configuration between 2 junction units
/
/
/
① Fixed point
Run length L
[m]
Number of fixed points Number of expansion
compensation units
≤ 30 0 0
≤ 60 2 1
≤ 90 3 2
Note
A maximum permissible run length of 30 m applies for horizontal run layouts with expansion
compensation between two fixed points.
Configuration between junction unit and universal busbar connection unit
/
① Junction unit
② Fixed point (here: LX-BHF)
③ Universal busbar connection unit (AS)
④ Last trunking unit before the universal busbar connection unit
L ≤ 15 m
