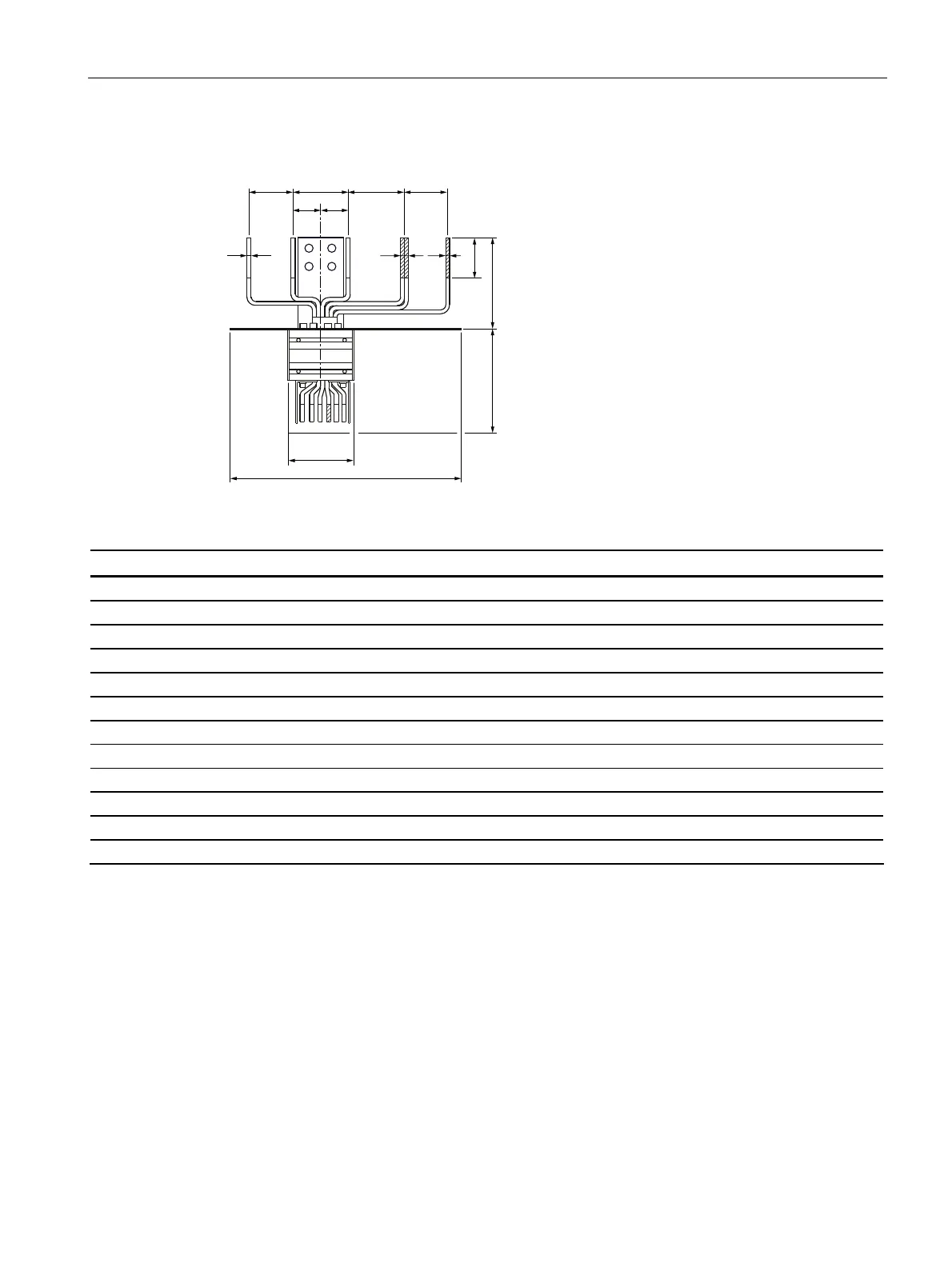

Dimension drawings
8.3 Feeder units
SIVACON 8PS - Configuring with LX system
Configuration Manual, 10/2011, A5E02194899-02
181
LX.0162 to LX.1062
O
N
P
/
K
H
I
J
L
M
G
/
/
1
T
Q
169B
3(
FA, FL.
Type d e f g h
1)
i
1)
j
2)
k
3)
l m n q
LXA(C)0161-FA(FL.) 100 120 123.5 96.5 6 12 6 85 200 230 145 520
LXA(C)0261-FA(FL.) 100 120 124.5 95.5 8 16 8 85 200 230 145 520
LXA(C)0361-FA(FL.) 100 120 123.5 96.5 6 12 6 85 200 230 145 520
LXA(C)0461-FA(FL.) 100 120 124.5 95.5 8 16 8 85 200 230 145 520
LXC0561-FA(FL.) 100 120 123.5 96.5 6 12 6 85 200 230 145 520
LXA0561-FA(FL.) 100 120 124.5 95.5 8 16 8 85 200 230 145 520
LXA(C)0661-FA(FL.) 100 120 123.5 96.5 6 12 6 85 200 230 145 520
LXA(C)0761-FA(FL.) 100 120 124.5 95.5 8 16 8 85 200 230 145 520
LXA(C)0861-FA(FL.) 100 120 124.5 95.5 8 16 8 85 200 230 145 520
LXA(C)0961-FA(FL.) 100 120 123.5 96.5 6 12 6 85 200 230 145 520
LXA1061-FA(FL.) 100 120 124.5 95.5 8 16 8 85 200 230 145 520
LXC1061-FA(FL.)
4)
- - - - - - - - - - - -
Dimensioning of the connections for copper-plating see Distribution board connection units
(Page 182)
1)
The PE connection for the enclosure (broken line in the figure) has a cross-section of
6 mm
2)
PE connection for the PE busbar isolated from the enclosure (clean earth; (PE))
3)
Termination surface, not isolated
4)
On request
